13
Connections | Connecting the outputs
Assembly and connection manual | Agrónic 2500

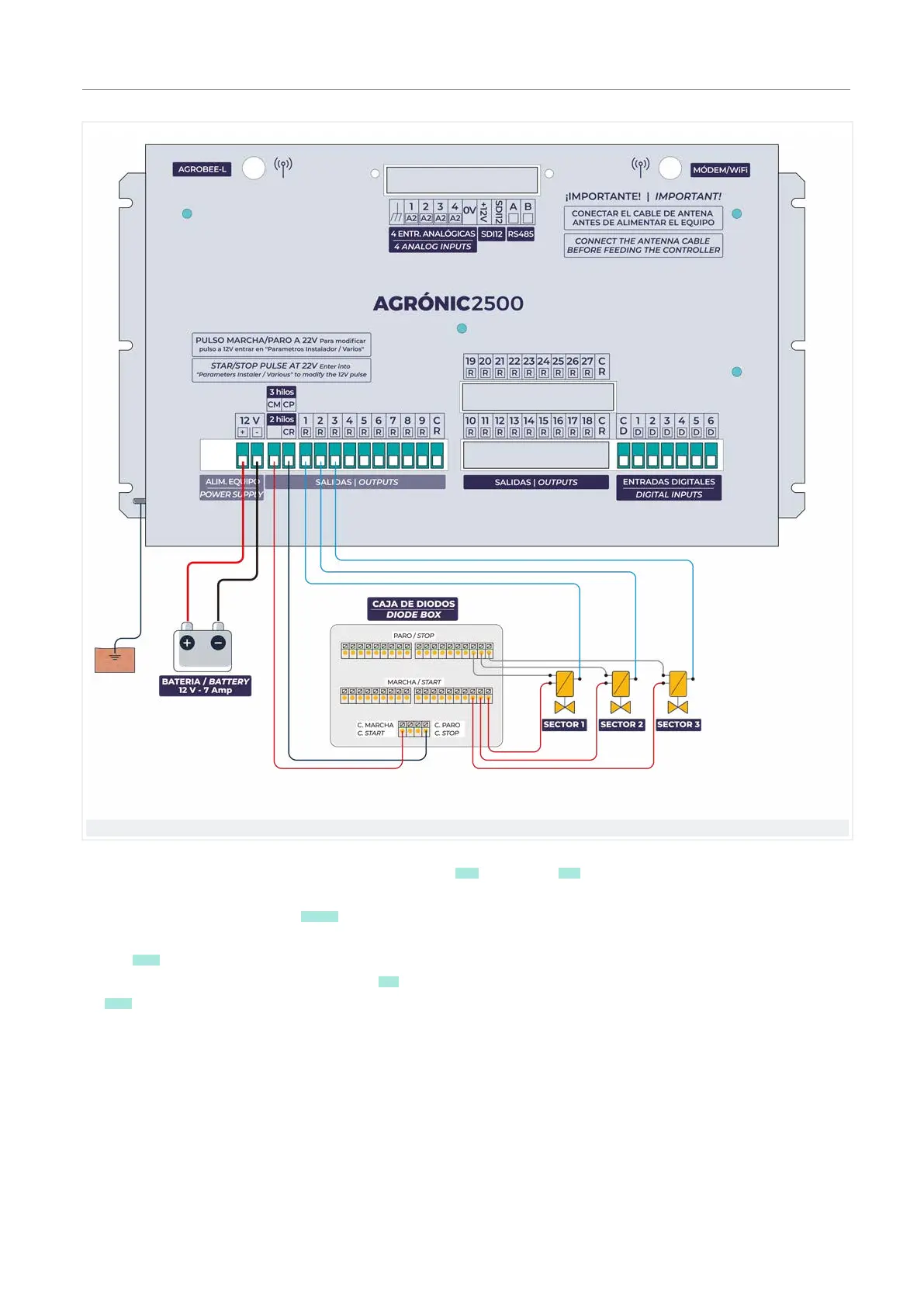

3-Wire latch connections
This solenoid valve model has two commons; the one
for starting (normally red) will be brought to the diode
box, to one of the terminals marked Start ; The stop
common (normally black) is connected to a terminal
marked Stop; the other cable (normally white) is
connected to the corresponding output between R1
and R27 .
The CM start and the CP stop commons must also be
connected on the unit and from the diode box. If the
valve order is the opposite of the desired order, reverse
the Common Start and Common Stop cables.
