Assembly and connection manual | Agrónic 2500

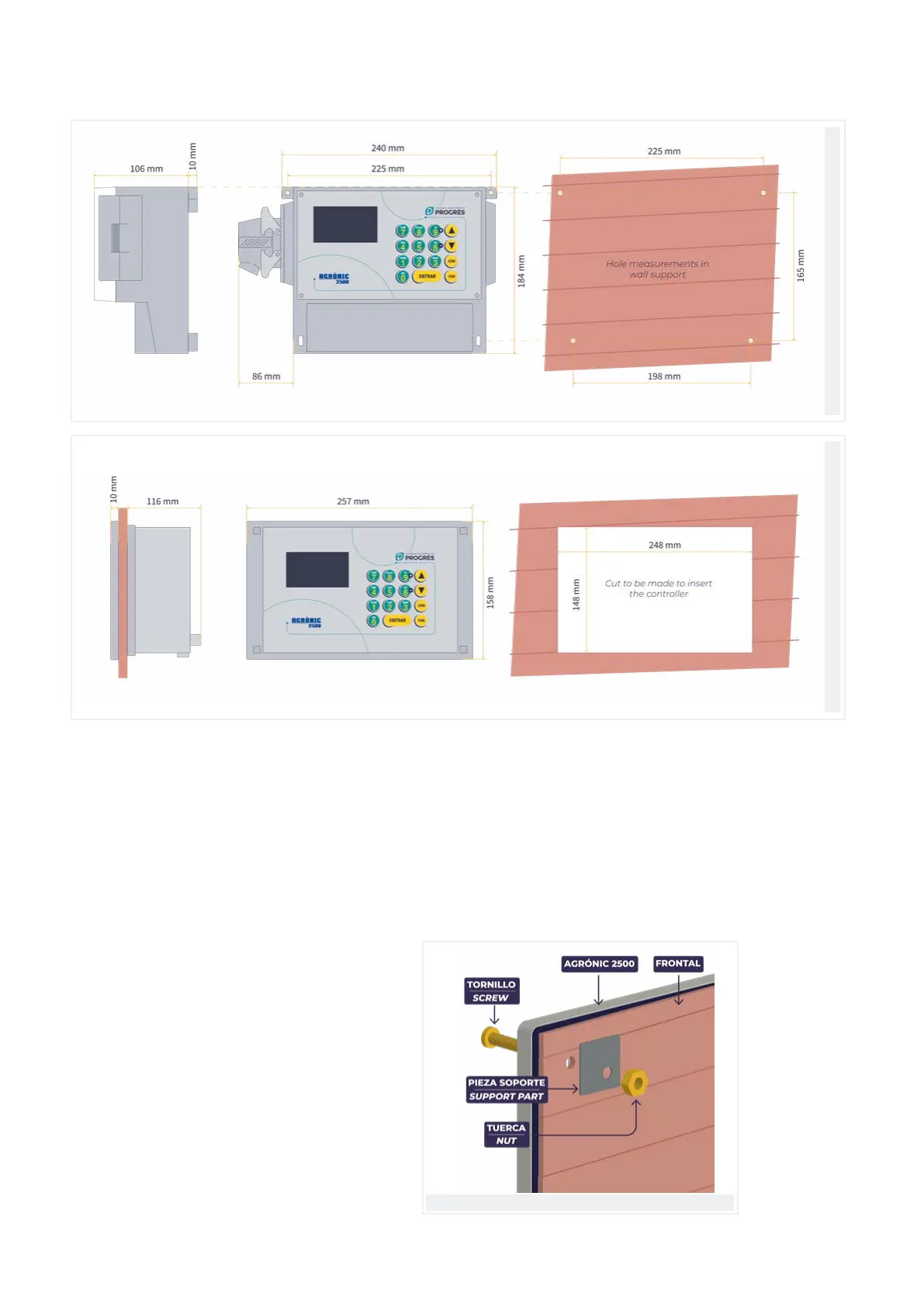

1 DIMENSIONS
Box formatBuilt-in format
Where to install the Agrónic
Install the Agrónic at the correct height and position
for good handling. Avoid direct sunlight, humidity,
dust and vibrations as much as possible.
Avoid being close to elements that generate interfer-
ence and may aect correct operation.
In the box format, the unit is housed in a hermetical-
ly-sealed box (IP65) with a transparent front cover
for the keypad/display and an opaque cover for
housing the connections. The 27-output model uses a
connector attached to the le side of the box.
To maintain the seal, the covers must always be closed
and the cable glands included with the unit installed in
the cable outputs.
Install the unit on the wall with the two perforated
pieces on the top corners and two on the bottom,
removing the connection cover. The fastening
elements can be 4 self-tapping screws (3.5 x 38 mm –
DIN 7981) and 4 6x30 mm plugs (SX 6x30).
In the built-in format, a hole must be drilled in the front
of the cabinet or desk according to the measurements
indicated in the previous drawing and held in place by
the screws on the corners, using the four pieces that
are supplied with the unit (4 M3 x 12 mm screws (DIN
84), 4 M3 nuts (DIN 934) and 4 metal sheets of 20 x 20
x 1 mm).
Assembly
