Connection locations | Built-in format
Assembly and connection manual | Agrónic 2500

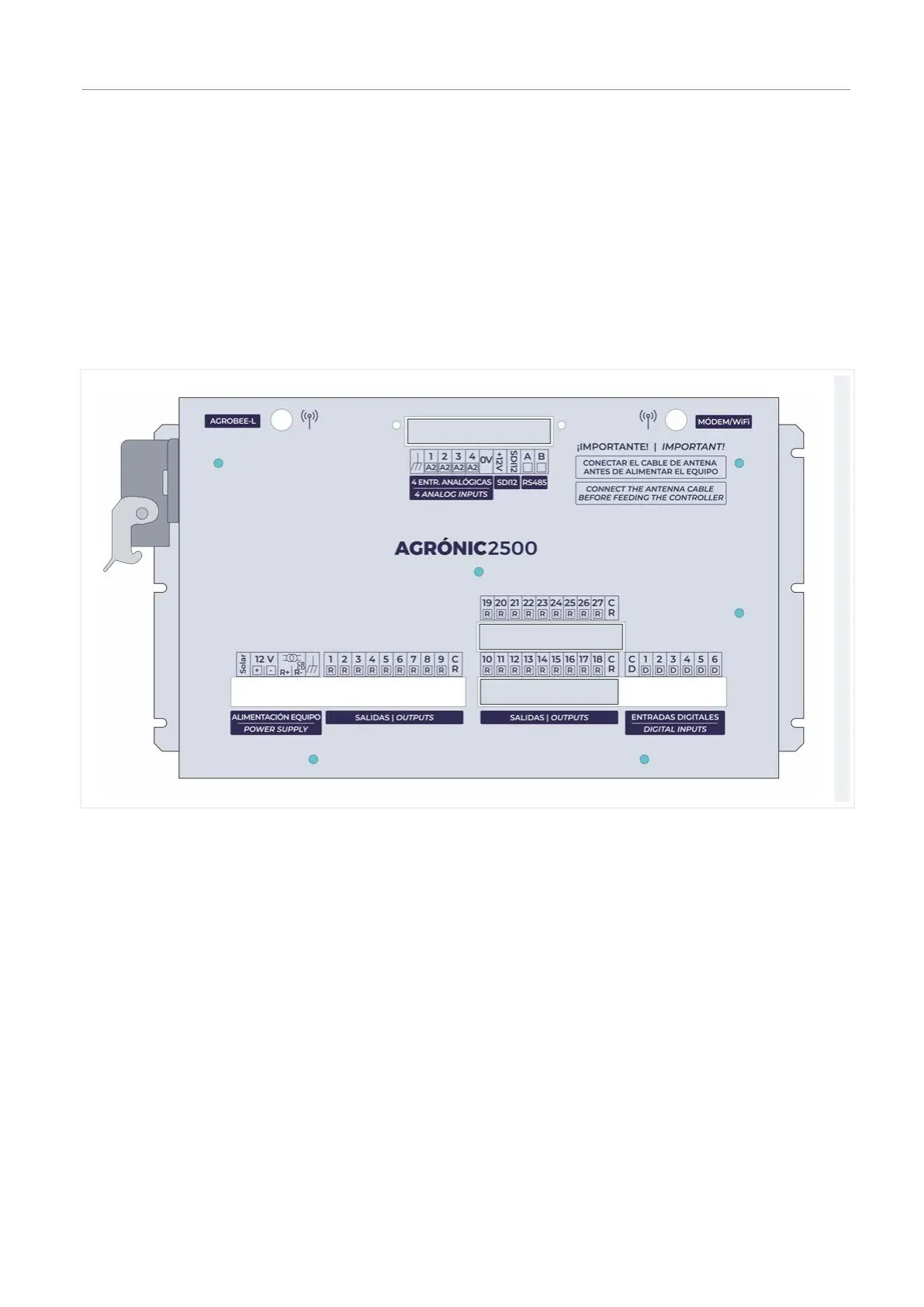

3.2. BUILT-IN FORMAT
To connect the built-in model, access the back park
located inside the desk or cabinet. The connections for
the power supply, inputs and outputs on the 9-, 18- or
27-input models can be found here.
When options are installed, there may also be connec-
tors for the antennas of the AgroBee-L, the modem,
WiFi or radio link option; in addition to the SDI12
expansion option and 4 analog inputs. On the sides,
there may be the USB port connector, the 2 analog
input and the 5 digital input options.
Built-in format
