4

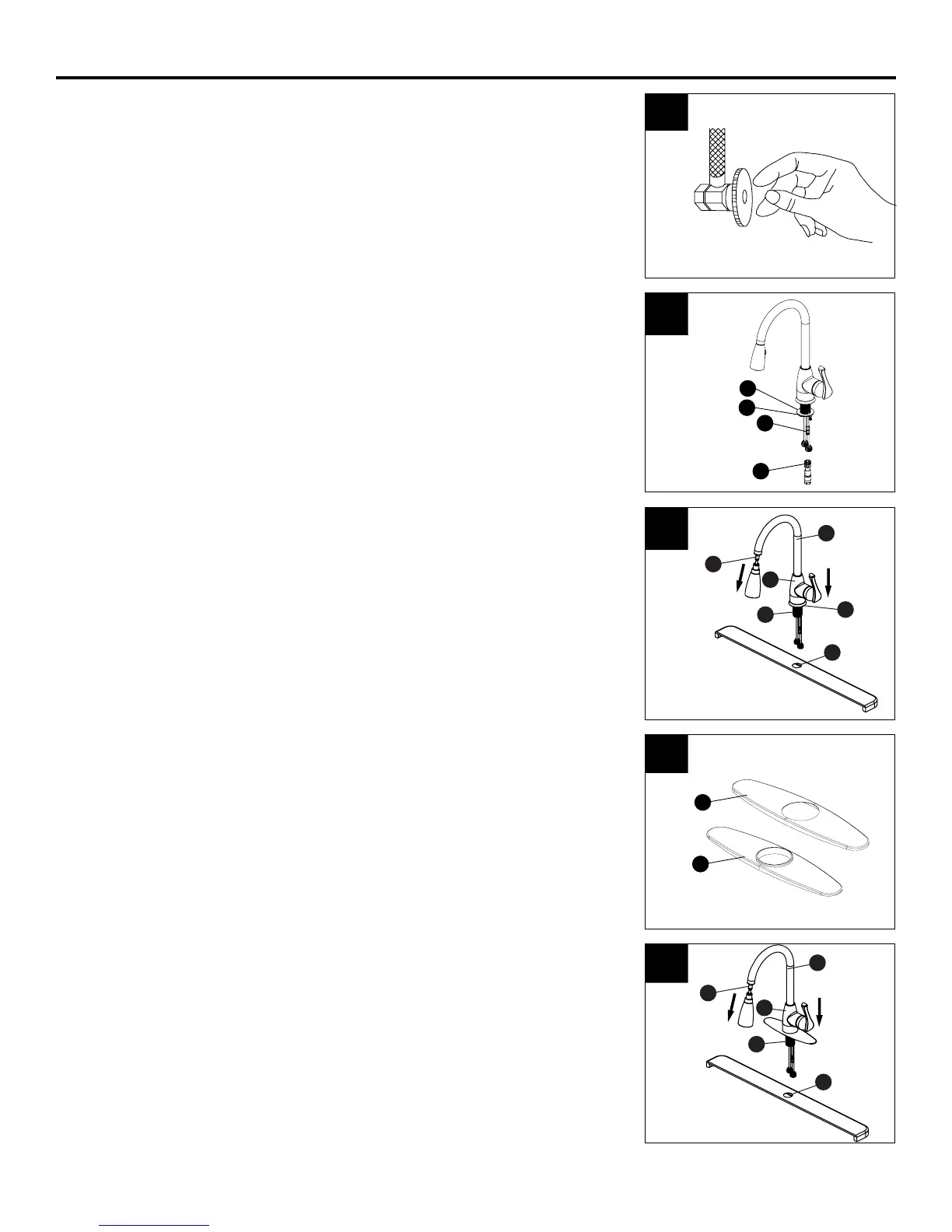

ASSEMBLY INSTRUCTIONS
1.
Turn off water at the supply valve at the main water supply, disconnect
the supply lines, and remove old faucet body.
Clean and dry surface area where new faucet will be mounted.
1
2.
Before installation, remove the quick connector (2.1) from the free end of
the hose (2.2) by unscrewing it in a counterclockwise direction. Unscrew
the locking nut (2.3) and remove the metal washer (2.4).
2
3.
Optional Flange Installation
Install faucet with attached ange (3.5). Retract the hose (3.1) up through the
faucet body assembly (A) until the end of the hose (3.1) is ush with the bottom
of the shank (3.2). Do not pull the end of the hose (3.1) past the shank (3.2).
Insert the faucet body assembly (A) through the hole in the sink (3.3). Once
this step is complete continue to step 6.
NOTE: Do not feed the hose (3.1) back through the spout (3.4) until step 7.
3
3.1
3.2
3.4
3.3
A
3.5
4.
Optional Escutcheon Installation
Remove the ange and place the escutcheon with gasket (B and C) on the
bottom of the new faucet body assembly.
4
5.
Retract the hose (5.1) up through the faucet body assembly (A) until the end of
the hose (5.1) is ush with the bottom of the shank (5.2). Do not pull the end of
the hose (5.1) past the past the shank (5.2). Insert the faucet body assembly
(A) through the hole in the sink (5.3).
NOTE: Do not feed the hose (5.1) back through the spout (5.4) until step 7.
5
5.1
5.2
5.4
5.3
A
2.1
2.2
2.3
2.4
B
C
