STEP 5 – DISCONNECTION
Ensure the 240V mains switch is turned off and the charger is disconnected from the 240V
mains power.
Battery out of vehicle
Remove the BLACK lead (battery clip) from the battery.
Remove the RED lead (battery clip) from battery.
Battery in vehicle
Remove the chassis connection.
Remove the battery terminal connection.

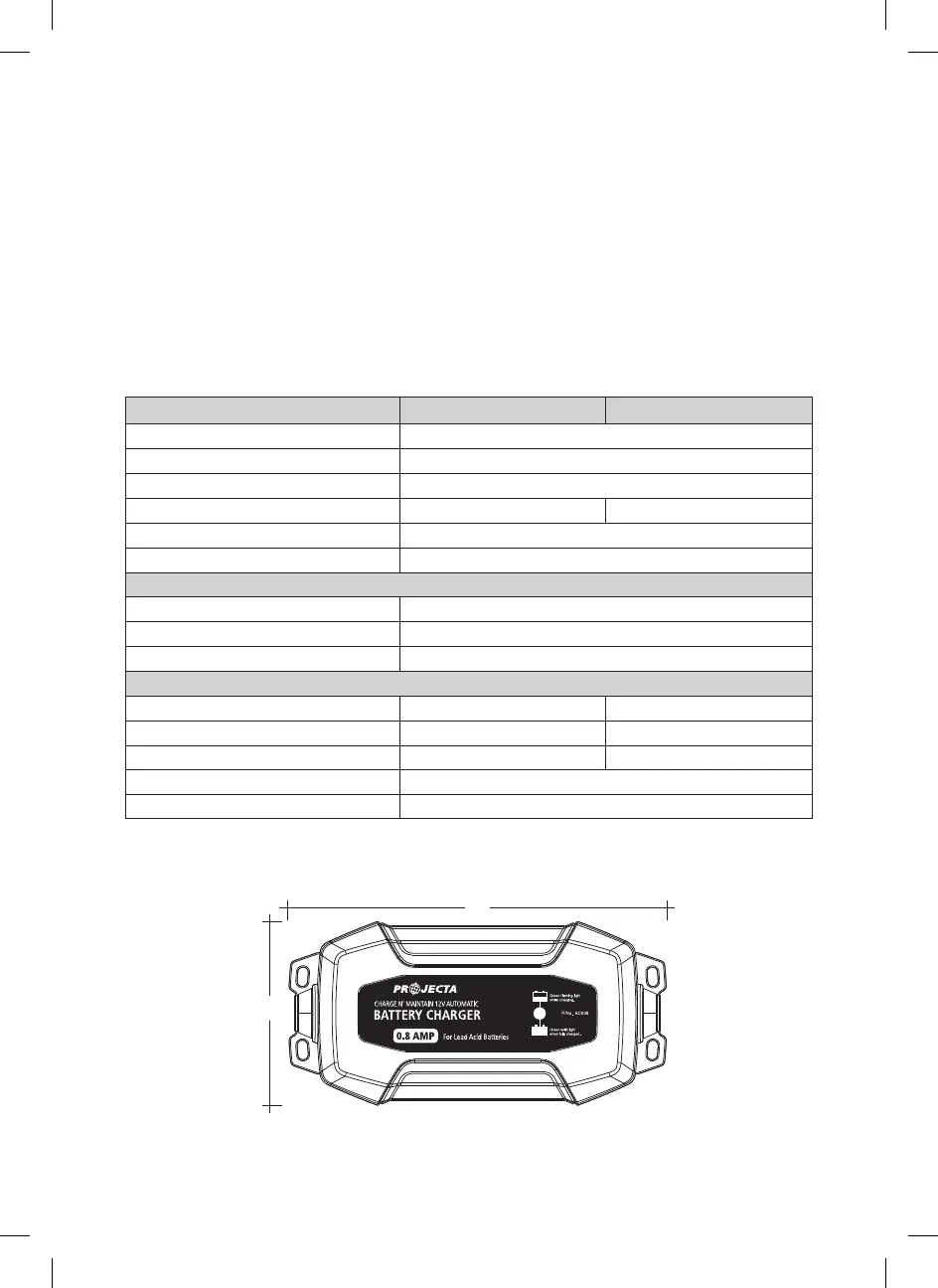

SPECIFICATIONS
Part No. AC008 AC015
Input (nominal) 240VAC, 50Hz
Input Current 0.4A
Output Voltage 12V
Output Current 0.8A 1.5A
Minimum Start Voltage 2.0V
Back Drain 1mA
Charge Control
Bulk Set current to 14.4V
Absorption Constant voltage 14.4V
Float 13.5V
Battery Range Maintenance
Automotive 100–350CCA 200–650CCA
Marine 150–400MCA 250–700MCA
Lithium (LiFePO
4
) 1–8Ah 1–15Ah
Size (mm) 150 x 45 x 70
Weight 0.34Kg
70
150
