16
5.2 LCD Monitor (PM300-BTJ only)
5.2.1 LCD Monitor Symbol Explanation
No. DESCRIPTION COMMENTS
1 Water level 0%-25%-50%-75%-100%
Water Tank 1 EMPTY Flashing, the water is less than the recommended level
Water Tank 2
Water Tank 3
Water Tank 4 FULL Flashing, the gray water or waste water is more than the alarm level
2 Working Mode MAINS AC mains status
CHARGE ONLY Battery charger only
3 Power Status of DC-Load switch in system: on / off
BATTERY DC loads are powered by battery
4 Water Pump Pump 1 is ON
Pump 1 is OFF
5 Alarm Error Code Overload alarm
Over temperature alarm
System error code. Refer to the error codes on page 20
6 VCR connection Voltage charging relay (VCR) is connected
Voltage charging relay (VCR) is disconnected
7 Output power Voltage of system output
Current of system output
Table 8 Symbol Explanation
Charging state
Pump/Up switch
Hot Water Service/Back button
Alarm error code
Water pump
Solar charge
Power Source
Water tank 4
Water tank 3
Water tank 2
Water tank 1
Date
House Battery:Type/Capacity
House Battery: Voltage/Current/Time to go
House Battery SOC (State of Charge)
Voltage of vehicle battery
VCR connection
Dim/Enter/Setting switch
Time
PWR /Down Switch
Bluetooth
Temperature
Output power
Load
ON
!

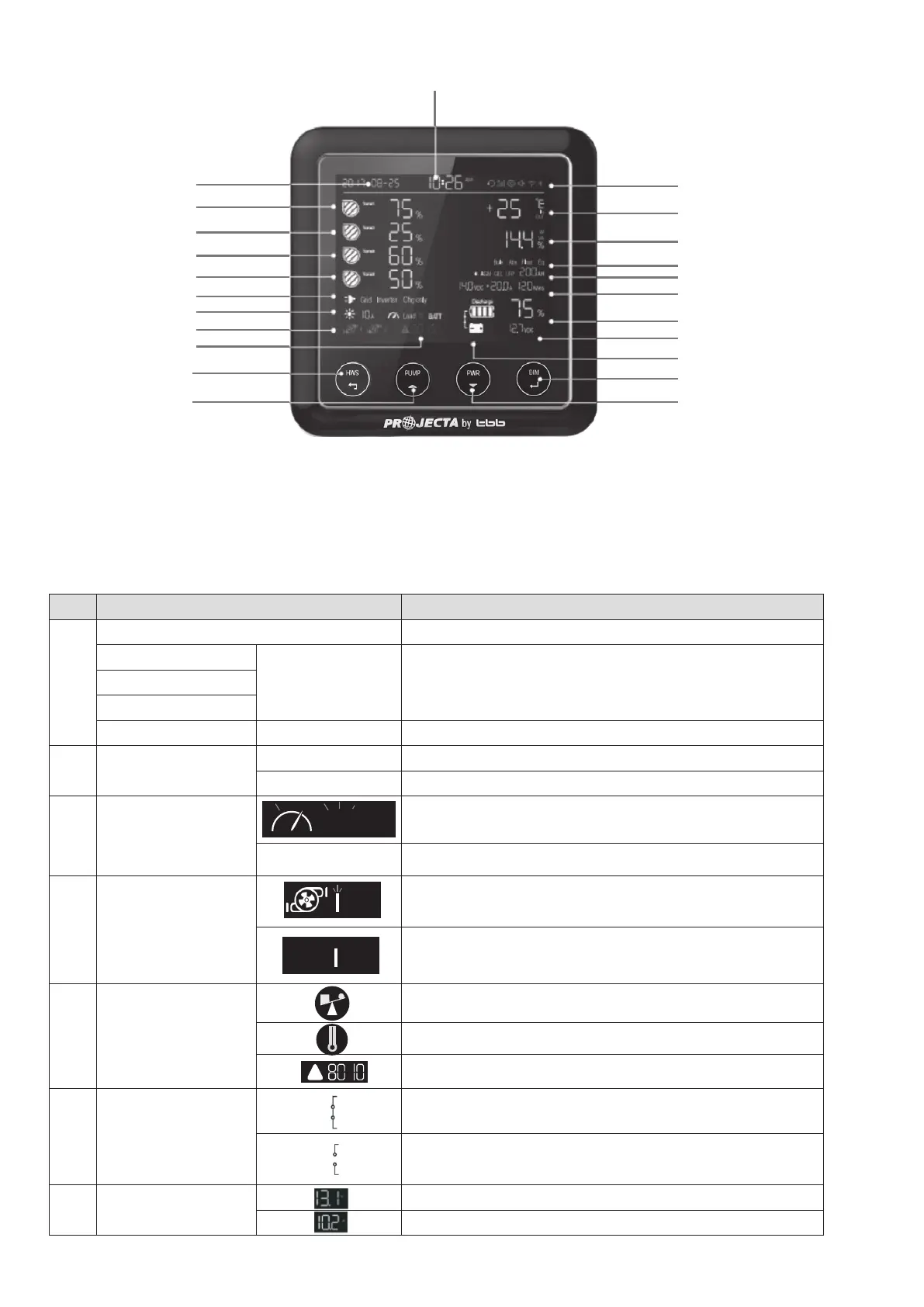

Figure 23 An overview of monitor
The PMLCD-BTJ monitor can be paired to a smart phone via the smart device app. This app will display the battery parameters, water tank
levels, allow pump control and power isolation. Refer to section 6.3 for the Bluetooth pairing procedure.
