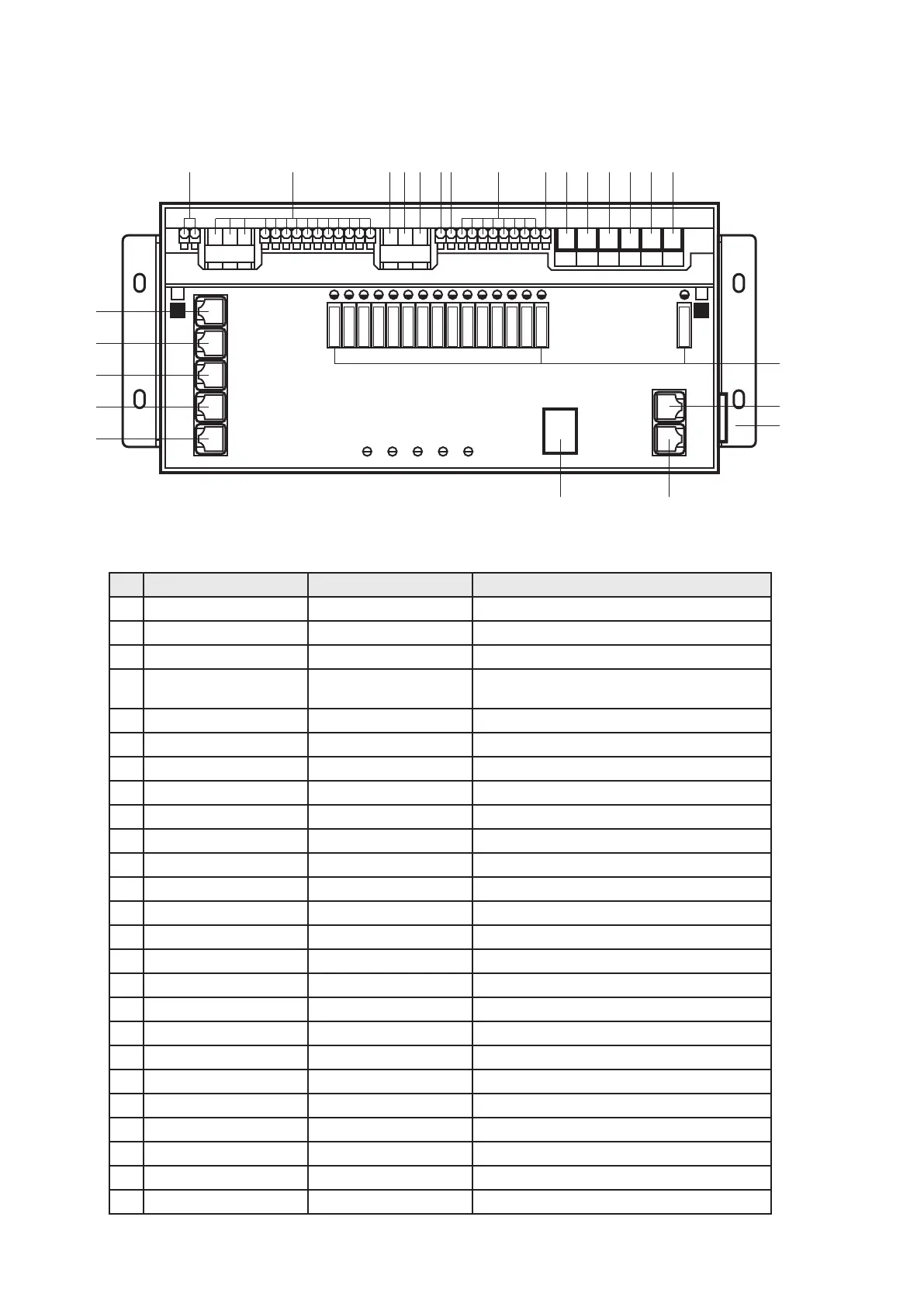

Figure 8 Front panel of PM335J Transformer Unit
Table 3 Categorised outputs
N
O
LABEL DEFINITION DESCRIPTION
1 AC Mains AC input port Computer/IEC style plug socket
2 Temp Sensor Comm port Temperature Sensor input
3 LCD Display Comm port Connect to Monitor
4 Power switch Charger and house battery
switch
Manual battery switch
5 Fresh water tank 1 Connect to fresh water tank 1
6 Fresh water tank 2 Connect to fresh water tank 2
7 Tap water tank 3 Connect to tap water tank
8 Waste water tank 4 Connect to waste water tank
9 House Sensor For temp compensation Connect to house battery
10 Solar+ Solar input Connect to solar panel + terminal
11 Solar- Solar input Connect to solar panel - terminal
12 Vehicle Bat+ Vehicle battery+ Connect to vehicle battery+ (<20Vdc)
13 House Bat+ House battery+ Connect to house battery+ (<20Vdc)
14 Vehicle Bat- Vehicle battery- Connect to vehicle battery-
15 House Bat- House battery- Connect to house battery-
16 L1+ Always ON Connect to permanent +12 Volts
17 L2+ ~ L9+ Connect to isolating +12 Volts
18 L10+ HWS (Hot Water System) Connect to HWS+
19 L11+ Water pump Connect to water pump+
20 L12+ Slide out Connect to slide out+
21 L13+ Awning Connect to awning+
22 L14+ Spare/CF (Fridge) Connect to CF+
23 L1- ~ L14- Connect to DC load-
24 Remote ISO Switch Terminal block Connect to external switch (optional)
25 Fuse Fuse and fuse failure indication
