5
1.1 Features (PM300-BTJ and PM335J-NODE)
• Smart battery charger 12V 35A (30A for charging current)
• Multi stage adaptive charging algorithm
• Active Power Factor Correction (PFC) charging
• Temperature compensation charging
• Voltage compensation charging
• Solar charge controller (MPPT), 30A
• 14 built in fused outputs
• Charging from Alternator at 12V 60A - 60A continuously, 100A 30mins
• Low battery voltage protection
• Built-in battery switch to isolate the battery when in storage
• Built-in shunt for precise battery measurement
• 1 water pump control with up to 4 connections for water sensors
• Thermal control fan
• Spring terminal and screw terminal
• T-bus compatible

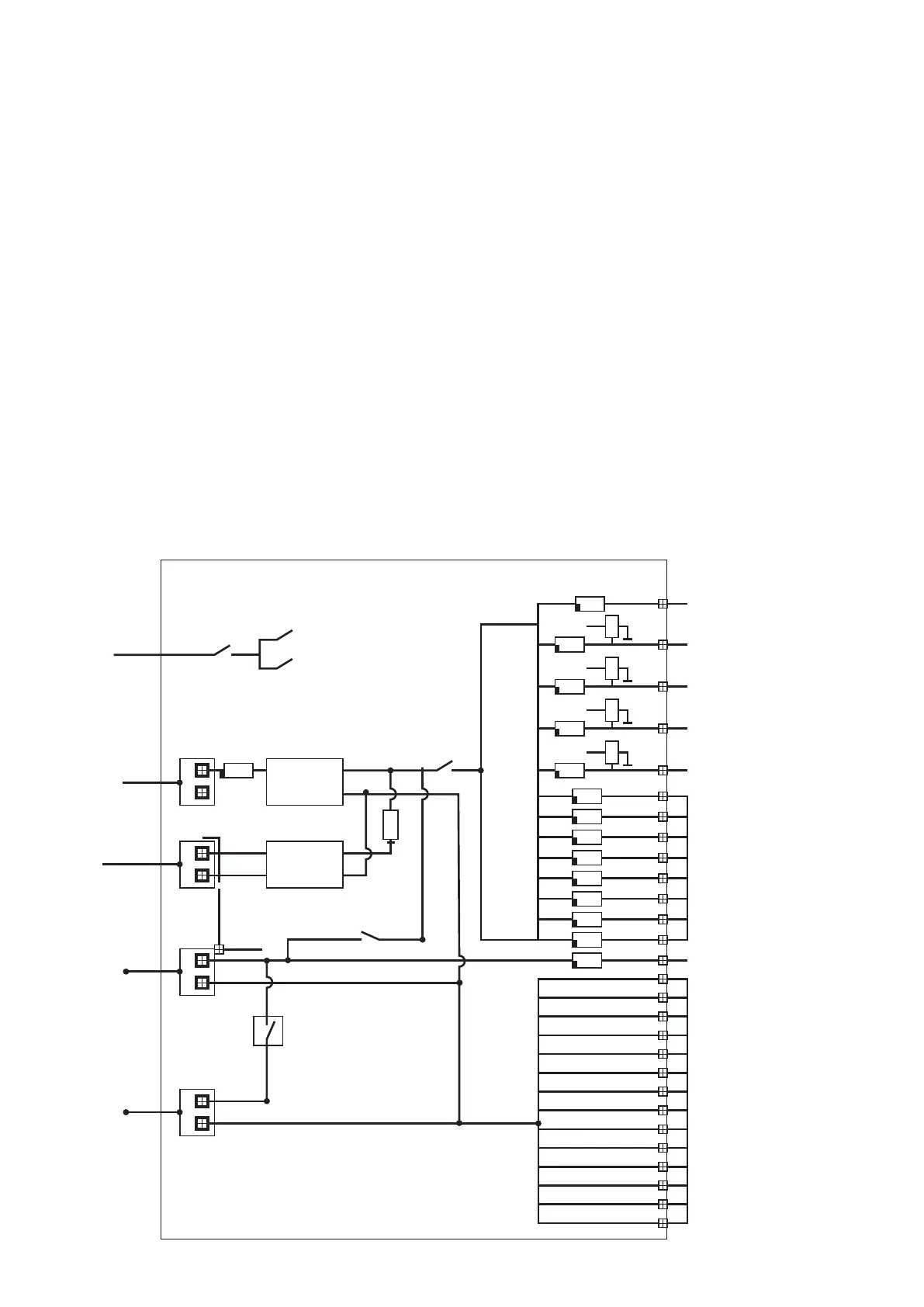

Figure 2 System Schematic
Fridge (CF)/SPARE
LOAD13 for Slide Out
LOAD12 for Awning
LOAD11 for PUMP
LOAD10 for Hot Water
Service (HWS)
F7
15A
L14+
K6
15A
F13
L13+
15A
K5
F12
L12+
10A
K4
F11
L11+
10A
K3
F10
L10+
LOAD 2 to 9 – 12 Volts
LOAD1 Always ON
-veLoads
10A
F9
L9+
10A
F8
L8+
10A
F7
L7+
10A
F6
L6+
10A
F5
L5+
10A
F4
L4+
10A
F3
L3+
10A
F2
L2+
10A
F1
L1+
L13-
L12-
L11-
L10-
L9-
L8-
L7-
L6-
L5-
L4-
L3-
L2-
L14-
L1-
K3
K3
Battery switch
PWR switch
Power
switch
PWR switch
35A
F1
+
-
MPPT
+
-
+
-
AC/DC
+
-
+
-
+
-
VCR
Battery switch
35A
K1
Solar In
AC In
House
Battery
Vehicle
Battery
Step
