Wall installation

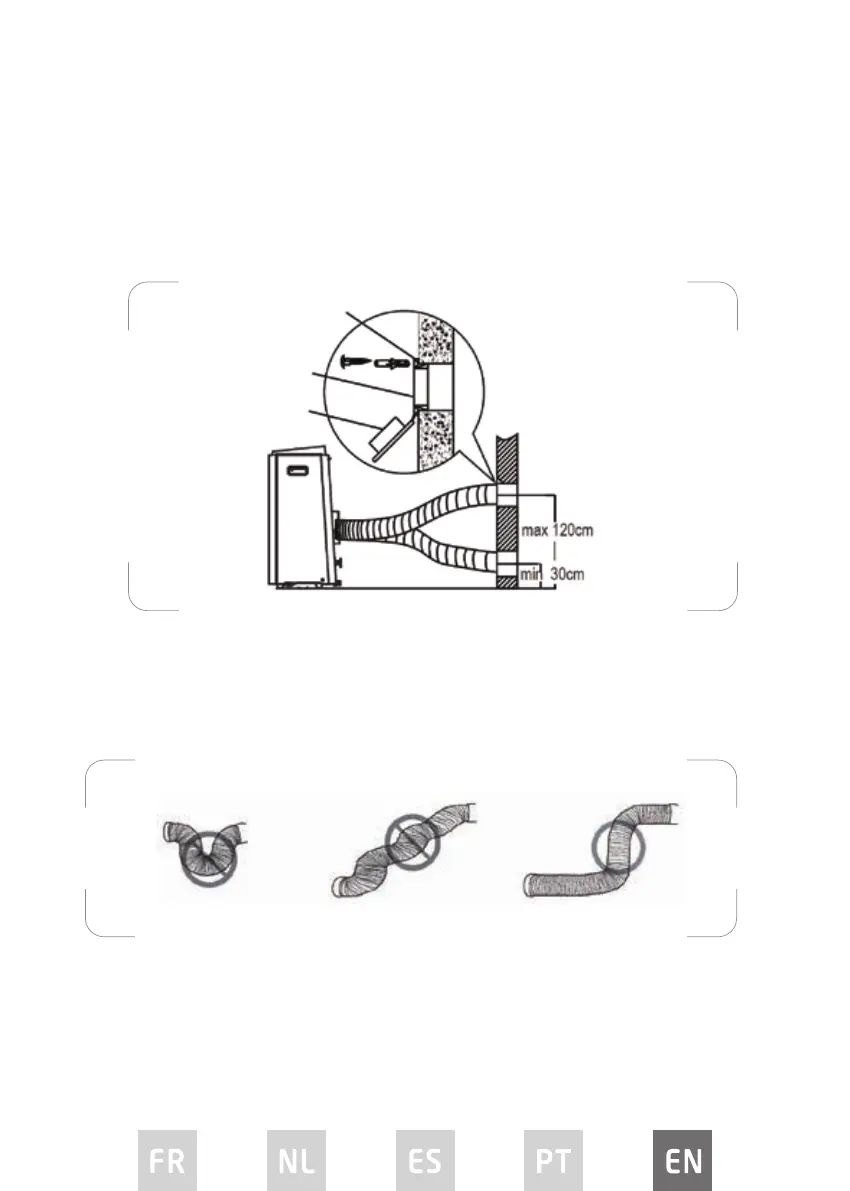

1. Cut a 125mm hole into the wall for the wall exhaust adapter.
2. Secure the wall exhaust adapter to the wall using the four
supplied anchors and screws.
3. Connect the exhaust hose assembly to the wall exhaust adapter.
NOTE: To ensure proper functioning, DO NOT over-extend or bend
the hose. To ensure the exhaust system works properly, make sure
that there is no obstacle around the air outlet of the exhaust hose
(in the range of 500mm).
Anchor position
NOTE: Cover the hole
using the adapter cap
when not in use.
Wall exhaust
adapter
Adapter cap
To Next Page
