Specifications
Supply: 24 VAC ±10%, 50/60 Hz Microprocessor
Power consumption: 5 VA max
Inputs: 1 analog input (Thermistor 10K type3 /
dry contact), 10 bit resolution (1024 segments)
Digital Output: Triac, 10-30 VAC sink, 750 mA
max (resettable fuse), ON/OFF or pulsed,
heat/cool
Analog Output: 0-10 VDC, 40 mA max
(resettable fuse), ON/OFF or pulsed, heat/cool
Screen: LCD 80x130 pixels with back lighting
Interface: Circular capacitive touch pad
Audible feedback: Yes
: Atmel 32 bits, 60 MHz, 256K Bytes
Flash
Communication protocols: Modbus RTU (RS485), up to
127 devices.
Baud rates: 9600, 19200, 38400, 57600, 76800, 115200
Connection: Screw-type terminal blocks (16 AWG max)
and RJ45 modular jack
Dimensions: 82 mm x 126 mm ( 3.23" x 4.96" )
Weight: 0.1 kg (0.22 lb)
Environment: 0-50 deg C (32-122 deg F)
Mounting: Standard electrical box 2" x 4"

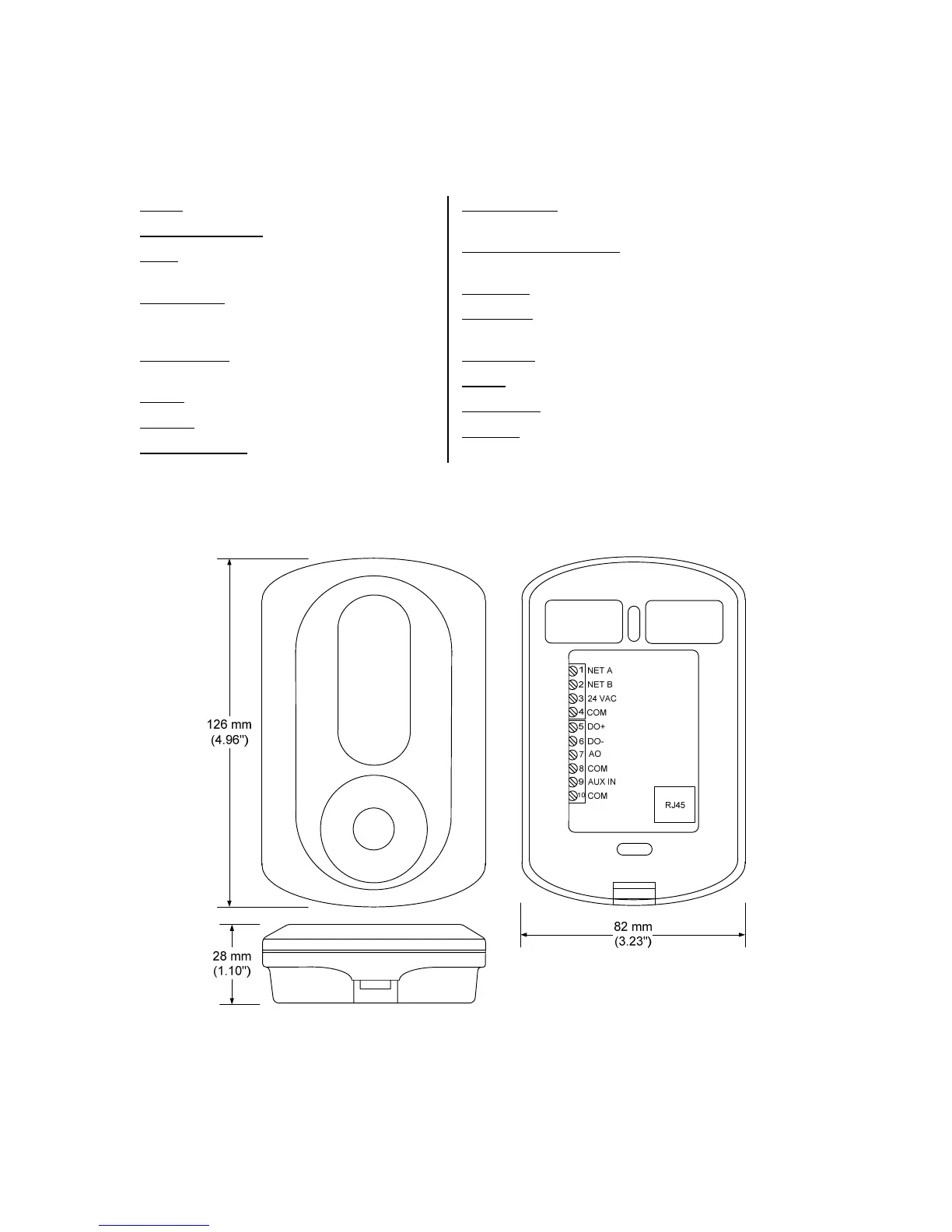

Dimensions
