Typical wiring of the Digital Output
The T1100 opens and closes a triac contact to allow an external source to power
the load.
R
External Load
N
External
24 VAC
5
6
7
8
9
10
DO+
DO-

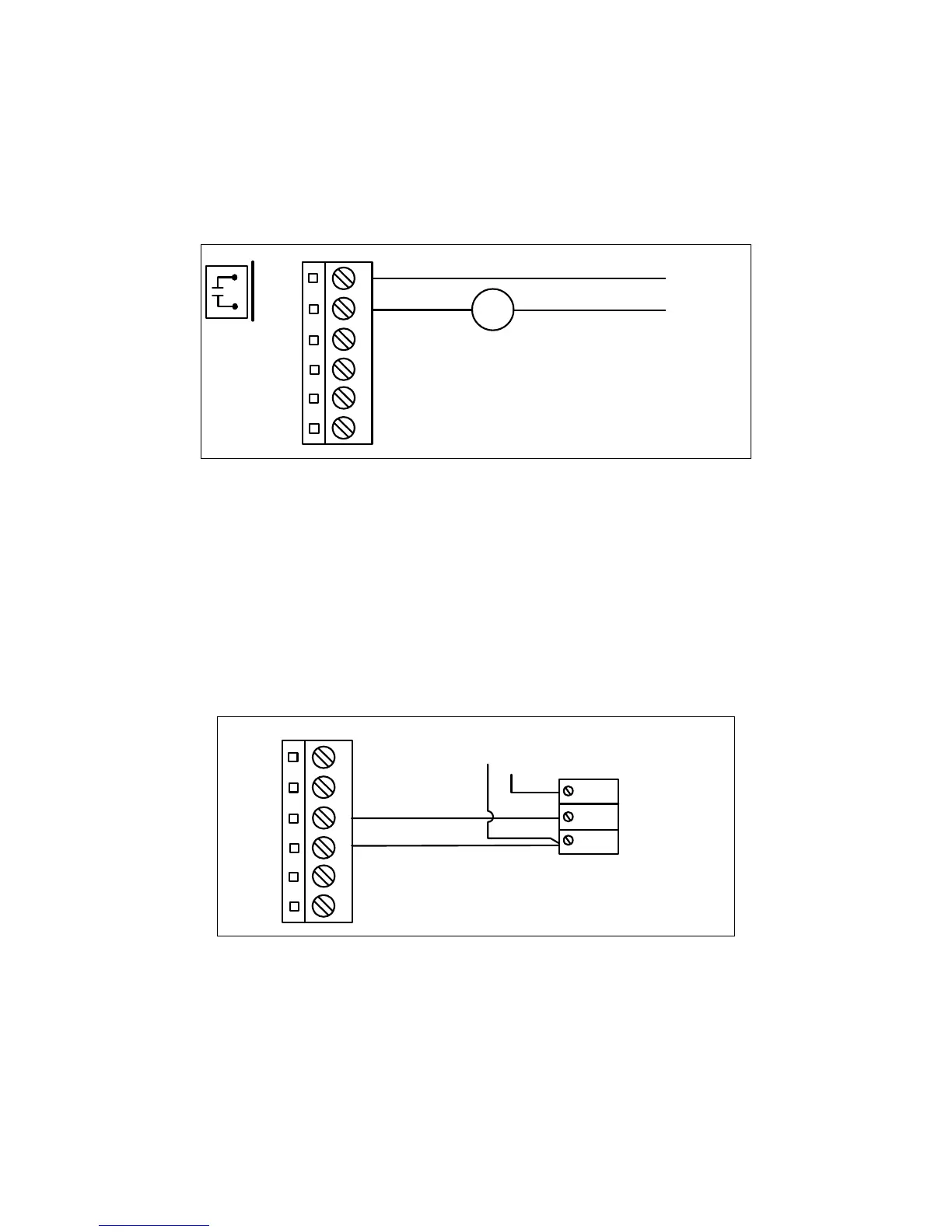

Figure 8: Typical wiring of digital output
Typical Wiring of the Analog Output
The T1100 provides the control signal to the load, which is powered externally or
from the same power source as the T1100.
5
6
7
8
9
10
AO
COM
Com
24 V
0-10v
Controlled
Load
External
24 V
source
N
Figure 9: Typical wiring of analog output
