BACK ENTER
ProMinent
®
OK
ALARM
Pool 750.0mV
7.40pH 85.0F
BACK ENTER
ProMinent
®
OK
ALARM
Pool 750.0mV
7.40pH 85.0F
BACK ENTER
ProMinent
®
OK
ALARM
Pool Oxidant
OFF: Setpoints
BACK ENTER
ProMinent
®
OK
ALARM
Oxidant Pump 3
OFF: Setpoints
BACK ENTER
ProMinent
®
OK
ALARM
Alarms
A B 1 2
BACK ENTER
ProMinent
®
OK
ALARM
ENTER
Oxidant Pump 3
Auto OFF ON
BACK ENTER
ProMinent
®
OK
ALARM
ENT
ENT
ENT
ENT
ENT
ENT
ENT
ENT
ENT
ENT
ER
ER
ER
ER
ER
ER
ER
ER
ER
ER
Pool 750.0mV
7.40pH 85.0F
Alarm Information
Clear (Reset) All Alarms
Changing a Pump/Feeder
Auto to Off - Manual ON
Relays 1 and 3 are factory set as Acid Pump and Oxidant
Pump, using pH Sensor C, and ORP Sensor D, respectively.
They are default in the AUTO mode for ON/OFF control to 7.4
pH and 750mV. They can be set to the on mode for priming or
to the OFF mode to temporarily disable chemical feed.
If the orange ALARM light is ashing, an alarm has activated.
1. Choose the relay you
want to change by
pressing
the button
until the selected
(relay 1 or 3) is
shown.
1. Press
once to
view active alarms.
The LCD screen will
alternately show the
oxidant feeder status
along with any inputs
(letter) or outputs
(numbers) that have
alarmed.
Note: Alarms may have
been corrected and the
alarm just may need to
be acknowledged.
2. Press and hold the
button and the display
will change to show
AUTO ↓OFF ↑ON
while the button is
held down.
1. When the alarm light
is ashing and you
just want to
acknowlege and clear
the alarms, press
then twice.
[Alarm Status Screen]
[Alarm Menus]
[Clear Alarms]
3. While holding the
button, pressing one
of the three other
buttons , or
will put the output in
that respective mode.
1
1
2
3
3
4
1

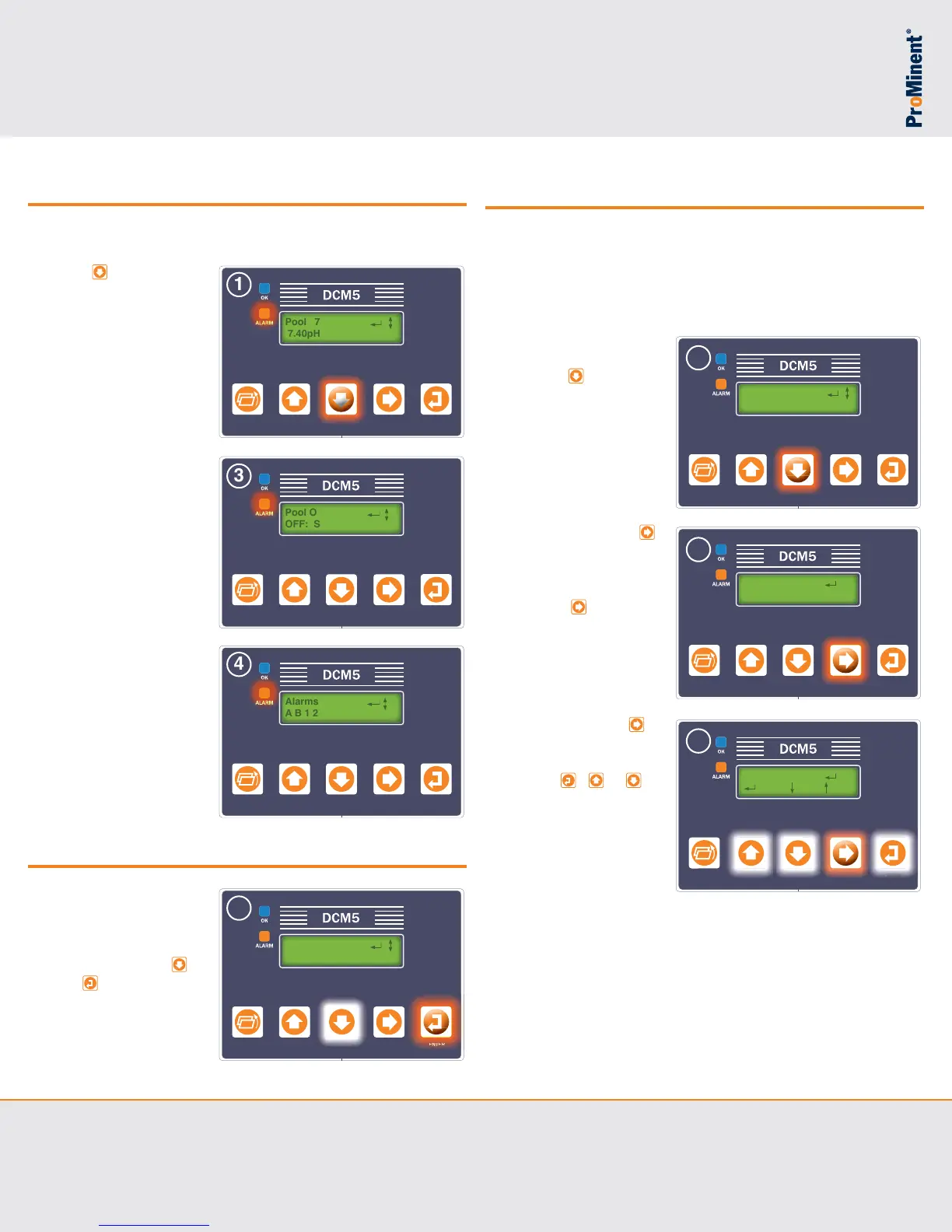

DCM 5 Series Controller
Quick Start Guide
The default timeout for the forced ON condition is 10 minutes.
After that delay, the relay will revert to AUTO mode. To adjust
this time, refer to the install manual or ask your ProMinent
Distributor for assistance.
ProMinent Fluid Controls, Inc.
136 Industry Drive • Pittsburgh, Pa 15275
Ph: 412-787-2484 • Fx: 412-787-0704
eMail: sales@prominent.us
www.prominent.us
