CAUTION!
– Degree of protection IP 65 applies only to a plug/
socket combination that has been screwed together!
–
In ambient conditions requiring protection against
contact and moisture according to IP 65, cables with
moulded M12 industry plugs must be used (e.g., see
below).
– Degree of protection IP 65 applies only to an
unwired pump (with PROFIBUS
®
module) if an IP
65-capable cover is placed over the M12 industry
socket! The cover included in the delivery does not
guarantee chemical resistance.

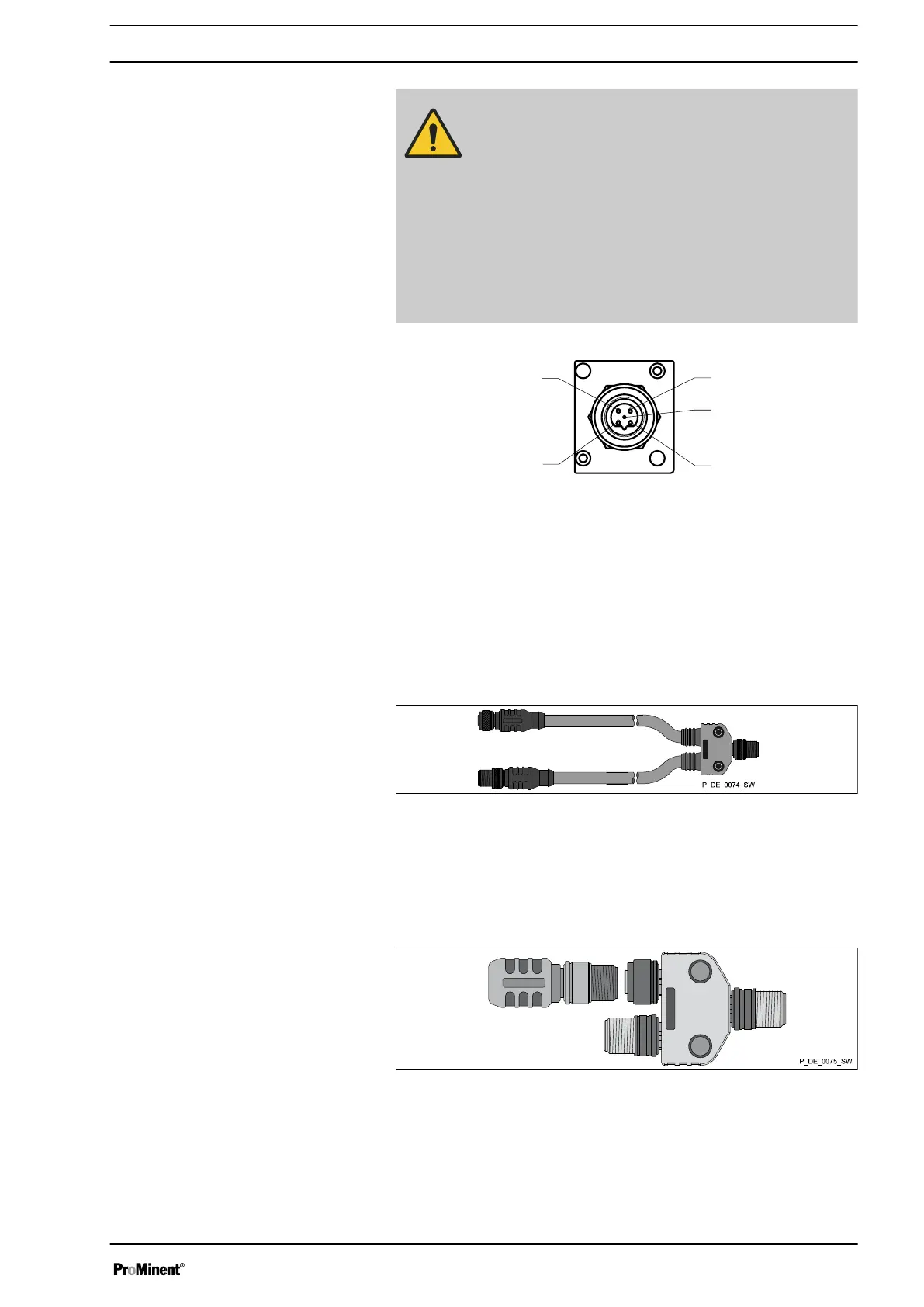

Socket on the PROFIBUS
®
module (M12 )
1 5 V
2 A conductor (green)
3 GND
4 B conductor (red)
5 Shielding
.
Y-adapter (order no. 1040956)
The Y-adapter connects to the pump using a moulded M12 plug. The ends
are provided with an M12 plug and an M12 socket. The Y-adapter com‐
plies with the requirements for protection against contact and moisture
according to IP 65.
.
PROFIBUS
®
termination, complete (order no. 1040955)
If the pump is the last bus device connected to the PROFIBUS
®
cable, it
must be connected completely as a termination using the PROFIBUS
®
ter‐
mination - see EN 50170. The PROFIBUS
®
termination, complete, com‐
plies with the requirements for protection against contact and moisture
according to IP 65. (It consists of a Y-plug and terminating resistance.)
Installation
9
