BM-16
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
16
4. ACCESSORIES
4.1. Guide for bevelling pipes
Allows external bevelling of pipes with a diameter of at least 150 mm (5.9’’) and internal
bevelling of pipes with a diameter of at least 110 mm (4.3’’).
To install, unplug the machine from the power source, and place the machine
upside down (Fig. 11). Heat the screws, and then use the 3 mm hex wrench to
unscrew the standard guide and screw in the guide for pipes.

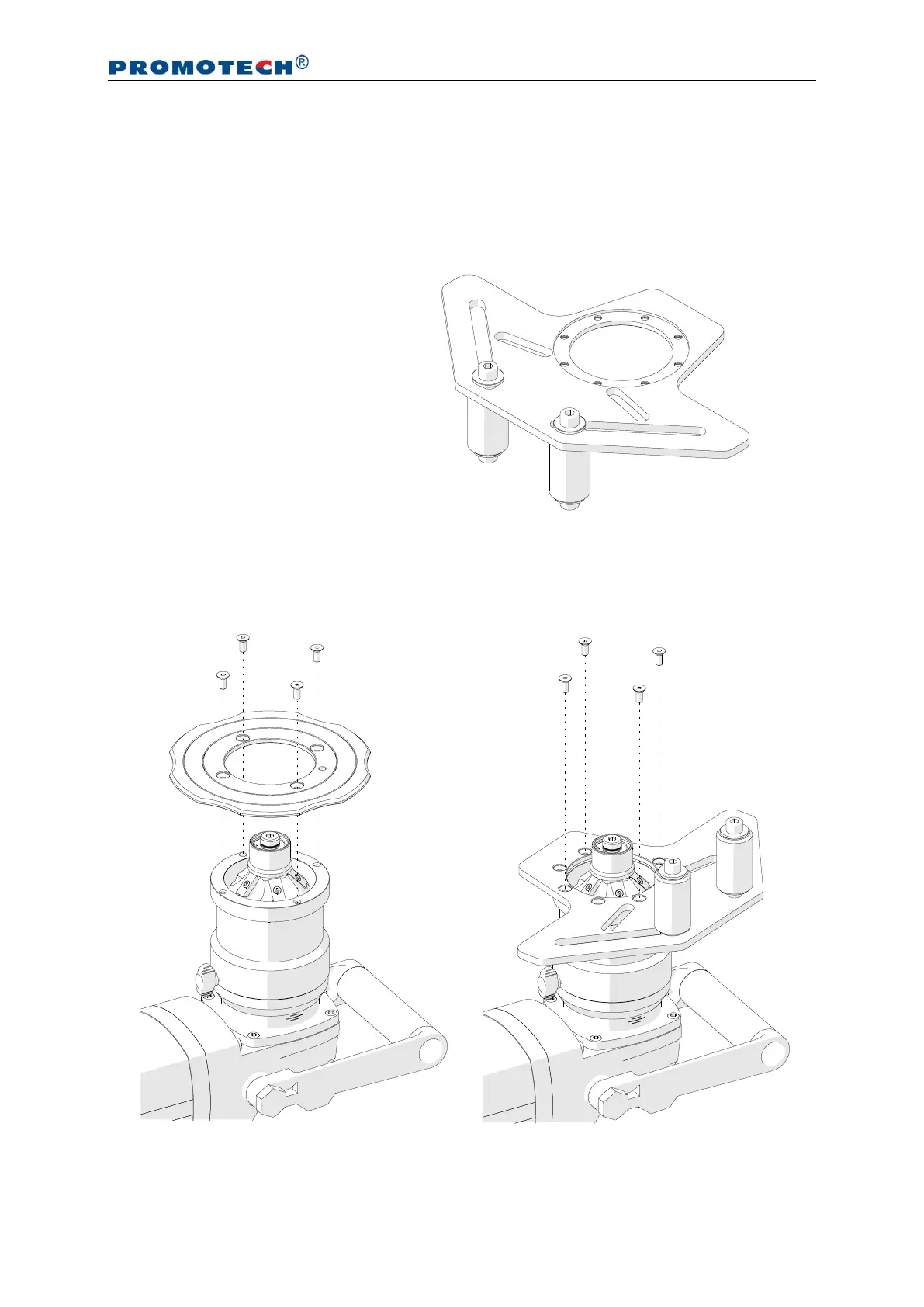

Fig. 11. Installing the guide for pipes
Part number:
PRW-0509-07-00-00-0
(includes: four M5x12 screws,
3 mm hex wrench, 6 mm hex wrench)
