BM-16
This document is protected by copyrights.
Copying, using, or distributing without permission of PROMOTECH is prohibited.
18
Part number:
ZBD-0509-12-00-00-0
(includes 5 mm hex wrench)
4.2. Anti-scratch guide sticker
Self-adhesive guide sticker against scratches is dedicated for aluminum bevelling.
If the sticker is removed, clean excess glue from the guide using petroleum ether.
4.3. Worktable fixture
Designed to bevel workpieces with a width of 15–100 mm (0.59–3.94’’), thickness of up
to 70 mm (2.76’’), and to the maximum bevel width of 14 mm (0.55’’).

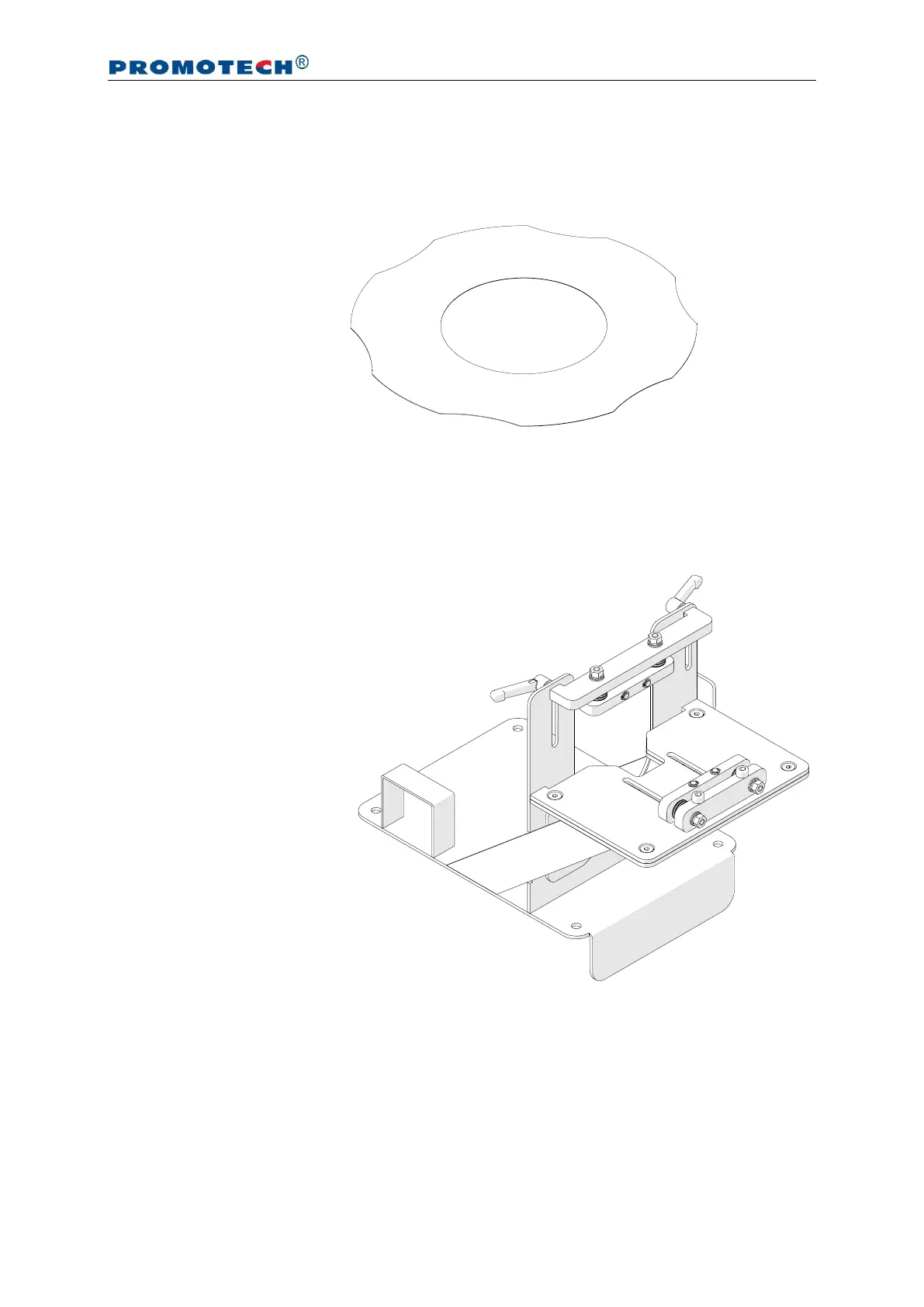

Install the worktable fixture by using holes in the base (1, Fig. 13). Then, unscrew
the levers and remove the vertical clamp 2. Unplug the machine from the power
source, rotate the sleeve to set ‘0’ on the pitch, and then place the machine into the
worktable fixture (3) so that the motor rests on the support (4).
Part number:
NKL-0509-05-00-00-0
