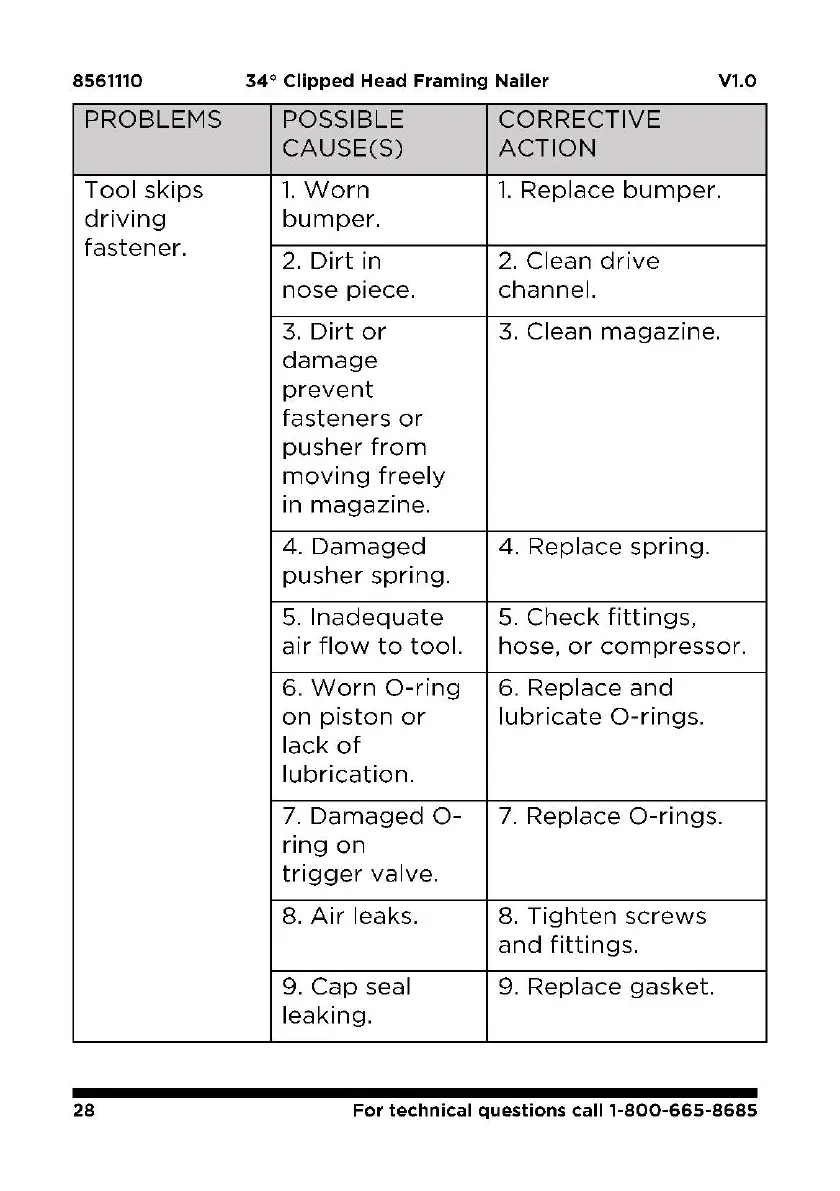

PROPOINT 8561110 - Page 28

8561110 34° Clipped Head Framing Nailer V1.0
PROBLEMS POSSIBLE CORRECTIVE
CAUSE(S)
ACTION
Tool skips
1. Worn
1. Replace bumper.
driving bumper.
fastener.
2. Dirt in 2. Clean drive
nose piece.
channel.
3. Dirt or
3. Clean magazine.
damage
prevent
fasteners or
pusher from
moving freely
. .
m magaz1ne.
4. Damaged 4. Replace spring.
pusher spring.
5. Inadequate 5. Check fittings,
air flow to tool. hose, or compressor.
6. Worn 0-ring 6. Replace and
on piston or lubricate 0-rings.
lack of
lubrication.
7. Damaged 0- 7. Replace 0-rings.
nng on
trigger valve.
8. Air leaks. 8. Tighten screws
and fittings.
9. Cap seal 9. Replace gasket.
leaking.
