G.SHDSL .bis Router User Manual V0.04
31
VLAN Mode
Item Description
Active Mode Active 802.1Q VLAN function
On: Enable VLAN Configure
Off: Disable VLAN Configure
Group Config (Summary Table)
Item Description
Name This field displays the name of the VLAN group
VID This field displays the ID number for a VLAN group.
MGMT Specify the selected VLAN group as manageable.
Port Number The columns display the VLAN settings on each port.
“Tag” for a tagged port.
“UnTag” for an untagged port.
“Not Group“ for ports without VLAN settings.
PVID This field displays the ID number of the VLAN group
Note: The LAN/WAN’s PVID need to belong to valid entry’s VID.
Click on Apply to save the parameters or Cancel to start configuring this page from beginning.
4
4
.
.
3
3
.
.
7
7
Q
Q
o
o
S
S
QoS is the function to decide the priorities of setting IPs to transfer packets under the situation of
overloading bandwidth. Use QoS set up for traffic management of the SHDSL.bis router.

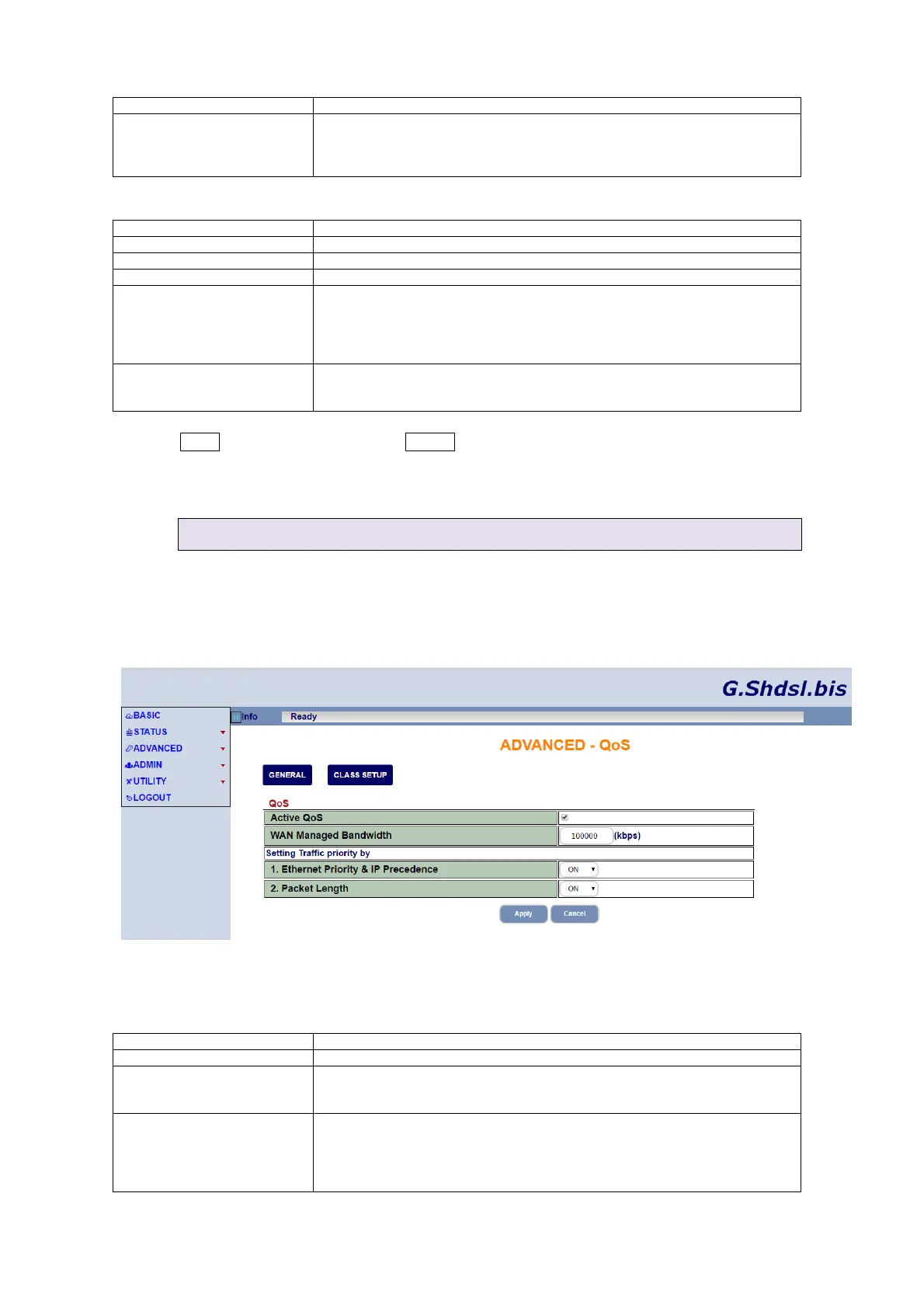

ADVANCED>QoS
General
QoS
Item Description
Active QoS Active QoS for traffic management
WAN Management
Bandwidth
Specify the bandwidth allocated to WAN using QoS.
Matching the bandwidth to WAN’s actual speed is recommended.
Ethernet Priority & IP
Precedence
This field is not effective when traffic matches the class configured under
CLASS SETUP.
When select ON and traffic doesn’t match the class configured under CLASS
SETUP, the router assigns priority to unmatched traffic based on IEEE
To Next Page
