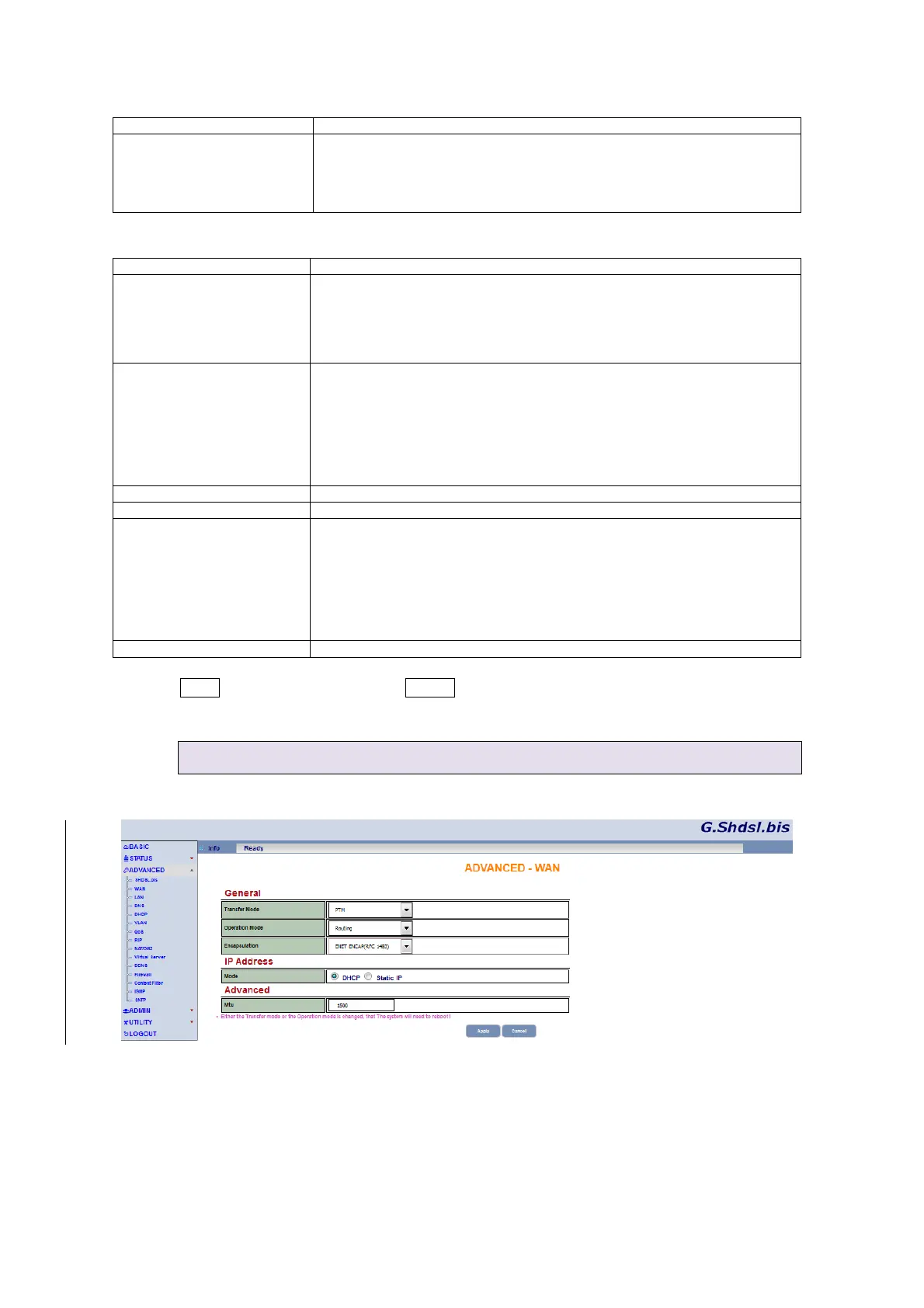

Service Type
Item Description
Pair Mode Click on the drop-down list and select Pair Mode as Pair-1, Pair-2 or Pair-4.
Pair-1 for 2-Wire Shdsl.bis Router
Pair-2 for 4-Wire Shdsl.bis Router
Pair-4 for 4-Wire Shdsl.bis Router
Pair Config
Item Description
Mode Type Click on the drop-down list and select STU Mode as STU-C or STU-R
STU-C means the terminal of central office and STU-R means customer
premise equipment. For point to point application, STU-C is the
server/master unit while STU-R is the client/slave unit.
Line Probe Click on the drop-down list and select Enable to enable Line Probe or Disable
to disable Line Probe.
For adaptive mode, you have to Enable Line Probe function. The router will
adapt the data rate automatically according to the line status.
Note: The TCPAM-64/128 did not support Line Probe Disable.
Transfer Max Rate Select the maximum rate for sending and receiving data.
Transfer Min Rate Select the minimum rate for sending and receiving data.
Standard Mode
There are four Annex types: Annex A (ANSI), Annex B (ETSI), Annex AF and
Annex BG .
Select the Standard Mode supported by your ISP.
For point to point applications, you may choose one of the four types
according to which line rate you need.
Modulation Select the modulation supported by your ISP.
Click on Apply to save the parameters or Cancel to start configuring this page from beginning.
