802.1p priority level, IP precedence.
When select OFF, unmatched traffic is mapped to Queue Two.
Packet Length This field is not effective when traffic matches the class configured under
CLASS SETUP.
When select ON and traffic doesn’t match the class configured under CLASS
SETUP, the router assigns priority to unmatched traffic based on IEEE
802.1p priority level, Packet Length.
When select OFF, unmatched traffic is mapped to Queue Two.
Click on Apply to save the parameters or Cancel to start configuring this page from beginning.

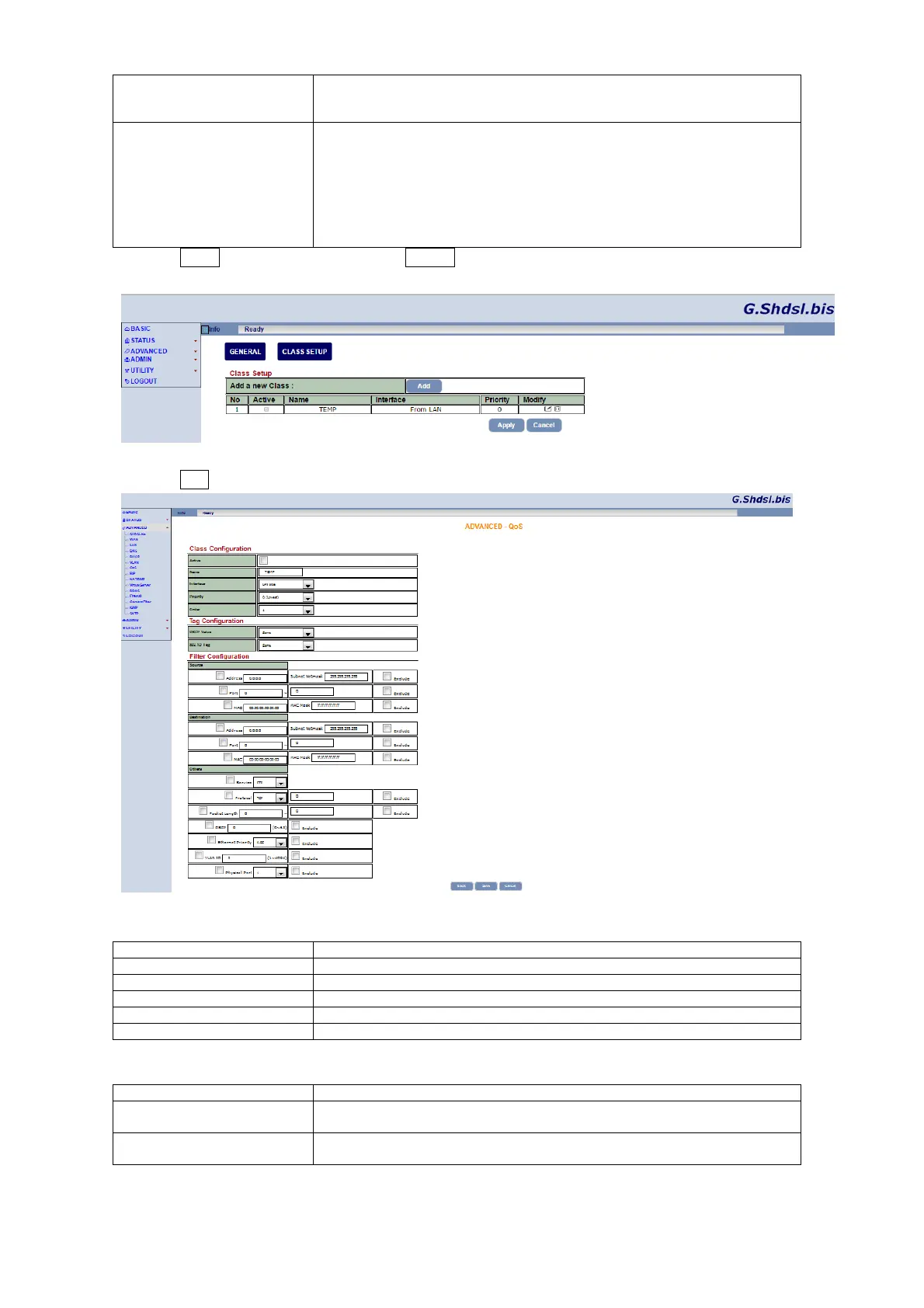

CLASS SETUP
Click on Add to create a new class
Class Configuration
Item Description
Active Activate the classifier
Name Enter the name of the classifier
Interface Only from LAN Side for the traffic of the classifier
Priority Assign priority to the traffic of the classifier
Order Ordering number of the classifier
Tag Configuration
Item Description
DSCP Value Select Same to keep the DSCP field in the packets.
Select Auto to map the DSCP value to 802.1 priority level automatically
802.1Q Tag Select Same to keep the priority setting and VLAN ID of the frames.
Select Auto to map 802.1 priority level to the DSCP value automatically
