44
MARK76R0001 Rev 3
Replacing the Acrylics
Replacing the Lamps
Once you have removed the acrylic , with gloves on to protect the lamps from oils, twist the
lamp and remove.
When replacing the lamp twist the lamp back into position. Listen for 2 clicks to ensure the
lamp is securely fastened.

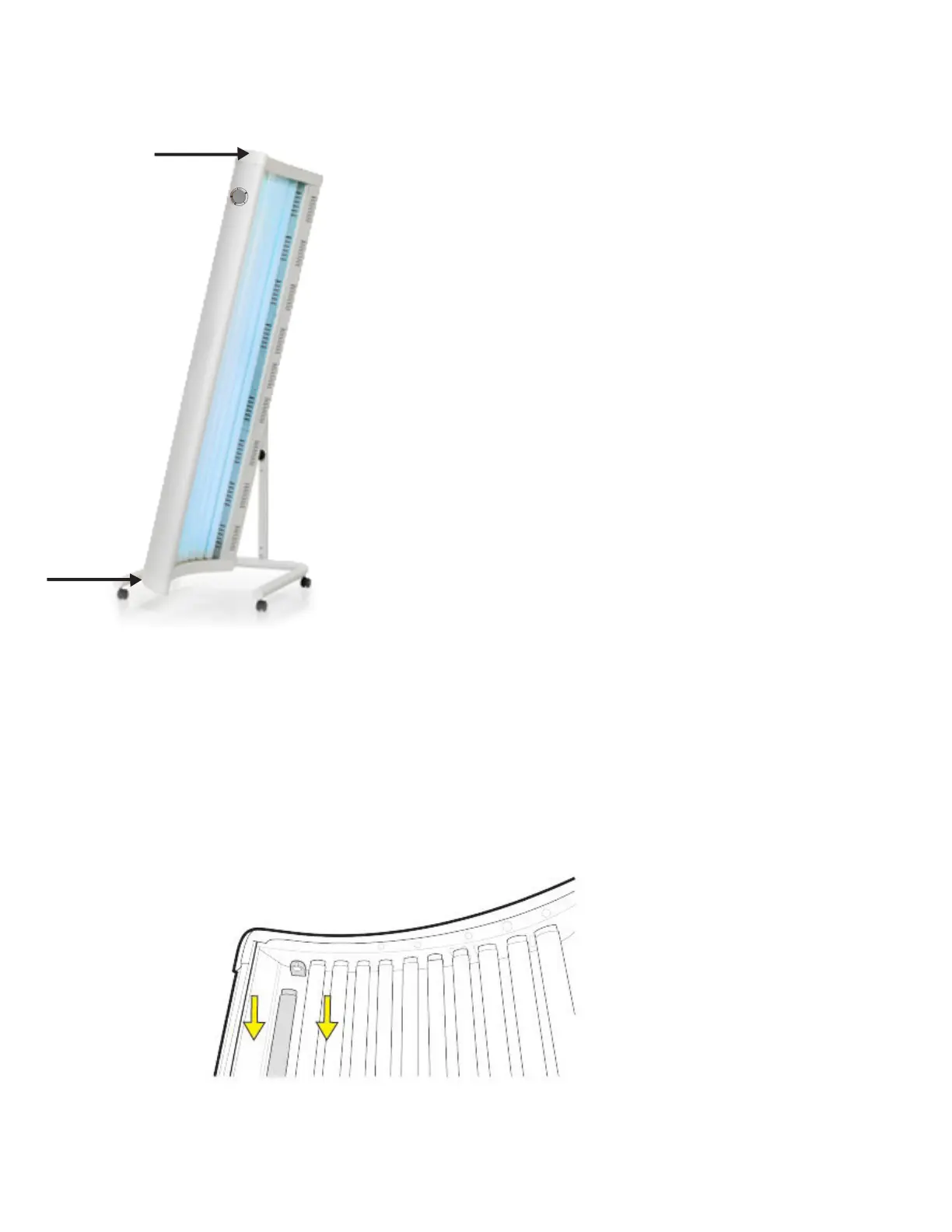

To remove the Acrylic you will want to re-
move both end caps on the unit, shown by
arrows in the image on the left. Remove the
end caps by removing the 3 screws in each.
Then you will be able to carefully pull back
the acrylic. It is recommended that you wear
gloves in order pull back the acrylic due to
sharp edges.
