Protek 9750HD IP User Manual

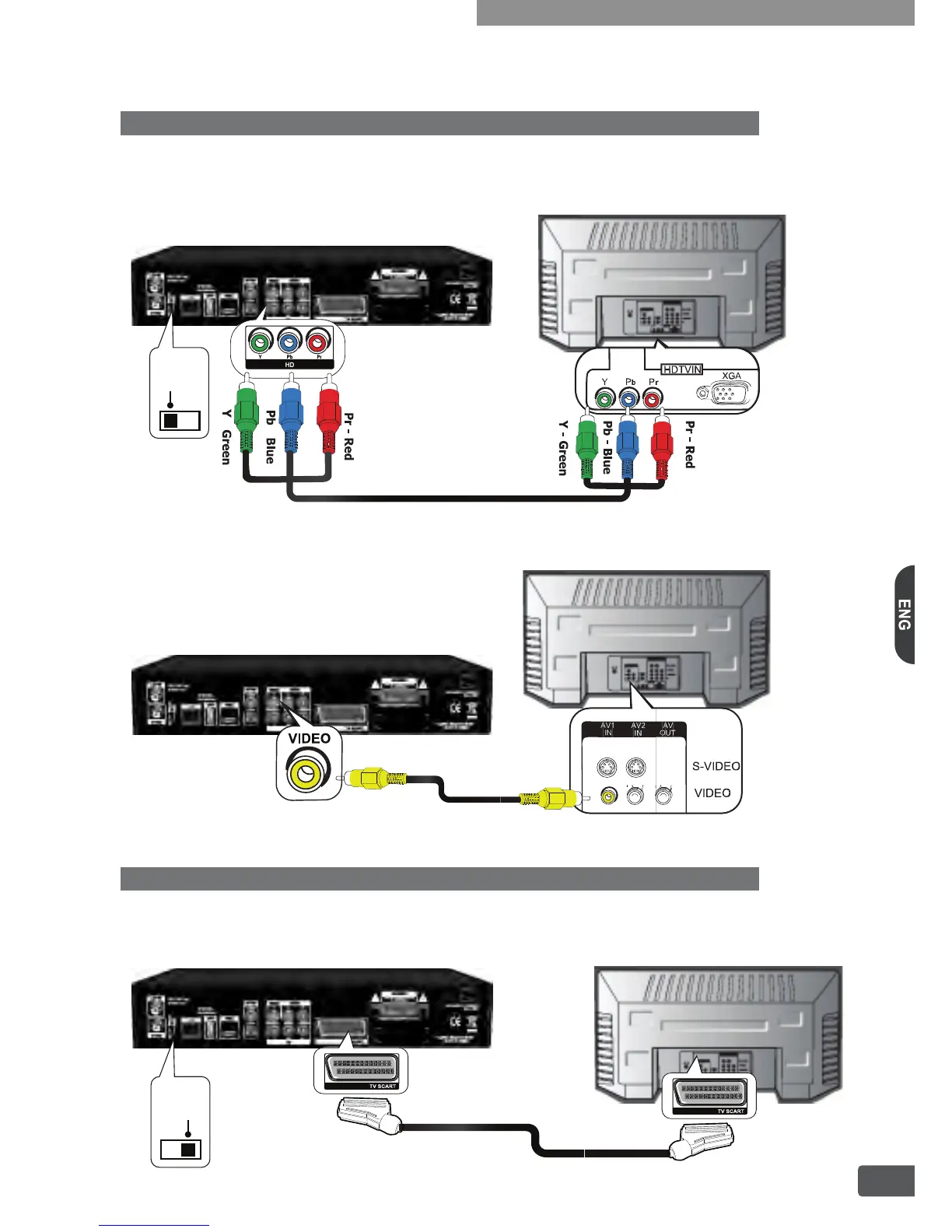

2-2-2. Connecting to a HDTV with HD YPbPr
Attention: Please make sure that the Output Select Switch is in YPbPr position!
Connect YPbPr Video cable to the HD terminal on the rear
of HD-Receiver. Connect the other end
of YPbPr Video cable to the HD YPbPr input terminal on the HDTV. Usually, the Y is Green, Pb is
Blue and Pr is Red color assigned. Set up the video format
to desired video resolution.
2. Connecting your HD-Receiver
4
2-2-3. Connecting to a Conventional TV with Composite Video
Conn ect a Video Cable to the TV Video terminal on
the rear of the HD-Receiver.Connect the other end
of Video Cable to the Video In terminal on the TV.
2-2-4. Connecting to a Conventional TV wtih SCART connection
Attention: Please make sure that the Output Select Switch is in RGB position!
Connect a SCART Cable to the TV SCART terminal on the rear of the HD-Receiver. Connect the other
end of the SCART Cable to the SCART terminal on the TV. Please make sure, the Output Select
Switch should be RGB position for correct SCART RGB operation.
YPbPr
RGB
