Proteus PSS-515C - Top Section Assembly

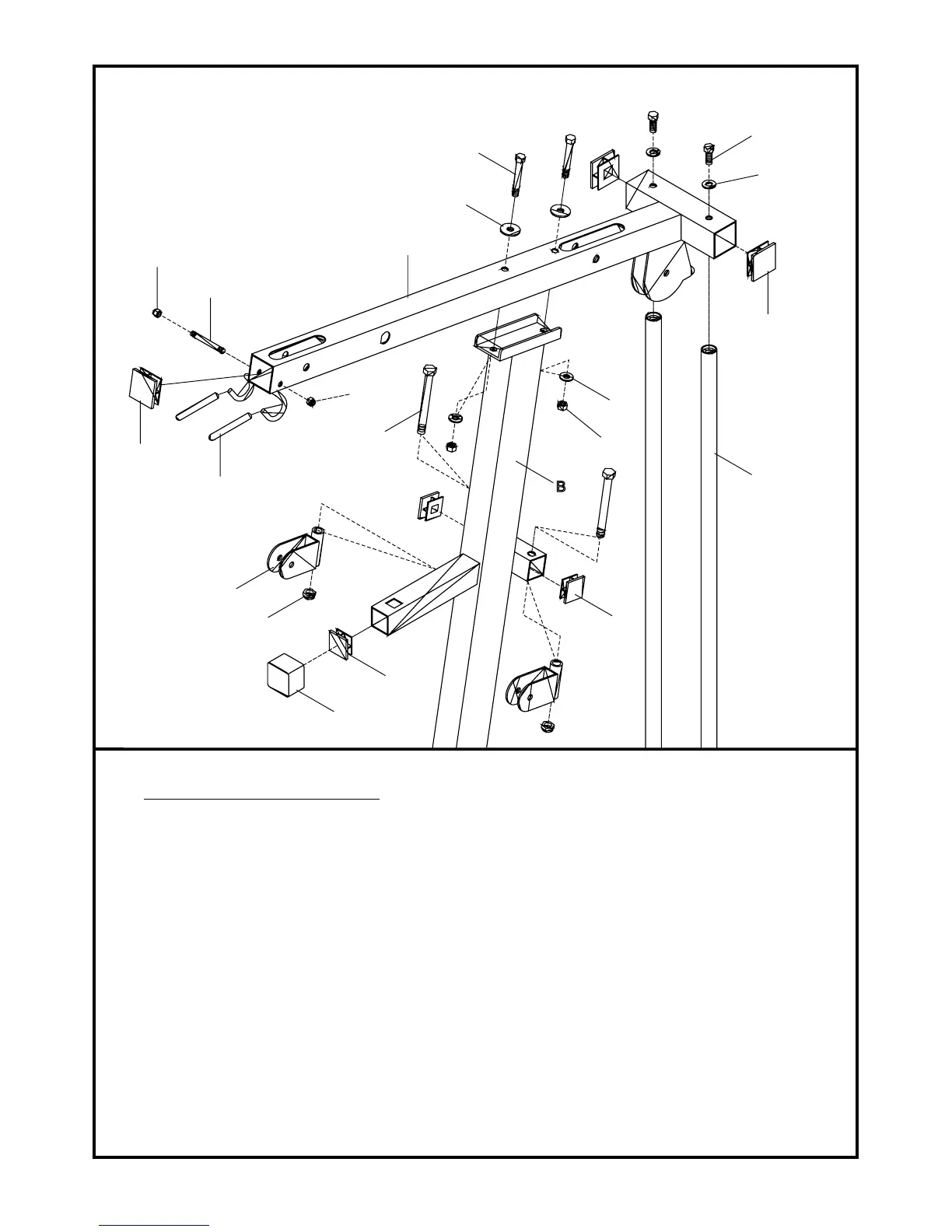

TOP SECTION ASSEMBLY
1. FIT 3 PCS SQUARE PLUGS ( 26 ) ONTO TOP TUBE ( A ). FIT RUBBER COVER ( 33 )
ONTO HOOL OF TOP TUBE ( A ). ASSEMBLY STUD ( 36 ) AND NUTS ( 17 ) ONTO
TOP TUBE ( A ).
FIT 3 PCS SQUARE PLUGS ( 25 ) ONTO MAIN SUPPORT TUBE ( B ). FIT CAP ( 29 )
ONTO MAIN SUPPORT TUBE ( B ).
2. ASSEMBLY TOP TUBE ( A ) ONTO MAIN SUPPORT TUBE ( B ) AND WEIGHT SLIDER
TUBES ( F ). FIX WITH BOLTS ( 06 ) WASHERS ( 15 ) WASHERS ( 13 ) AND NUTS
( 18 ) FOR CENTER ASSEMBLY, FIX WITH BOLTS ( 01 ) WASHERS ( 13 ) FOR REAR
ASSEMBLY.
3. ASSEMBLY BOTH PULLEY BRACKETS ( T ) ONTO MAIN SUPPORT TUBE ( B ) FIX
WITH BOLTS ( 11 ) AND NUTS ( 20 ). ( NOTE TO KEEP BRACKET SWIVEL FREELY.
USE LITTLE OIL OR GREASE ON BOLT WILL BE HELPED ).
11( 1/2"x 106 )
36( M8"x 71 )
A
15
6( 3/8" x 69 )
1 x ( 3/8" x 25 )
13
26
17
26
33
T
20
29
25
25
18
13
F
17
10
