Proteus PSS-515C - Leg Developer and Seat Assembly

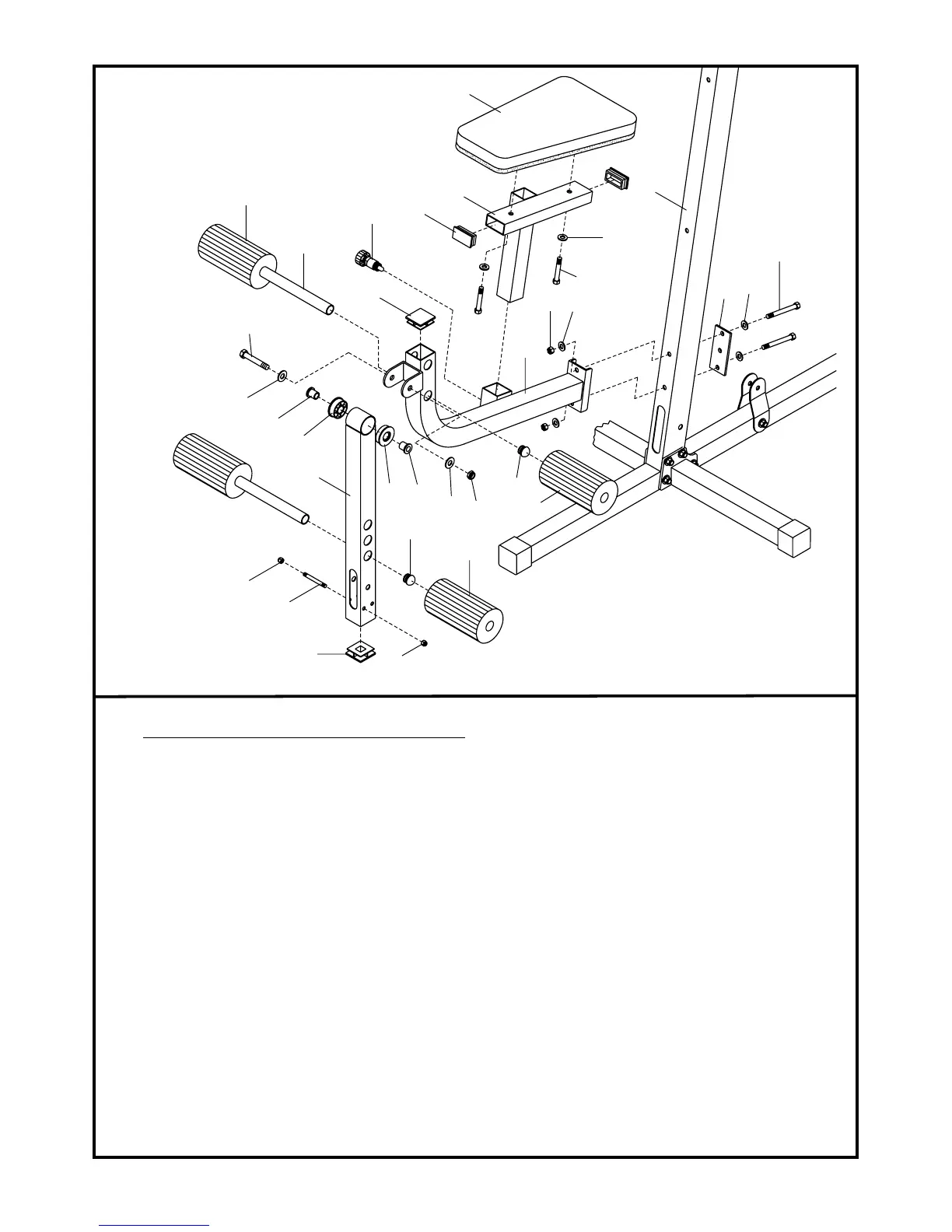

LEG DEVELOPER/SEAT ASSEMBLY
1. FIT 2 PCS PLUGS ( 26 ) ONTO BOTH ENDS OF LEG DEVELOPER TUBE ( J ) AND
SEAT TUBE ( H ). FIT PLUGS ( 27 ) TO END OF SEAT ADJUSTABLE TUBE ( I ). FIT
ROUND PLUGS ( 24 ) TO ENDS OF ROLLER PAD TUBES ( CC ).
2. ASSEMBLY SEAT TUBE ( H ) ONTO MAIN SUPPORT TUBE ( B ) WITH BOLTS ( 06 )
WASHERS ( 13 ) BRACE PLATE ( X ) AND NUTS ( 18 ).
NOTE : WHILE ASSEMBLING LEG DEVELOPER TUBE ( J ), THE SMALL HOLE ( FOR
#36 STUD ) SHOULD BE FACING FRONT ( REFER TO DIAGRAM ).
3. ASSEMBLY LEG DEVELOPER TUBE ( J ) ONTO SEAT TUBE ( H ). FIX WITH BOLT
( 10 ) WASHERS ( 16 ) NUT ( 20 ). ASSEMBLY ROLLER PADS ( EE ) AND ROLLER
PAD TUBE ( CC ) ONTO LEG DEVELOPER TUBE ( J ). ASSEMBLY ROLLER PADS
( EE ) AND ROLLER PAD TUBE ( CC ) ONTO SEAT TUBE ( H ).
4. ASSEMBLY SEAT ( N ) ONTO SEAT ADJUSTABLE TUBE ( I ) WITH BOLTS ( 04 ) AND
WASHERS ( 13 ). THEN ATTACH ONTO SEAT TUBE ( H ), ADJUST TO DESIRED
HEIGHT AND FIX WITH POP PIN ( S ).
5. ADJUST THE HEIGHT OF THE SEAT BY THE POP-PIN ( S ). TIGHTENED THE
POP-PIN FIRMLY AFTER ADJUSTMENT.
EE
CC
H
X
13
26
16
10( 1/2"x 82 )
J
17
17
26
36( M8x71 )
27
13
B
3( 3/8" x 43 )
9( 3/8" x 96 )
1318
EE
24
20
24
39
16
EE
S
I
38
38
39
N
11
