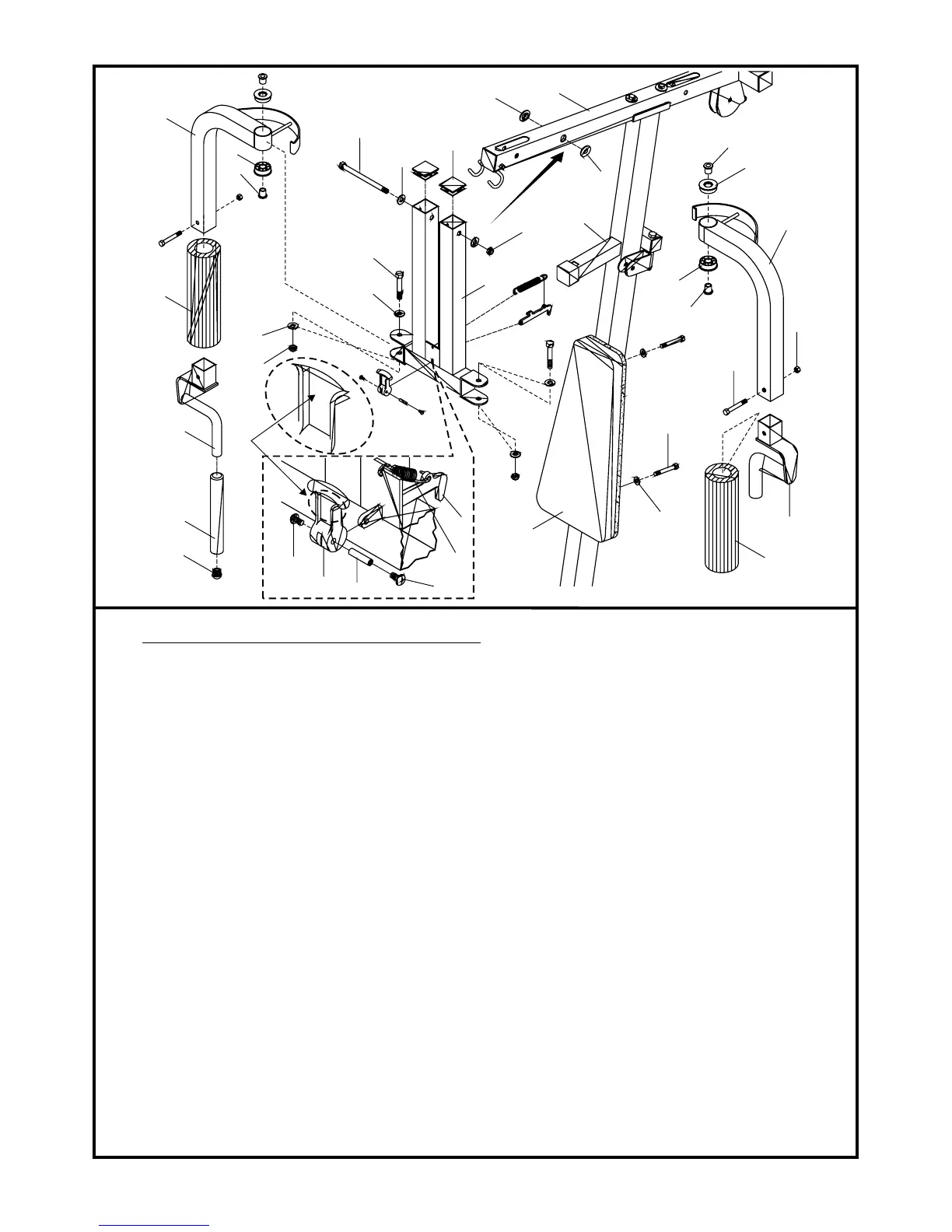

BENCH/BUTTERFLY ARM ASSEMBLY
1. FIT ROUND PLUGS ( 24 ) ONTO ENDS OF BOTH BENCH HANDLES ( R ).
ASSEMBLY FOAM GRIPS ( FF ) ONTO BOTH BENCH HANDLES ( R ), AND ASSEMBLY
BUTTERFLY ROLL PADS ( DD ) ONTO BOTH BUTTERFLY ARMS ( L / M ), USE LITTLE
WATTER FOR LUBRICANT. THEN FIT BENCH HANDLES ( R ) ONTO BOTH
BUTTERFLY ARMS ( L / M ), FIX WITH BOLTS ( 04 ) AND NUTS ( 18 ).
2. LOCATE LOCK LEVER ( JJ ) INTO HOLE OF BENCH TUBE ( K ) CONNECT LOCK
LEVER AND BENCH TUBE WITH SPRING ( KK ), ATTACH ADJUST LEVER ( JJ ) TO
LOCK LEVER ( II ), NOTE THE SIDE MARKED PEC-DEC SHOULD BE FACING FRONT ).
INSERT SLEEVE ( 34 ) TO BOTH HOLES OF ADJUST LEVER AND LOCK LEVER, FIX
WITH 2 x BOLTS ( 35 ).
FIX 2 X BUSHINGS ( 22 ) ONTO HOLES OF TOP TUBE ( A ) THEN ATTACH BENCH
TUBE ( K ) ONTO TOP TUBE ( A ) OVER BOTH BUSHINGS ( 22 ), FIX WITH BOLTS
( 12 ) AND NUT ( 20 ).
3.
4. THEN SLIDE BOTH BUTTERFLY ARMS (L/M) ONTO BRACKET OF BENCH TUBE ( K )
FIX WITH BOLTS ( 10 ) WASHERTS ( 16 ) AND NUTS ( 20 ). ( NOTE DO NOT OVER
TIGHTEN THE BOLTS / NUTS, LET BOTH ARMS CAN BE RETURNED WITH LOWEST
WEIGHT SETTING. TEST IT WHILE WHOLE MACHINE ASSEMBLED ).
5. ASSEMBLY BACKREST PAD ( O ) ONTO MAIN SUPPORT TUBE ( B ). FIX WITH
BOLTS ( 08 ) AND WASHERS ( 13 ).
FUNCTION OF PEC-DEC & BENCH PRESS IS CHANGEABLE BY SWITCHING THE
SHIFTER BAR ( JJ ). FOR PEC-DEC FUNCTION, PUSH UP THE SHIFTER BAR AND
FOR BENCH PRESS FUNCTION, PULL DOWN THE SHIFTER BAR.
