Proteus PSS-515C - Weight Plates Assembly; Cable Tension Attention

9

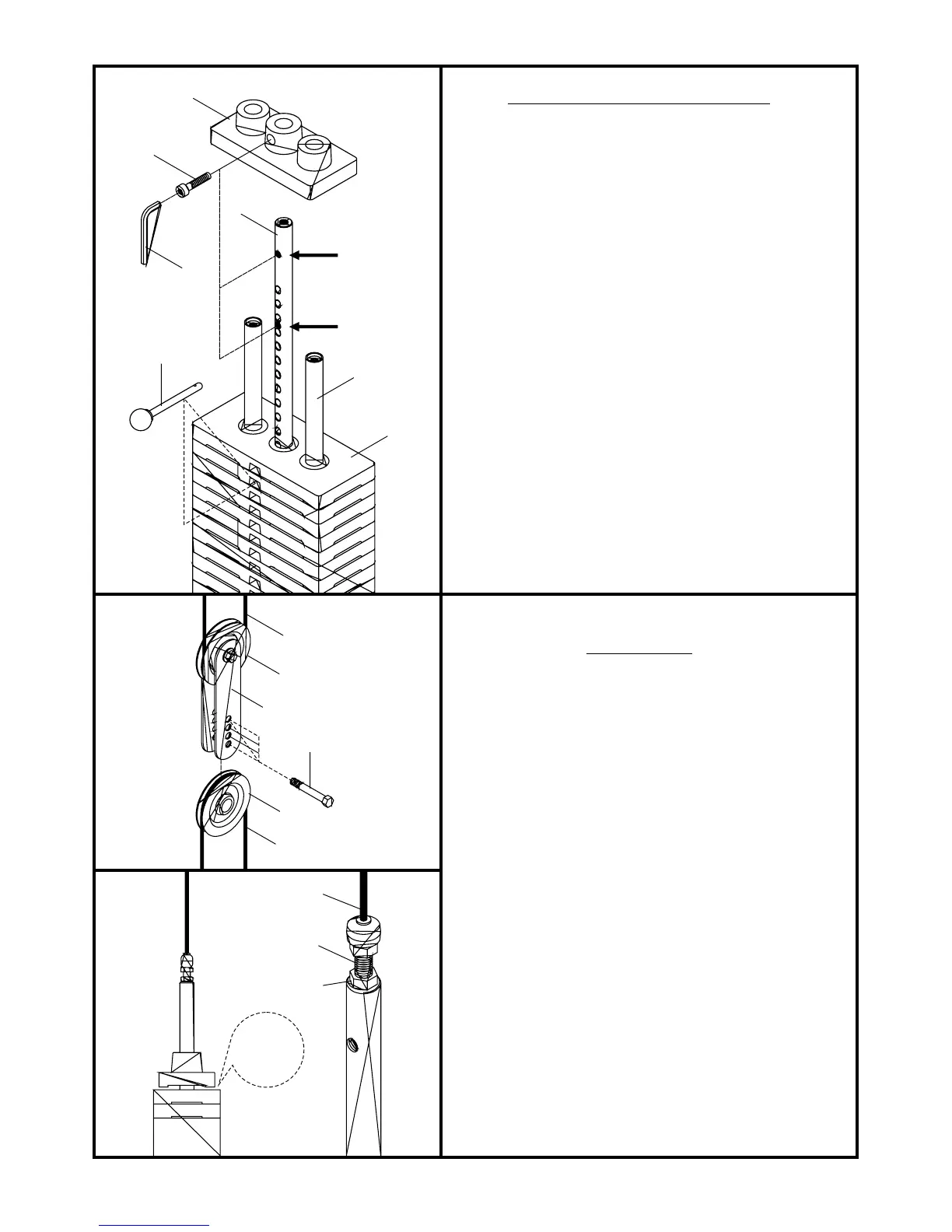

WEIGHT PLATES ASSEMBLY
1. SLIDE ALL WEIGHT PLATES ( PP ) OVER
WEIGHT SLIDER TUBES ( F ) ONE BY
ONE. CHECK THAT THE PIN SLOTS ALL
FACING THE SAME WAY.
2. FIT WEIGHT PICK-UP POLE ( Q ) TO
WEIGHT STACK TOP PLATE (OO) WITH
ALLEN SCREW ( 08 ). TIGHTEN WITH
ALLEN KEY ( mm ).
NOTE : PICK UP POLE IS DESIGNED FOR
BOTH 150 LBS AND 200 LBS SPEC.
FIT TOP PLATE ON SECOND TAP HOLE
FOR 150 LBS SPEC.-PSS-515C
FIT TOP PLATE ON FIRST TAP HOLE FOR
200 LBS SPEC.-PSS-520C
3. SLIDE THIS TOP PLATE ASSEMBLY
OVER WEIGHT SLIDER TUBES ( F ) AND
DOWN ON TO THE TOP WEIGHT PLATES.
ATTENTION
AFTER MACHINE ASSEMBLED. NOTE TO
CHECK WHETHER THE CABLE IS WITH
GOOD TENSION. ( SUGGEST TO KEEP THE
INTERVAL 2mm-5mm BETWEEN TOP PLATE
AND 1ST WEIGHT PLATE, THEN THE CABLE
WILL BE WITH GOOD TENSION ).
IF CABLE IS SLIGHTLY LOOSE. ADJUST
LITTLE THE BOLT ON CABLE #A1 TO KEEP
TENSION.
IF CABLE IS MORE LOOSER, ADJUST THE
PULLEY P12 TO HIGHER POSITION ON
BRACKET ( V ) TO KEEP CABLE WITH
GOOD TENSION.
CABLE A1
3( 3/8" x 43 )
P3
V
P12
CABLE A3
CABLE A1
BOLT
LOCK NUT
37
MM
F
PP
Q
FIRST TAP HOLE
FOR 200 LBS
SECOND TAP HOLE
FOR 150 LBS
OO
Y
INTERVAL
2-5mm
