CABLE A3 AND PULLEY ASSEMBLY
1. SELECT CABLE A3. ONE SIDE IS WITH BIG
RUBBER BALL ANOTHER SIDE IS WITH SMALL
RUBBER BALL ( W / O BOLT ).
2. FOLLOW THE DIRECTION IN THE DRAWING, FIT
CABLE A3 AND PULLEY ( P8 / P9 ) ONTO BOTTOM
HOLE OF LEG DEVELOPER TUBE ( J ) AND
BOTTOM HOLE OF MAIN SUPPORT TUBE ( B )
WITH BOLTS ( 05 ) CAST BUSHINGS ( 21 ) AND
NUTS ( 18 ).
3. FIT CABLE A3 AND PULLEY ( P10 ) ONTO DOUBLE
PULLEY BRACKET ( U ) WITH BOLT ( 03 )
WASHERS ( 13 ) AND NUT ( 18 ).
4. FIT CABLE A3 AND PULLEY ( P11 ) ONTO PULLEY
BRACKET ( W ) WITH BOLT ( 03 ) WASHERS ( 13 )
AND NUT ( 18 ).
5. ASSEMBLY CABLE A3 AND PULLEY ( P13 ) ONTO
BRACKET OF FOOT BRACE TUBE ( G ) WITH BOLT
( 03 ) WASHERS ( 13 ) AND NUT ( 18 ).
6. PULL CABLE A3 TIGHTLY AS A LOOP, ASSEMBLY CABLE A3 AND PULLEY ( P12 )
ONTO HOLE OF PULLEY SIDE PLATE ( V ) WITH BOLT ( 03 ) WASHERS ( 12 ) AND
NUT ( 18 ). ( MAKE SURE THE CABLE IS TIGHT THEN ASSEMBLY ).
AFTER USING FEW MONTHS. THE CALBE MIGHT BE GETTING LOOSE. MOVE THE
PULLEY ( P12 ) POSITING ON PULLEY SIDE PLATE ( V ) TO ADJUST.
7. CABLES SHOULD ALWAYS RUN ON THE VALLEY OF PULLEYS. AFTER A PERIOD
OF USE, CABLES MAY HAVE SURFACE PEELING OFF OR OTHER CIRCUMSTANCES
OF INVALID FUNCTION, A NEW CABLE IS REQUESTED FOR REPLACEMENT.
IF CABLE FELL DOWN FROM THE PULLEY IN ANY FUNCTION OF EXERCISE,
DO NOT CONTINUE THE EXERCISE BEFORE CORRECTION DONE. THE FITTING OF
CABLES AND PULLEYS IS WELL MENTIONED ON THE INSTRUCTION MANUAL.
8. PULLEYS TO BE REPLACED WHEN ABNORMAL NOISE OR TRANSFIGURED. NO
LUBRICANT REQUIRES AND ALWAYS REPLACE BY THE CORRECT PULLEYS.

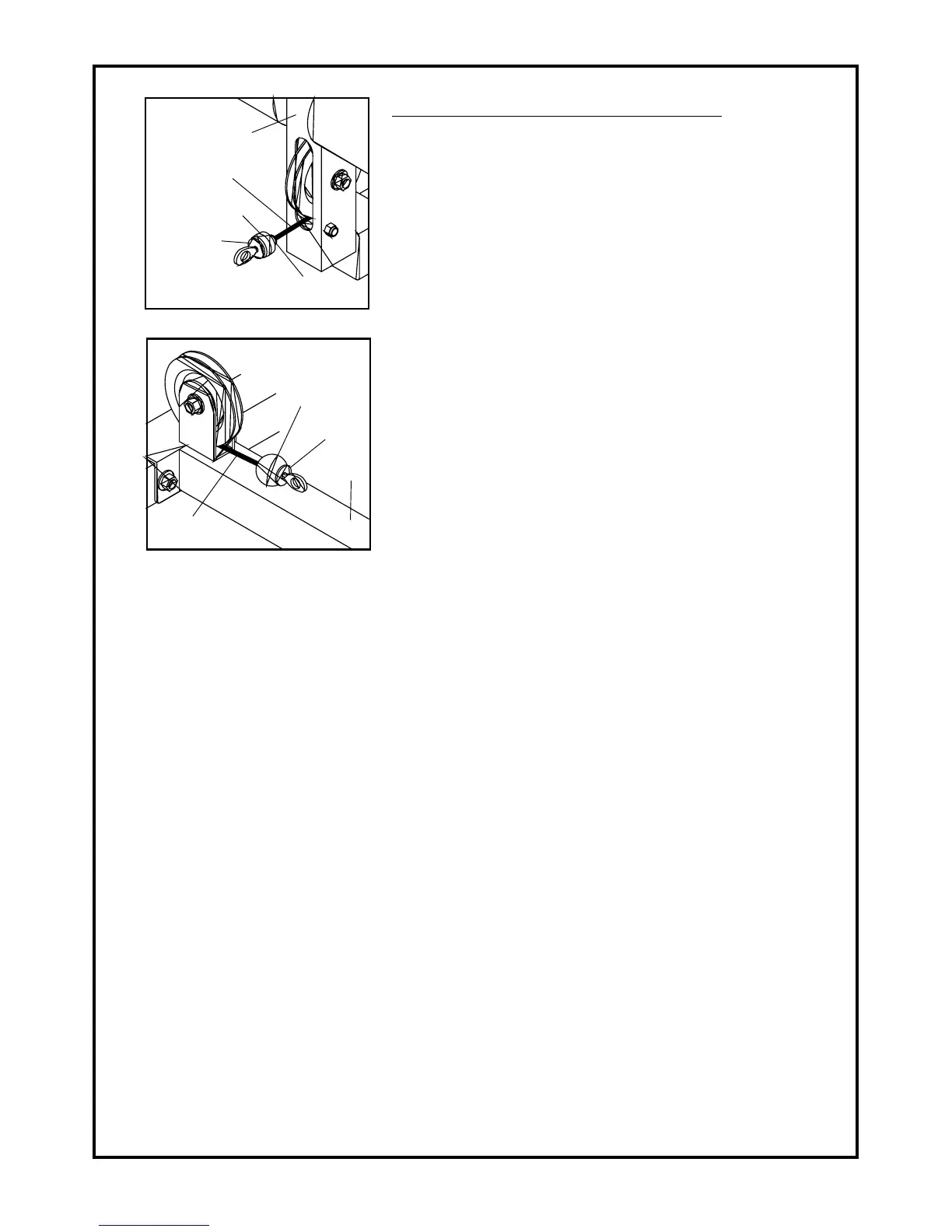

NOTE:
