Proteus PSS-515C - Assembly Instructions; Base Section Assembly Part I

7

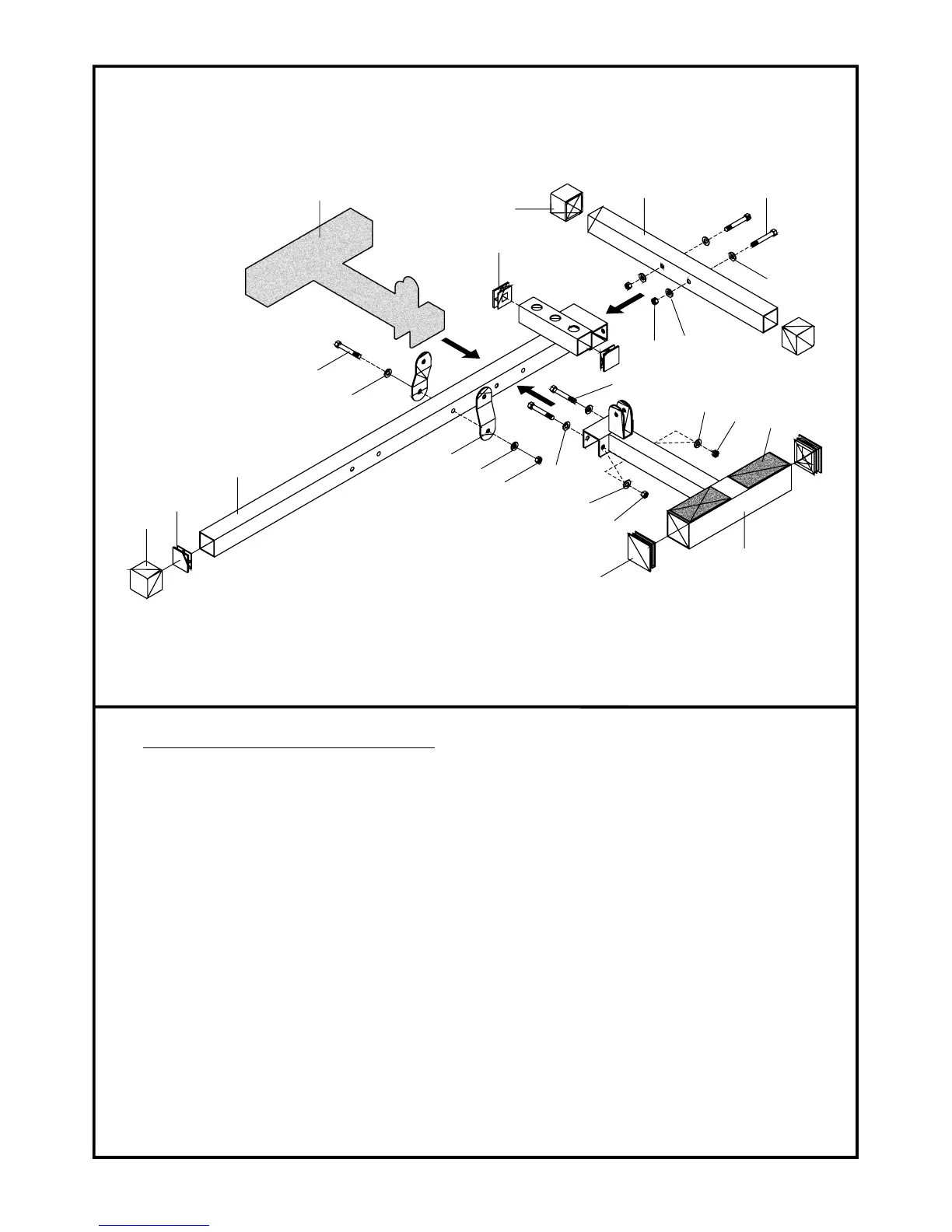

BASE SECTION ASSEMBLY ( I )
1. FIT 2 PCS SQUARE CAP FEET ( 30 ) ONTO BOTH ENDS OF REAR STABILIZER ( E ).
FIT 2 PCS SQUARE PLUG (26) AND 1 PC SQUARE CAP FEET ( 30 ) ONTO ENDS OF
BASE TUBE ( C ). FIT 2 PCS PLUGS ( 28 ) ONTO ENDS OF FOOT BRACE TUBE ( G ).
2. PLACE BASE TUBE ( C ) ON FLOOR. ASSEMBLY REAR STABILIZER ( E ) ONTO
BASE
TUBE ( C ), FIX WITH BOLTS ( 06 ) WASHERS ( 12 ) AND NUTS ( 18 ).
ASSEMBLY PULLEY BRACKET ( W ) ONTO BASE TUBE ( C ), FIX WITH BOLT ( 06 ) &
WASHERS ( 12 ) AND NUT ( 18 ). ( NOTE NOT TO OVER-TIGHTEN THIS NUT/BOLT,
FINGER TIGHTEN IS ENOUGH ).
3. ASSEMBLY FOOT BRACE TUBE ( G ) ONTO BASE TUBE ( C ). FIX WITH BOLTS ( 06 )
WASHERS ( 12 ) AND NUTS ( 18 ).
( THE FOOT BRACE TUBE (G) CAN BE ASSEMBLED EACH DIRECTION LEFT OR
RIGHT SIDE OF BASE TUBE ( C ). CHECK YOUR ROOM SPACE AND DECIDE HOW
TO PROCEED ).
13
W
G
13
13
13
6( 3/8" x 69 )
6( 3/8" x 69 )
13
13
E
18
28
C
26
30
18
18
RR
18
6( 3/8" x 69 )
13
G
30
26
