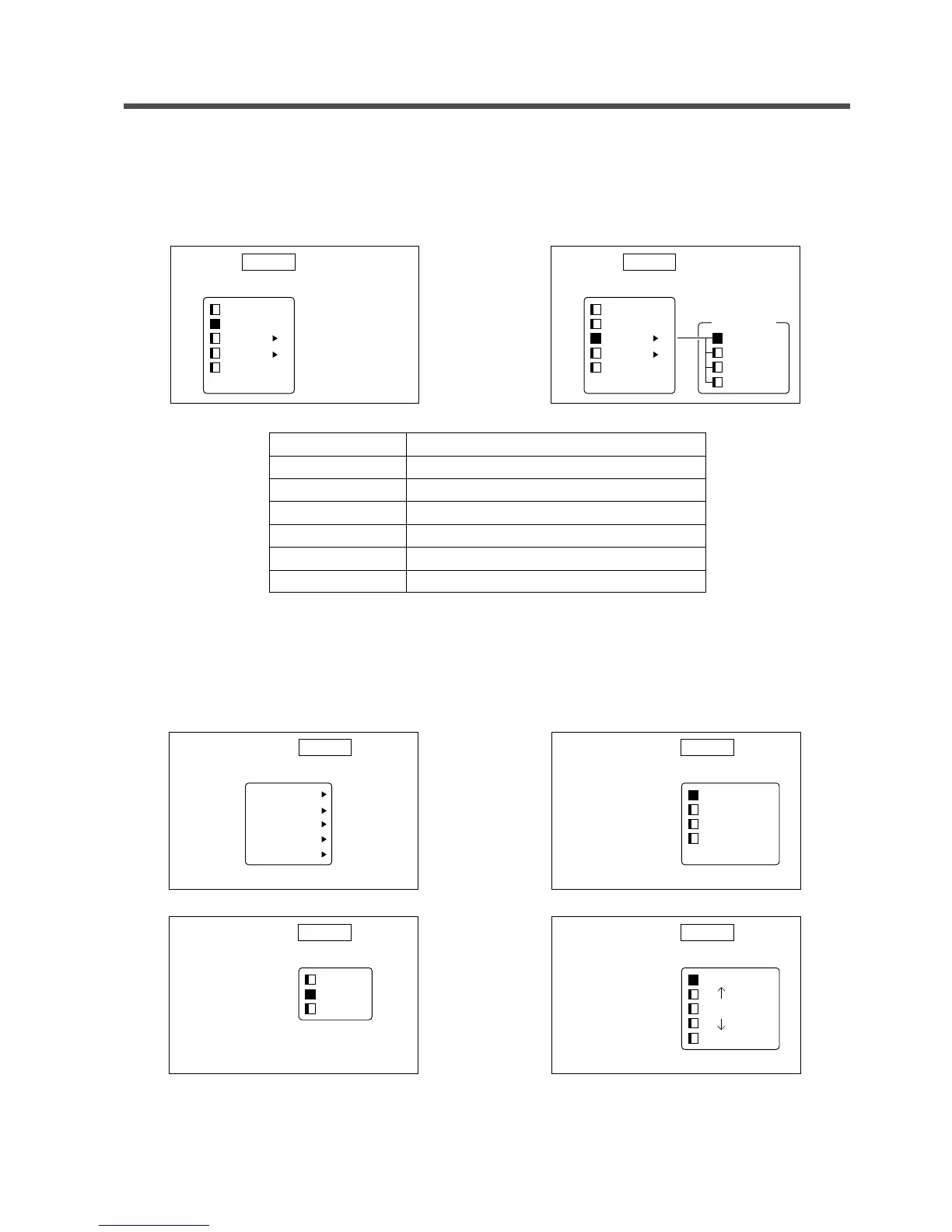

INPUT Menu
Use this menu to select an input source.
SETUP INPUT IMAGE OPT.
RGB1
RGB2
VIDEO1
VIDEO2
TEST
PATTERN
SETUP INPUT IMAGE OPT.
RGB1
RGB2
VIDEO1
VIDEO2
TEST
PATTERN
AUTO
NTSC
PAL
SECAM
SYSTEM
Item
RGB1
RGB2
VIDEO1*
VIDEO2*
TEST PATTERN
SYSTEM
Options
Selects the RGB 1 terminal.
Selects the RGB 2 terminal.
Selects the VIDEO 1 terminal.
Selects the VIDEO 2 terminal.
Selects the TEST PATTERN. (Start up screen).
Selects the video signal systems.
IMAGE Menu
The IMAGE menu controls picture inversion, Size, Reveal and Blanking.
SETUP INPUT IMAGE OPT.
MIRROR
BLANK
REVEAL
DISP. SIZE
MESSAGE
SETUP INPUT IMAGE OPT.
WHITE
BLUE
BLACK
BLANK
SETUP INPUT IMAGE OPT.
NORMAL
H : INVERT
V : INVERT
H&V :
INVERT
MIRROR
SETUP INPUT IMAGE OPT.
FAST

MEDIUM

SLOW
REVEAL
For Video inputs, you must also select a video format.
* Video models only.
