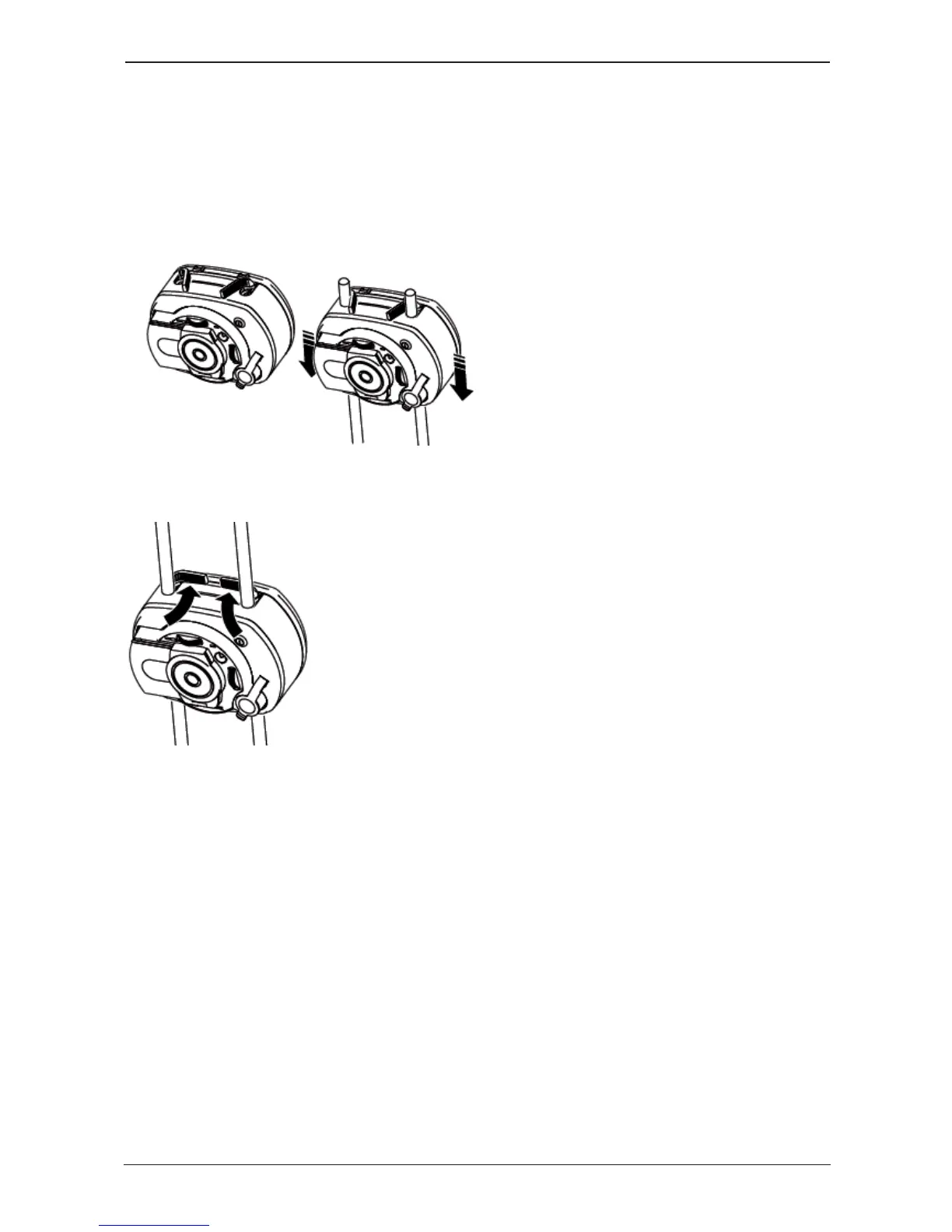

Mounting sensALIGN sensor and laser
Mount sensALIGN laser on the support posts of the bracket fixed on the shaft of the left machine (usu-
ally reference machine), and sensALIGN sensor on the support posts of the bracket fixed on the shaft
of the right machine (usually moveable machine) as viewed from normal working position. Before
mounting both sensALIGN laser and sensor, make sure that the yellow clamping levers are in the
open position by placing them to the front. This enables components to slide onto the support posts.
Fix both sensALIGN laser and sensor onto the respective support posts by locking the yellow clamp-
ing levers. Lock the levers by pushing them backwards until they rest on the stoppers.
Ensure that the laser can pass over or through the coupling and is not blocked.
Both sensALIGN laser and sensor should be at the same height, as low as possible, yet just high
enough for the beam to clear the coupling flange. They should also visually appear to be rotationally
aligned to each other.
Make the final adjustments, loosening the brackets slightly if necessary, then rotating them and re-tight-
ening.
