PS Automation PSF Series User Manual

10

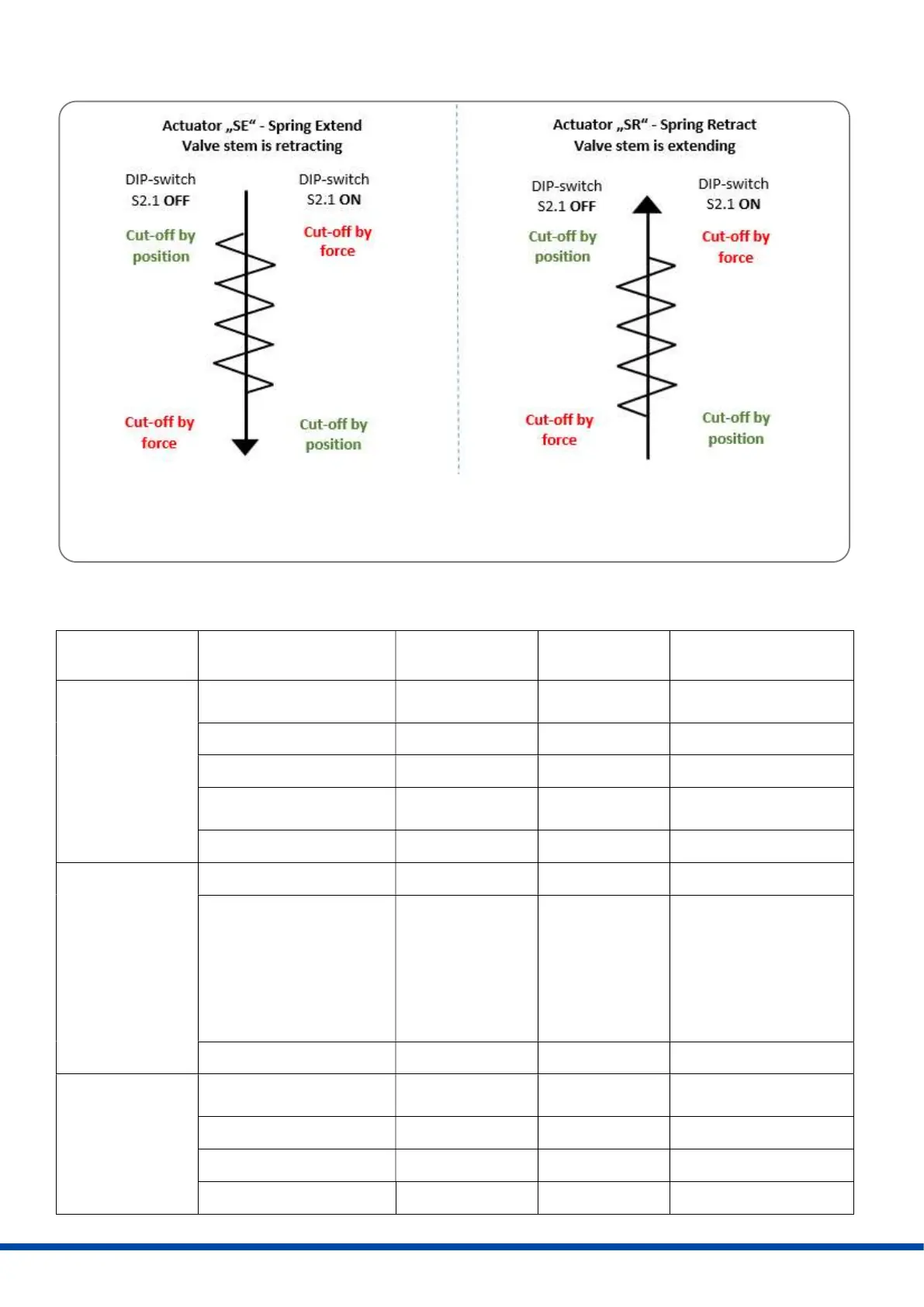

10.2 Operating direction
10.3 Operator push button
Function Action push button B1 push button B2 LED sequence
Manual operation
Activate > Push 3 seconds
> Push 3
seconds
Both LEDs
are
flashing
alternately
Retract valve stem Push Green LED is flashing
Extend valve stem Push Red LED is flashing
Stop
Both LEDs are flashing
alternately
Exit Push 3 seconds Push 3 seconds Red or green LED is on
Automatic
commissioning
Start Push 7 seconds Both LEDs are on
Commissioning finished
Green LED is flashing 7x
(if commissioning is
finished),
green LED is flashing
quickly
(if commissioning
failed)
Exit Push 1 x Red or green LED is on
Manual
commissioning
Activate Push 7 seconds
Both LEDs are
flashing
alternately
Rectract valve stem Push Green LED is flashing
Extend valve stem Push Red LED is flashing
Start Push 3 seconds Push 3 seconds Both LEDs are on
SE = Spring Extend: Extend actuator stem / retract valve stem
SR = Spring R
etract
: Retract actuator stem / extend valve stem
Figure
7
:
Operating direction
