9.2 Wiring diagram

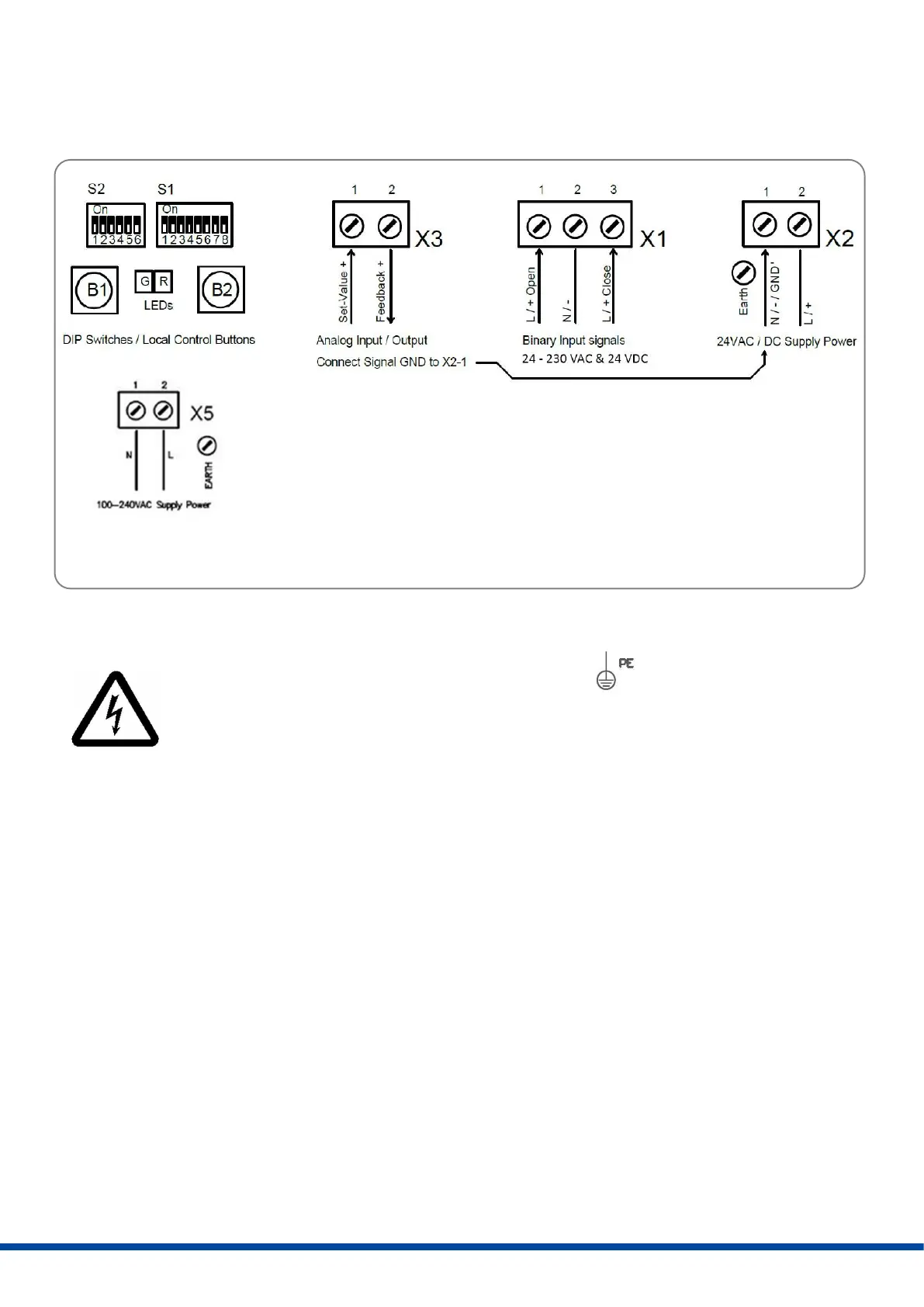

Figure 6 indicates the electrical connections for standard actuators. The wiring diagram inside the actuator is binding
for the specific actuator wiring. For any optional accessories, see the separate wiring diagram in the corresponding
installation instructions.
*optional
PE earth connection has to be connected to gear casing at !
Ensure that all connecting cables are stripped to the correct length so that they are protected
against electric shock.
Figure
6
:
Wiring diagram
