* Loosen the torque setting screws (Fehler!
Verweisquelle konnte nicht gefunden
werden., item 3) and turn the switch
brackets to the required position.
* Fix this positions by tightening the screws.
Item 1: Switch bracket „OPEN“
Item 2: Switch bracket „CLOSE“
Item 3: Fixing screws
There are marks on both switch brackets.
When moving those marks against the center of the set screw, the following torque adjustments can be achieved
(Figure 15Fehler! Verweisquelle konnte nicht gefunden werden.):
PSQ103 PSQ203 PSQ503 PSQ703 PSQ1003 PSQ1503 PSQ2003 PSQ2803
Mark Torque Torque Torque Torque Torque Torque Torque Torque
End position 100% 100% 100% 100% 100% 100% 100% 100%
1 90% 85% 85% - 90% 85% 85% -
2 80% 70% 75% 85% 75% 70% 75% 85%
3 70% 55% 60% 75% 65% 55% 60% 75%
4 60% - 50% 65% 55% - 50% 65%
5 50% - - 55% - - - 55%
1
2
3
4
5
1
2
3
4
5

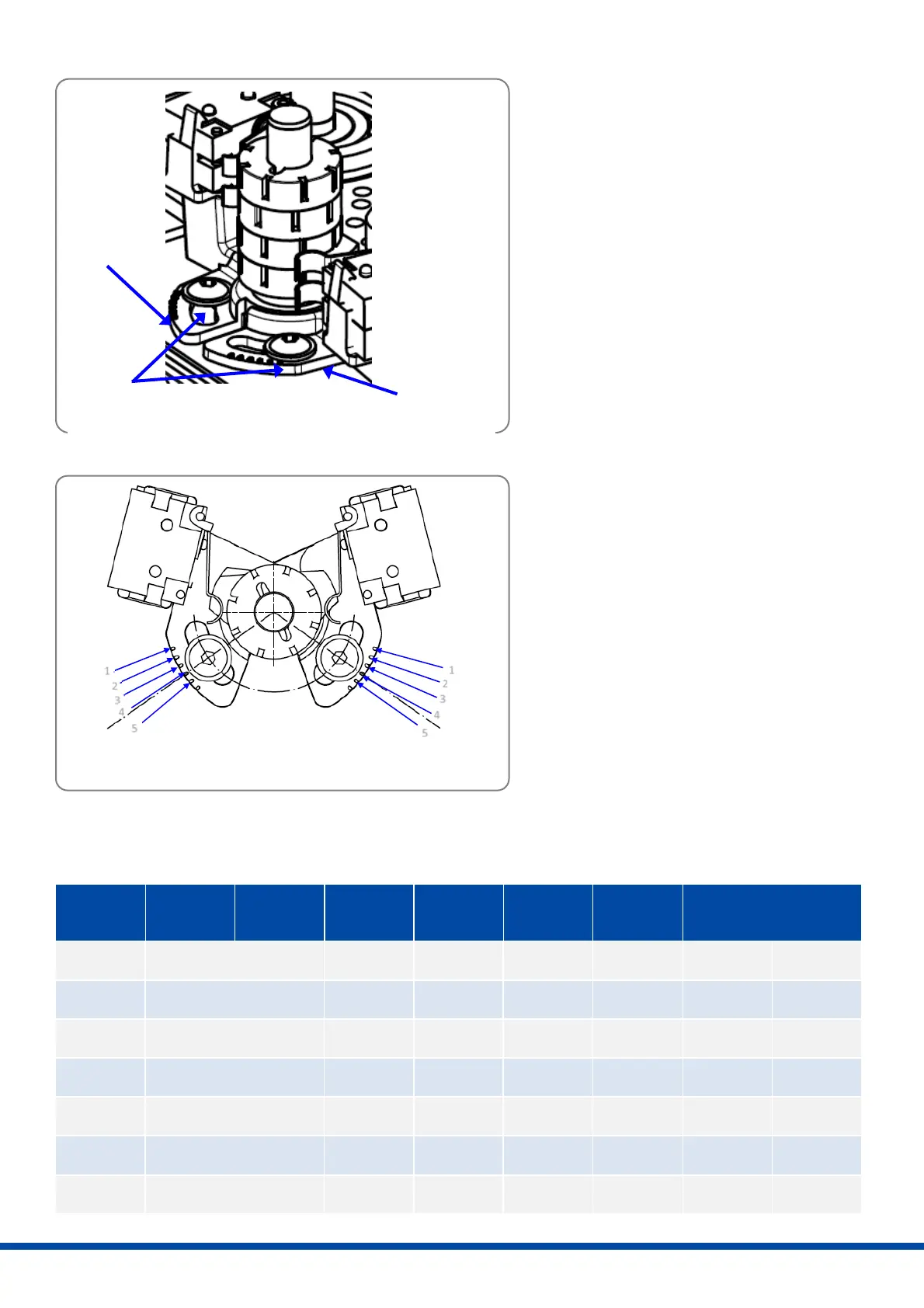

Figure 13: Brackets holding the switches PSQ103-1503
1
3
2
Figure 14: Brackets holding the switches PSQ2003/2803
Figure 15: Torque setting (shown at mark 4)
