PS Automation PSQ703 User Manual

5
PSQ103-1503
PSQ2003-2803

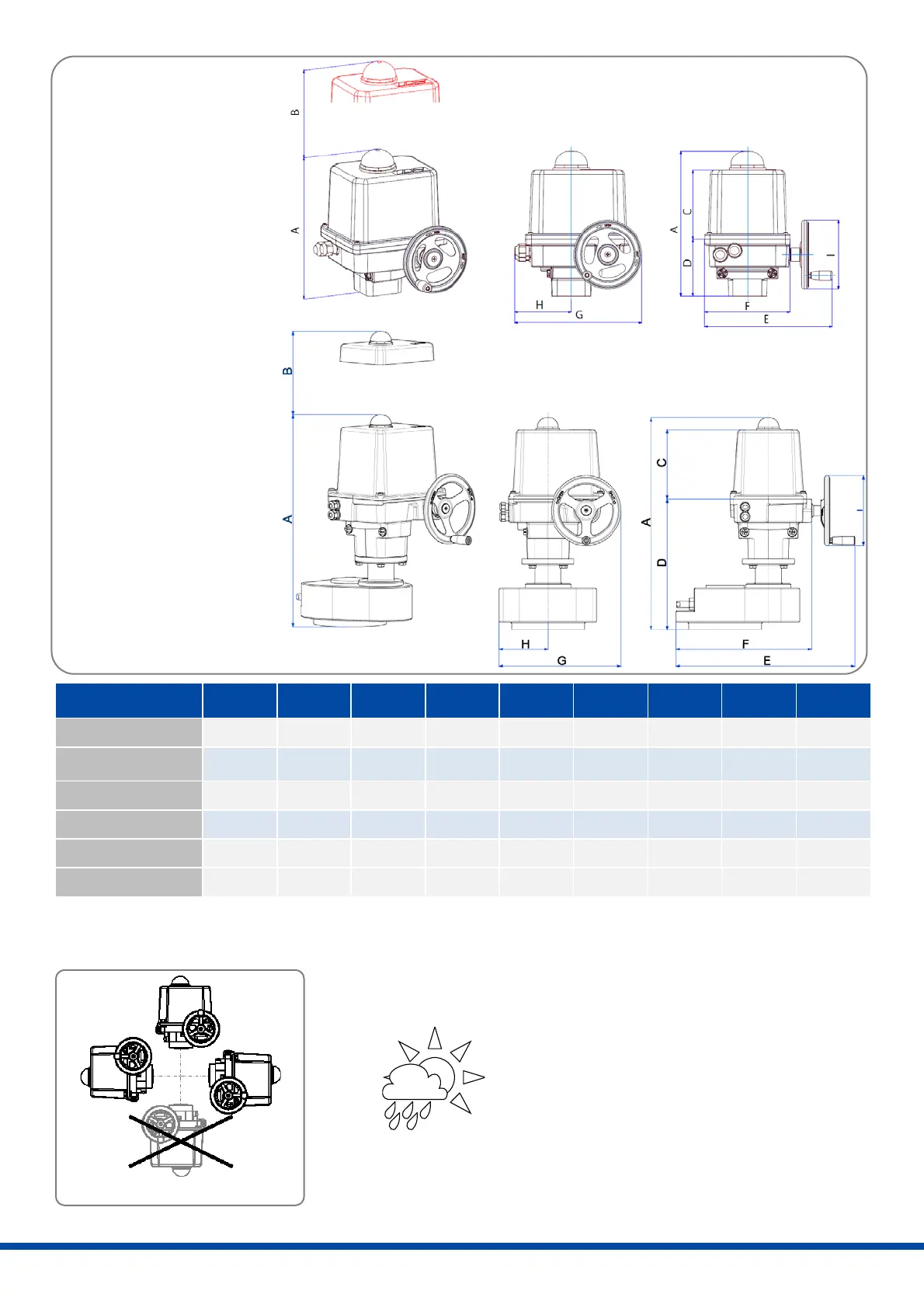

Figure 1: Installation dimensions
Dimensions A B C D E F G H I
PSQ103 268 161 128 104,5 236 158 244 114 125
PSQ203 355 228 194 122,5 307 185 292 112 200
PSQ503/703 406 240 198 171,5 358 234 350 141 200
PSQ1003 406/409 240 198 171,5 287 234 375 141 250
PSQ1503 406/409 240 198 173 275 234 375 141 250
PSQ2003/2803 608 240 198 374,5 514 390 350 140 200
4.1 Installation position
Outdoor usage
When using actuators in environments with high
temperature fluctuations or high humidity, we
suggest a heating resistor and an increased IP
protection to be fitted to prevent the build-up of
condensation within the enclosure (accessories).
