PSG PSG-2000 - Page 30

30

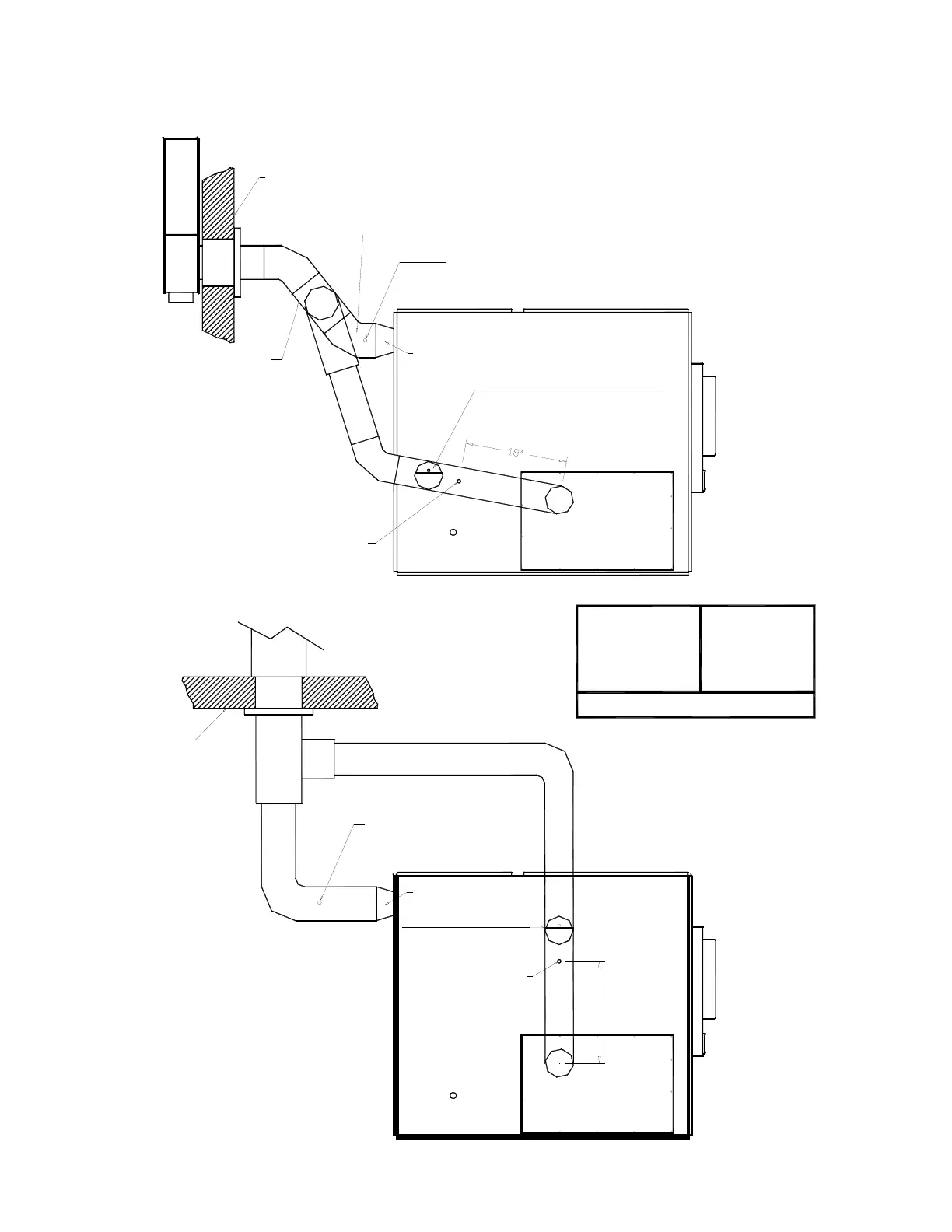

FOR PSG/UH-3000
Ø7"
Ø7"
18"
FIGURE #2
FIGURE #1
T CONNECTOR
FURNACE TYPE CHIMNEY PIPE
DIAMETER
PSG 3000 *7"
*REQUIRE A FLUE PIPE REDUCER
VERIFICATION HOLE
FOR OIL COMBUSTION
BAROMETRIC DAMPER 5"
DRAFT 0.02" W.C. TO 0.04" W.C.
REDUCER 7" TO 6"
MINIMUM DRAFT IN
WOOD FLUE PIPE
0.04" W.C.
CEILING
VERIFICATION HOLE
FOR OIL COMBUSTION
BAROMETRIC DAMPER 5"
DRAFT 0.02" W.C. TO 0.04" W.C.
REDUCER 7" TO 6"
WALL
ELBOW 45°
MINIMUM DRAUGHT IN
WOOD FLUE PIPE
0.04" W.C.
