PTW NORMI 13 - Figure 2: NORMI 13 Test Object

NORMI 13 (T42023)
Operating Manual - Description of the Test Object
14 D703.131.00/03 en
5
4
5
6 7
8 5
3
2
1

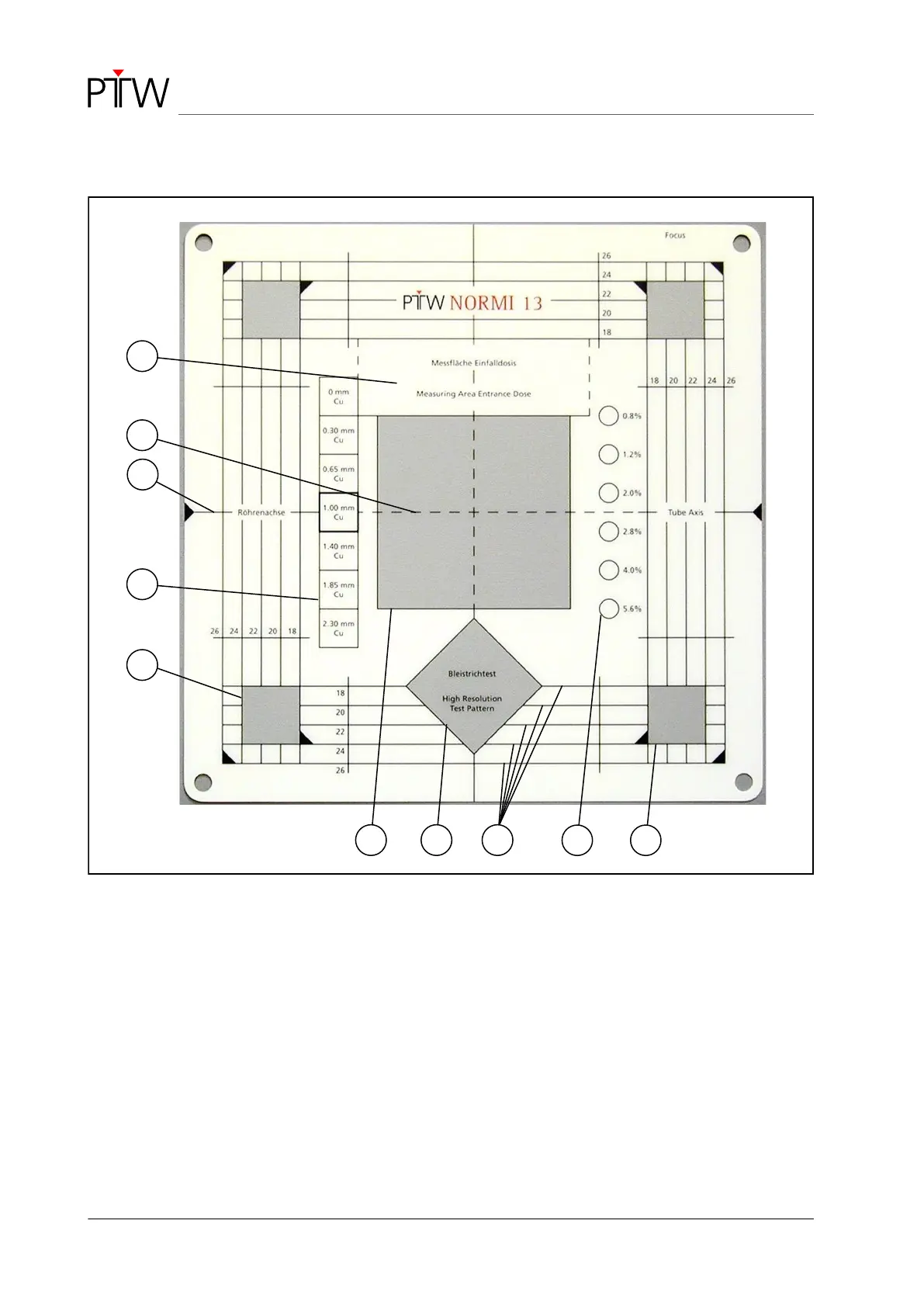

Figure 2: NORMI 13 test object
1
Dose measurement area, marking not
radiopaque
2
Crosshairs for central alignment, not
radiopaque
3
X-ray tube axis
4
Dynamic steps
5
Free area for signal normalization
6
X-ray test pattern for spatial resolution
7
Radiation-absorbing line marks for light field
adjustment
8
Low contrast objects for contrast resolution
