NORMI 13 (T42023)
Technical Manual - Technical Specifications
D703.131.00/03 en 35
5.2.2 Wall Stand Holder T20018
Device designation Wall stand holder, T20018
Manufacturer PTW-Freiburg
Intended use mechanical accessory for bucky mounting device T20005
for fixing the test objects (e.g., NORMI RAD/FLU or NORMI 13) to
the wall bucky
Dimensions refer to Figure 10
clamping range for test object 25 mm
Material rails: PVC (polyvinyl chloride)
screws: POM (polyoxymethylene)
Weight approx. 0.6 kg

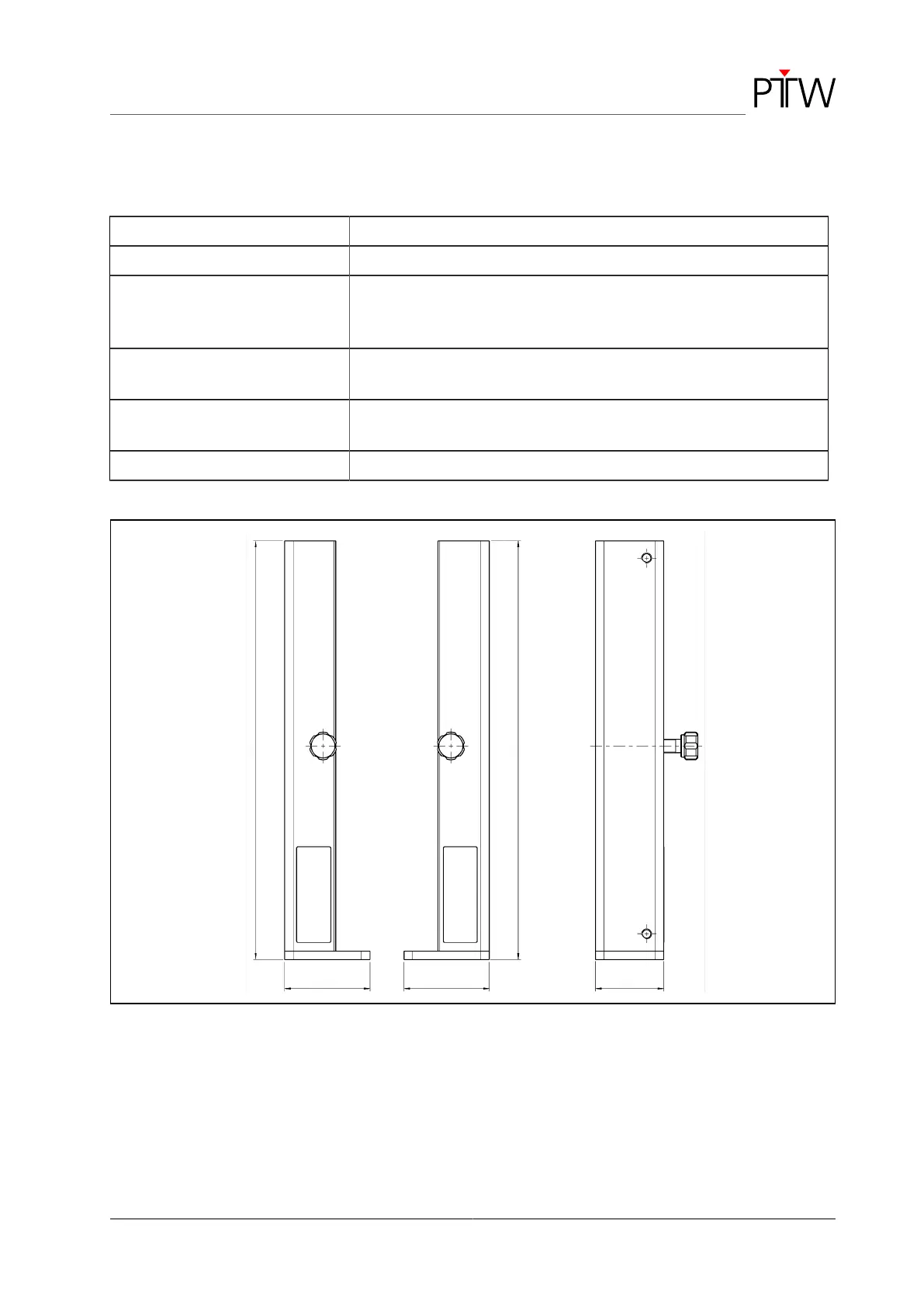

Figure 10: Drawing wall stand holder T20018 (dimensions in mm)
