NORMI 13 (T42023)
Technical Manual - Technical Specifications
34 D703.131.00/03 en
5.2 Accessories
5.2.1 Bucky Mounting Device T20005
Device designation Bucky mounting device for diagnostic test object, T20005
Manufacturer PTW-Freiburg
Intended use mechanical accessory for test objects (e.g., NORMI 13 with
PMMA absorber for fixing the test objects to the wall bucky)
Dimensions refer to Figure 9 / clamping range for wall (47...144) mm
Material angle bracket: aluminum
star knob bolts: steel, plastic handle
Weight approx. 0.8 kg
47-144
150
393
373
117,5
117,5

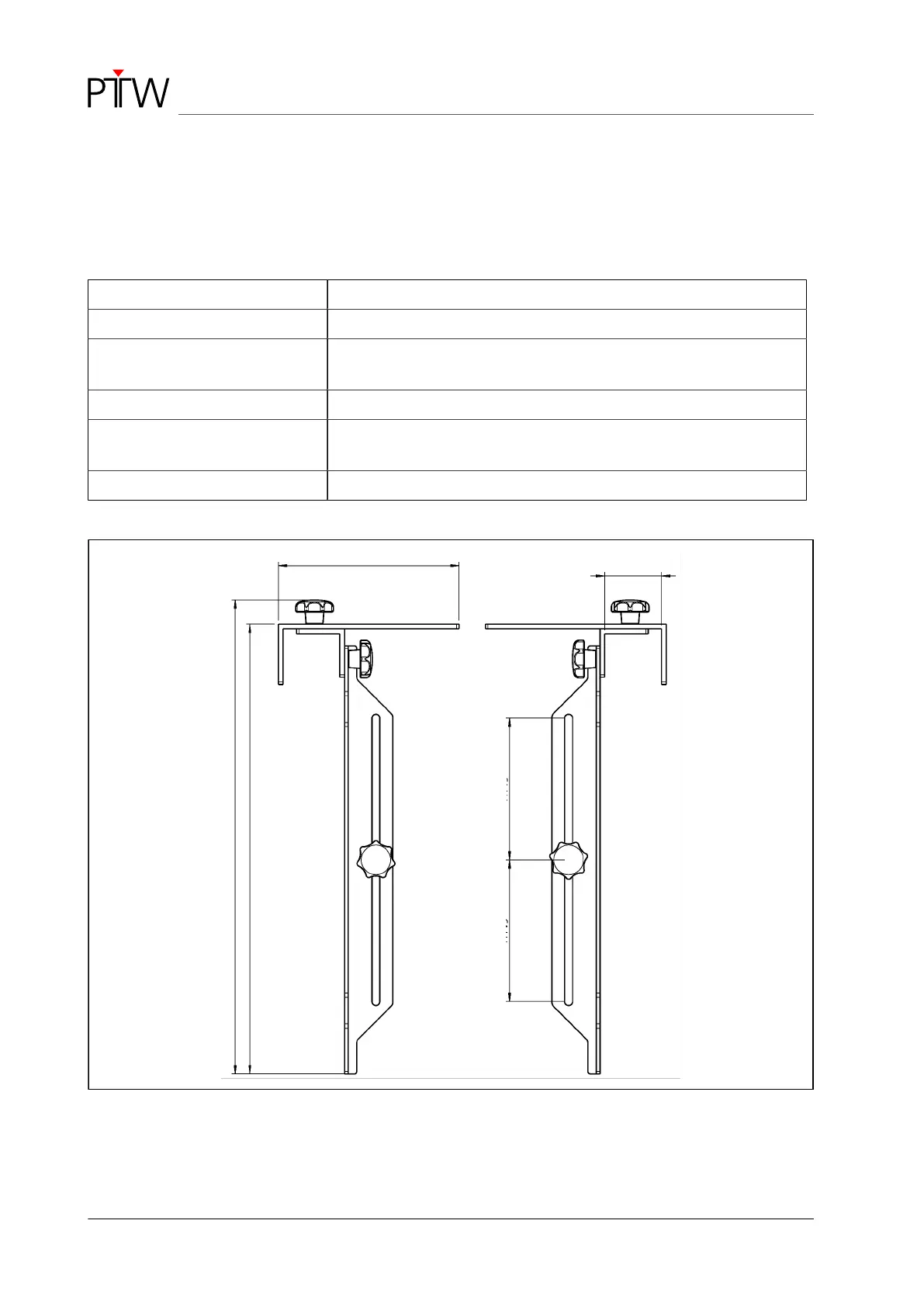

Figure 9: Drawing bucky mounting device T20005 (dimensions in mm)
