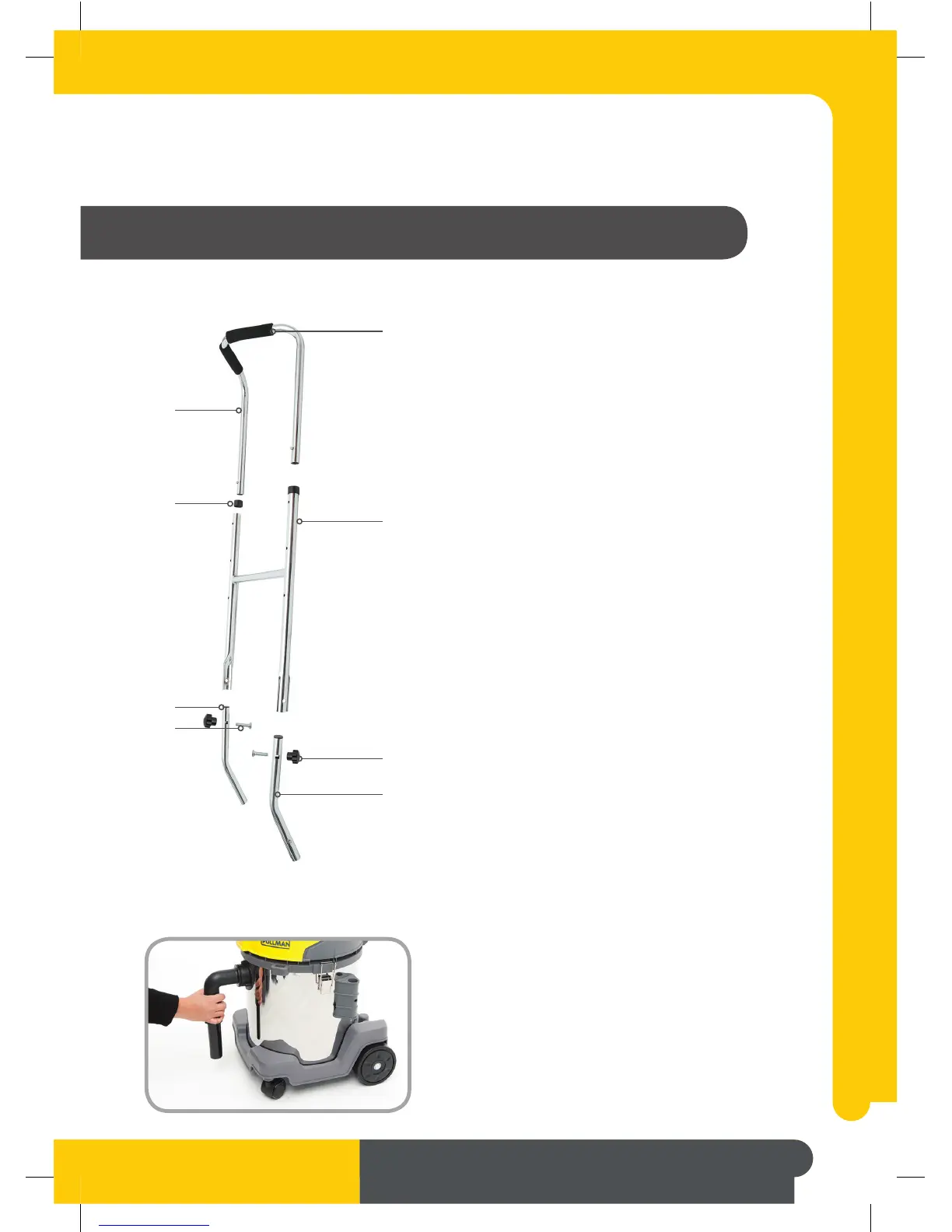

ASSEMBLY (WITH GULPER OUTRIGGER)
Assemble the handle as per diagram shown.
1. Insert handrail into the frame of the trolley.
2. Assemble bolt and screw star grip knob
(M8) according.
3. The handrail is telescopic and can be adjusted in
accordance with user height. There are
3 different height options.
- Choose the handrail height required.
- Push down on the locking pins on the handrail
(both left and right sides) and slide the handrail
up or down.
- Ensure locking pins are engaged into the locking
holes on each side of the handrail.
4. For storage, the handrail can also be folded down
over the lid of the cleaner.
Part 1
11.
13.
15.
16.
14.
12.
18.
17.
11. Upper Extension Tube
12. Handle Grip
13. Protective Cover
14. Lower Extension Tube
15. Plastic Cap
16. Bolt
17. Star Knob
18. Fixed Tube
1. Insert the bend tube pre-assembly into the hose inlet
on the cleaner.
Part 2
7
To Next Page
