Pullmaster M12 Series - Typical Hydraulic Circuit

PAGE 8

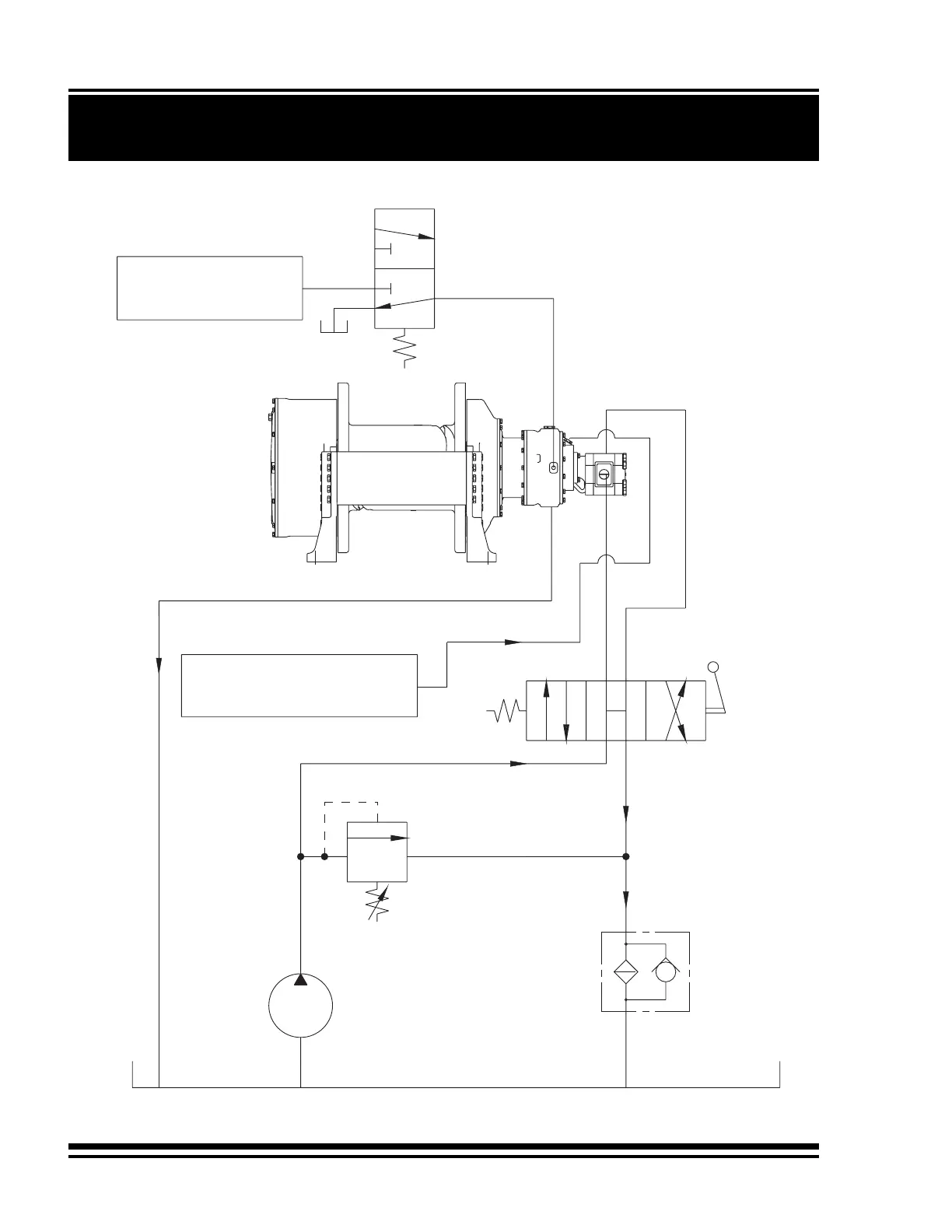

TYPICAL HYDRAULIC CIRCUIT
HC-H/M75-STD
EXTERNAL BRAKE
RELEASE 800 PSI
(55 BAR) AT 1 L/MIN
FILTER
PUMP
HYDRAULIC
RESERVOIR
CONTROL VALVE
(MOTOR SPOOL)
4-WAY SPRING
RETURN TO CENTER
CIRCULATION RETURN
LINE (MUST GO DIRECT
TO RESERVOIR)
CIRCULATION SUPPLY LINE
H75:9(US)GPM (34 L/MIN)
M75:7(US)GPM (26 L/MIN)
PRESSURE
RELIEF VALVE
354 REV.030819
