PAGE 16
SERVICE INSTRUCTIONS CONTINUED
2) REMOVAL OF BRAKE, PRIMARY AND SECONDARY DRIVE SUB-ASSEMBLIES:
(Refer to Assembly drawing for item numbers.)
1) REMOVAL OF HYDRAULIC MOTOR:
(Refer to Parts Reference, APPENDIX B for item numbers)
1.1) Disconnect Brake Hose item 852 from Motor item 850.
1.2) Remove 4 Capscrews item 127 along with Lockwashers item 541 and carefully remove motor from Motor
Adaptor item 800. (Motor Drive Shaft item 730 may stay on motor shaft).
1.3) Discard O-Ring, item 819.

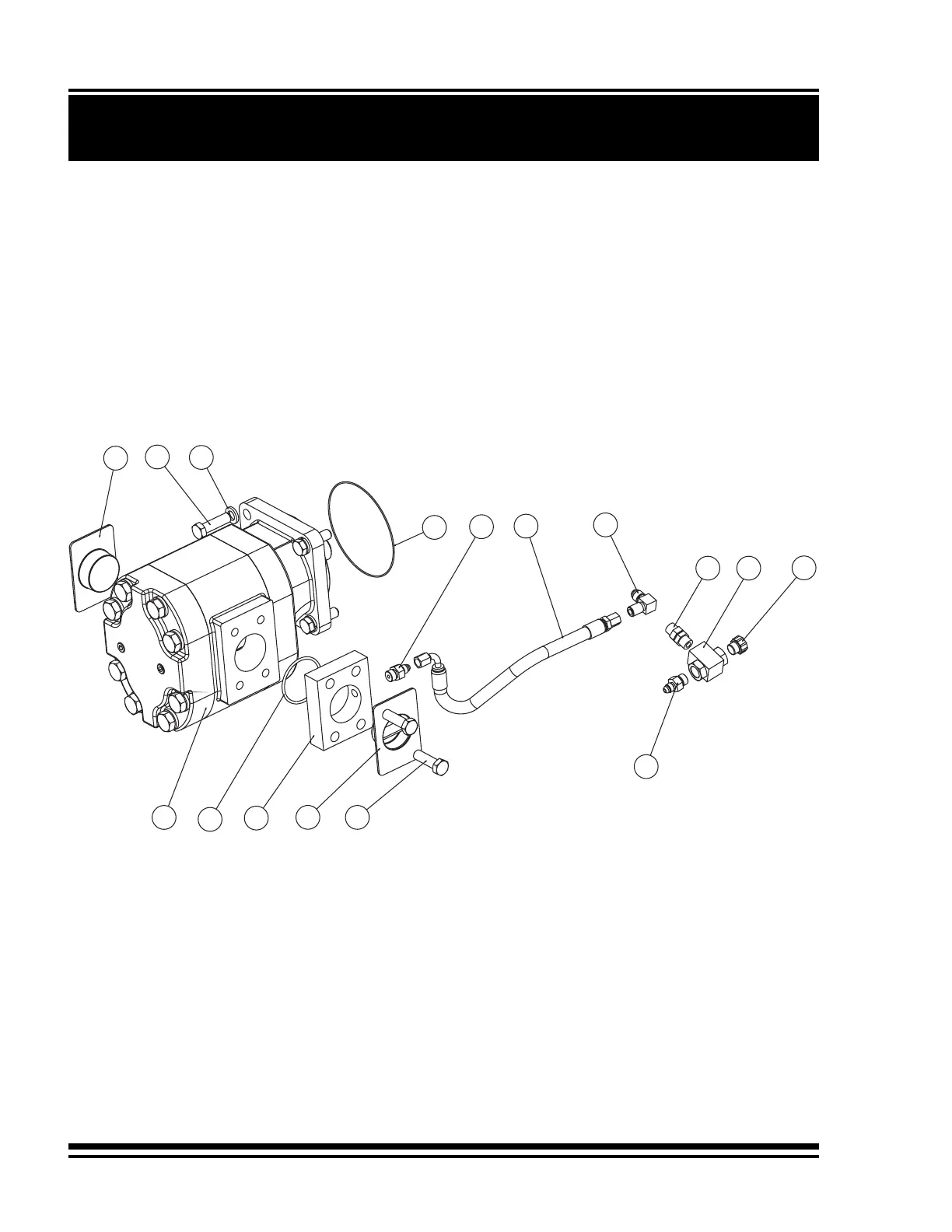

HYDRAULIC MOTOR
2.1) Remove 12 Capscrews item 537 along with 12 Lockwashers item 541 connecting Secondary Housing item 456
and Primary Housing item 701. Pull Brake Group (brake, primary drive and secondary drive) from Secondary
Housing item 456. Secondary Sun Gear item 490 may or may not stay with secondary drive.
2.2) Remove Secondary Sun Gear item 490 Circlip item 491 and Planet Hub-Stopper item 451.
* * These parts and description vary according to brake code.
Refer to APPENDIX B.
* Install these parts as shown for clockwise hoisting.
Install on opposite motor port for counter-clockwise
hoisting.
* *
* ** *
* *
862
860
861
858
*
*
*
*
*
541
127
955
819
858
852
853
850
859
854 955 537
* *
354 REV.030819
