PAGE 21
724
723
730
719
722
720
718 ** 1 SUB-ASSEMBLY BRAKE HUB
719 23536 1 CIRCLIP ROTOR CLIP SH-187
720 23865 1 BRAKE HUB
722 20455 1 SPRAG CLUTCH ALIGNER
723 25303 1 SPRAG CLUTCH
724 20421 1 SPRAG CLUTCH ALIGNER - RIGHT
730 23810 1 MOTOR DRIVE SHAFT
** PART NO. VARIES ACCORDING TO BRAKE CODE - REFER TO APPENDIX B.
7) DISASSEMBLY OF BRAKE HUB SUB-ASSEMBLY (item 718)
7.1 Disassemble Brake Hub Assembly by removing Circlip item 719, from Motor Drive Shaft item 730.
Remove Motor Drive Shaft from Brake Hub item 720. Remove Sprag Clutch Aligners item 722 and
724, and Sprag Clutch item 723.
SERVICE INSTRUCTIONS CONTINUED
MINOR SURFACE DEFECTS WHERE THE SPRAG CLUTCH ENGAGES THE
MOTOR DRIVE SHAFT AND BRAKE HUB, WILL RESULT IN BRAKE FAILURE
AND ALLOW THE LOAD TO DROP, CAUSING PROPERTY DAMAGE, SEVERE
INJURY OR DEATH. THROUGHLY INSPECT THESE AREAS AND, IF
NECESSARY, REPLACE MOTOR DRIVE SHAFT, SPRAG CLUTCH AND BRAKE
HUB AS A SET.
DANGER

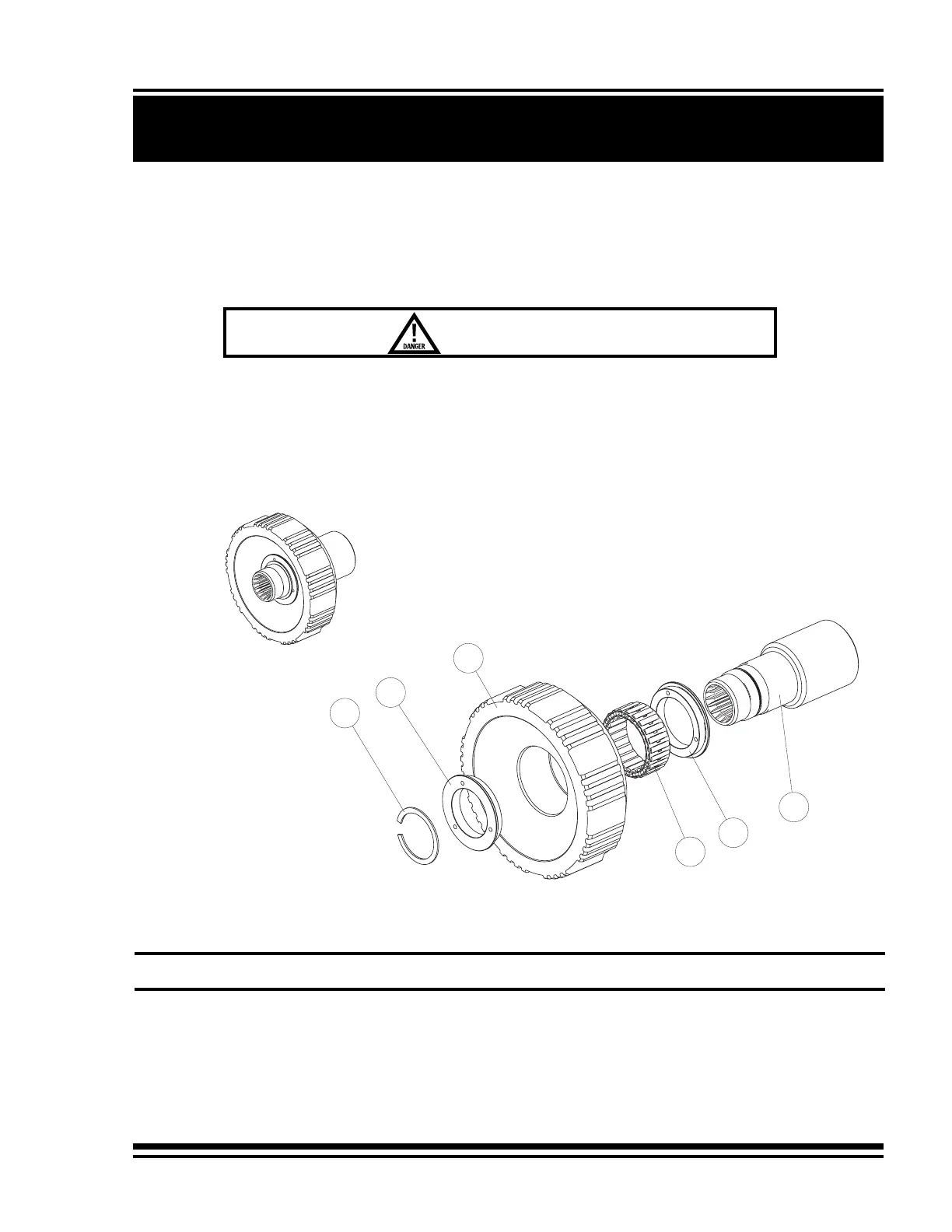

BRAKE HUB SUB-ASSEMBLY
354 REV.030819
