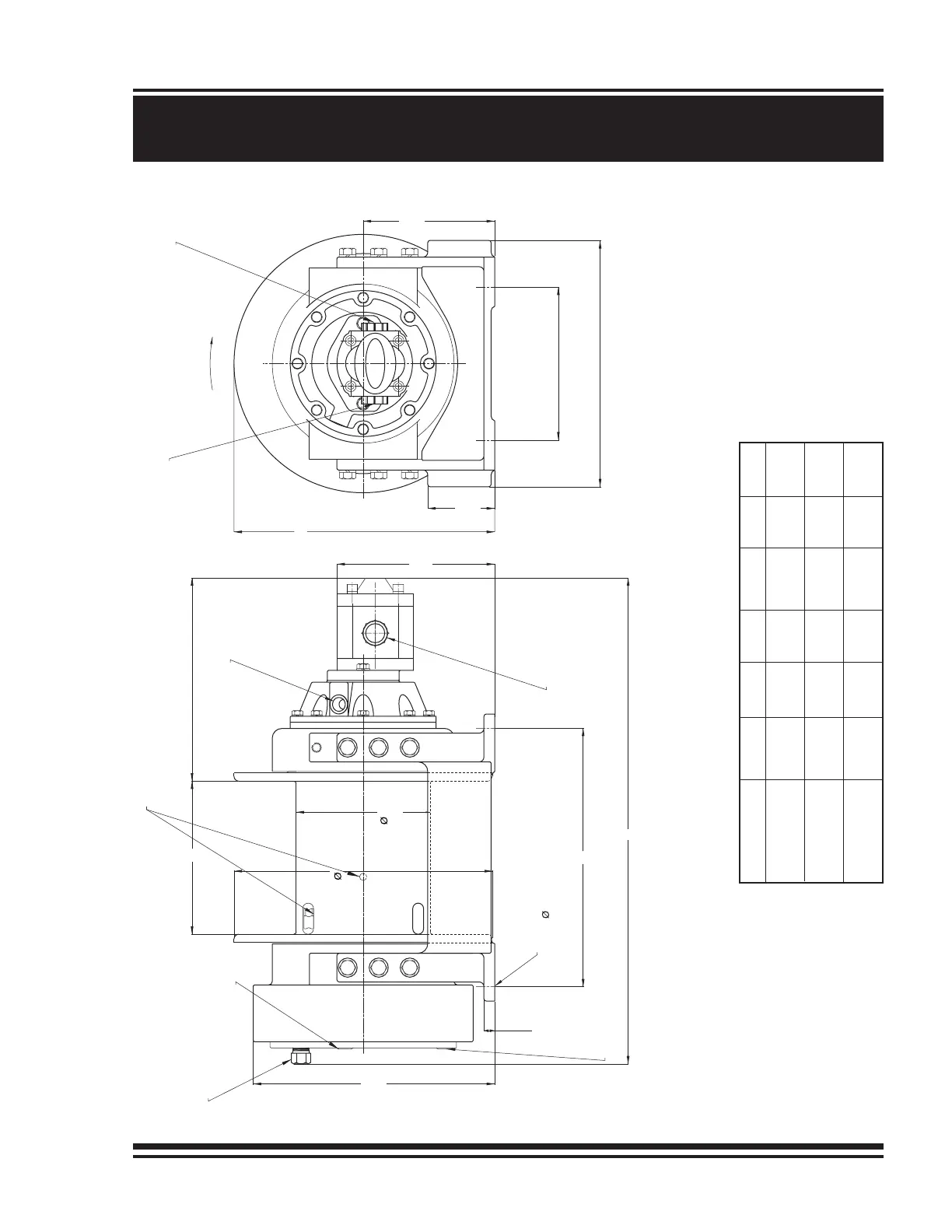

INSTALLATION DIMENSIONS
REV. 080130
DRUM CODE B C E H J UNITS
-1 11.5 8.0 12.6 13.500 25.4 in
292 203 321 342.90 645 mm
-2 13.5 8.0 13.6 13.500 25.4 in
343 203 346 342.90 645 mm
-4 13.5 12.0 13.6 17.500 29.4 in
343 305 346 444.50 747 mm
I1127
PRESSURIZE FOR CLOCKWISE ROTATION
PRESSURIZE FOR COUNTER-CLOCKWISE ROTATION
MOTOR PORTS 1-1/16-12UN-2B SAE O-RING BOSS
CIRCULATION RETURN PORT 1/2-14 NPT
FILLER HOLE 3/8-18 NPT IN ONE OF TWO LOCATIONS
DRAIN PORT 1/2-14 NPT
[270]
10.6
[209]
8.2
J
BREATHER RELIEF VALVE
CLOCKWISE
E
[89]
3.5
[175]
6.88
[203.2]
8.000
[327]
12.9
[14]
.56
[178]
[321]
12.6
C
H
FILLER PORT 1/2-14 NPT
B
7.0
4 MOUNTING HOLES 21/32 DIA [16.6] USE 5/8 MOUNTING BOLTS GRADE 8
STANDARD CABLE ANCHOR IS SUITABLE FOR 1/4 - 1/2" DIA WIRE ROPE
FOR SAFETY:
A MINIMUM OF 5 WRAPS OF WIRE ROPE MUST BE MAINTAINED AT ALL TIMES !
