SERVICE INSTRUCTIONS CONTINUED
11) DISASSEMBLY OF FINAL PLANETARY DRIVE (item 349).
If disassembly of Final Planetary Drive is required, proceed as follows:
11.1) Remove Circlip item 361, from Planet Pin item 360.
11.2) Press Planet Pin item 360, out of Planet Hub item 350.
11.3) Remove Planet Gear item 370, out of Planet Hub item 350.
11.4) Inspect Loose Rollers item 373 and two Thrust Washers item 371. Replace if necessary.
349 23750 1 SUB-ASSY FINAL DRIVE
350 23751 1 PLANET HUB H/M75 FINAL
360 21027 4 PLANET PIN M50 FINAL
361 25678 8 CIRCLIP ROTOR CLIP SH-215
370 21010 4 PLANET GEAR M50 FINAL
371 25677 8 THRUST WASHER INA # AS 5578
373 26630 120 LOOSE ROLLER

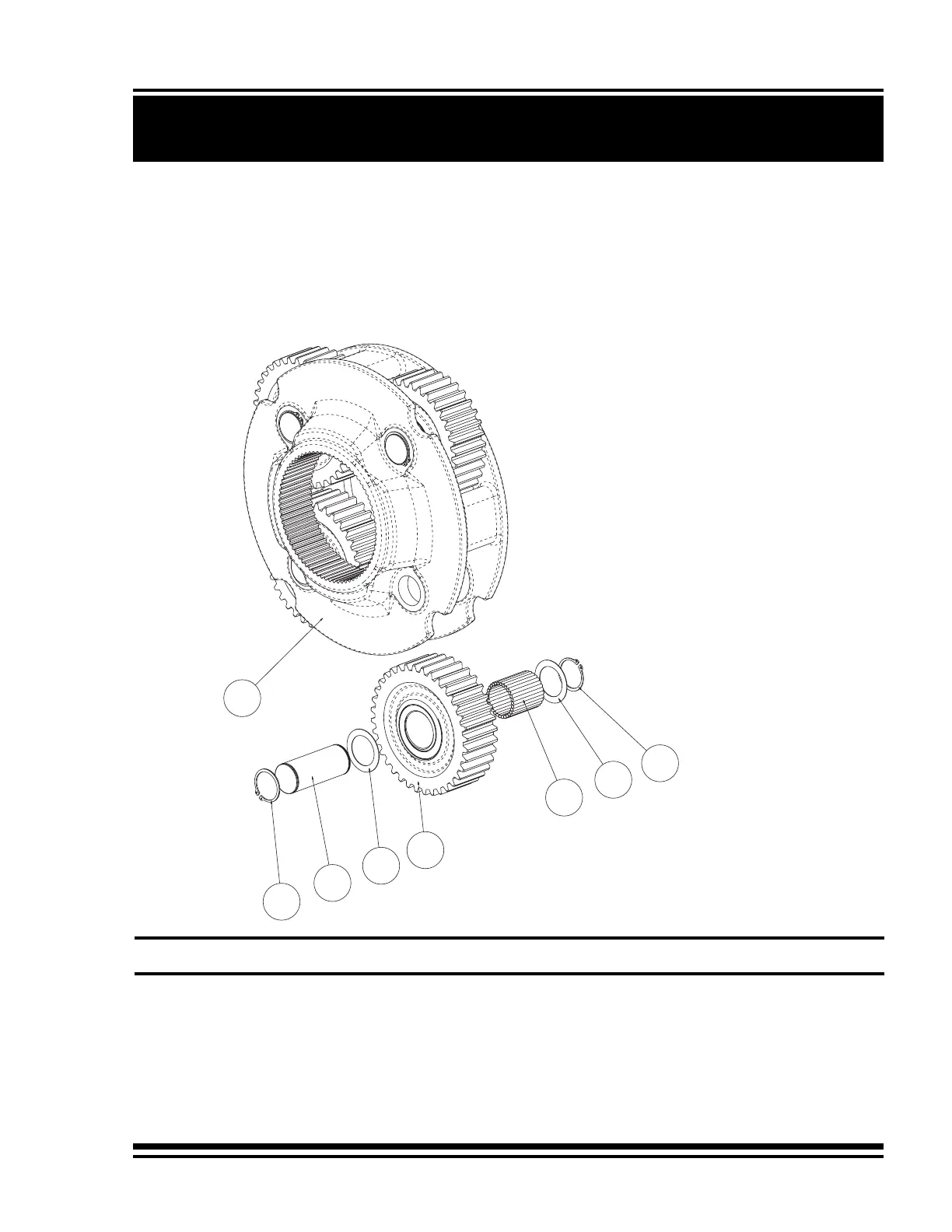

FINAL PLANETARY DRIVE (SUB-ASSEMBLY)
361
373
371
370
371
361
360
350
354 REV.030819
