Pullmaster M5 Series - Page 60

PAGE 7
HC-M8-B
247 REV.960301

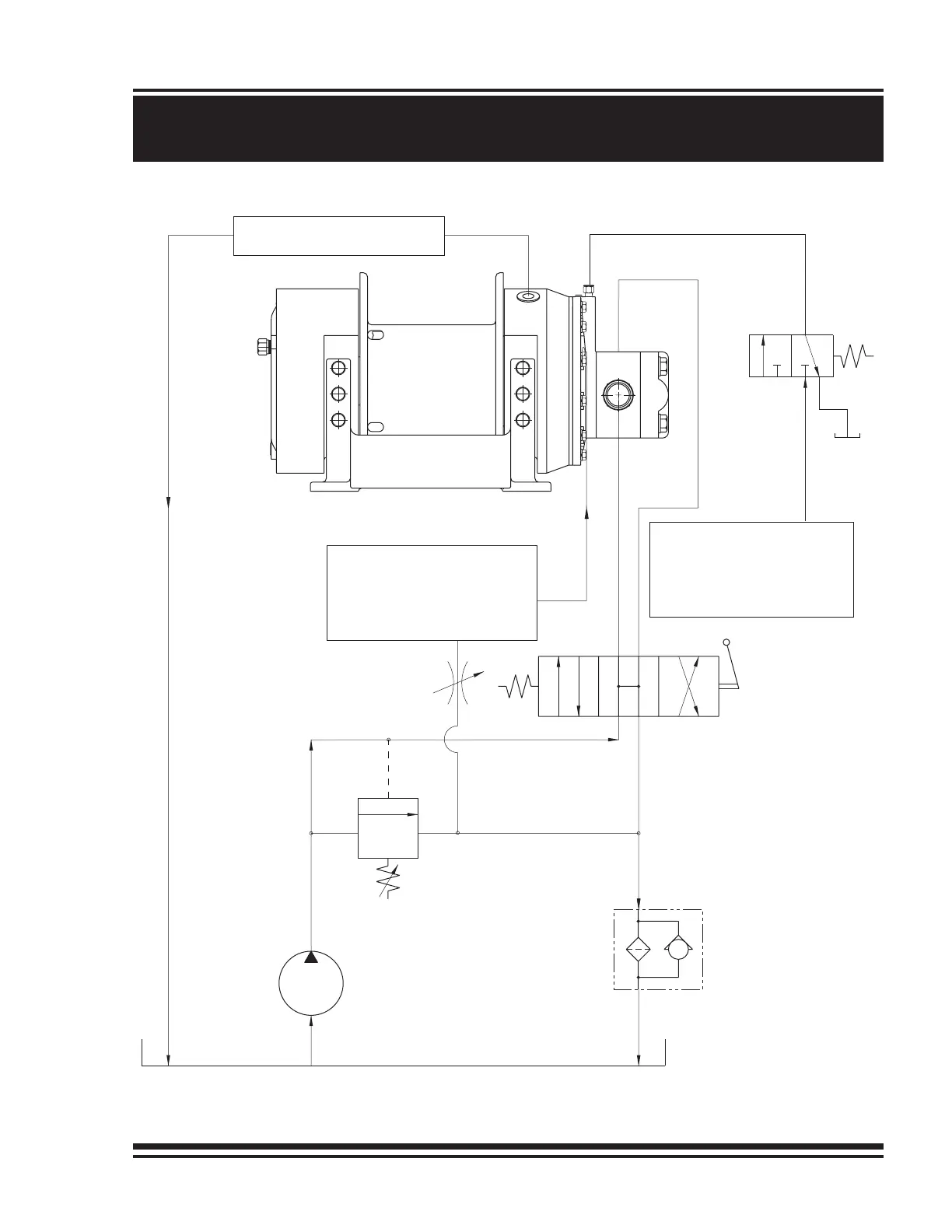

TYPICAL HYDRAULIC CIRCUIT
800 PSI [55 BAR]
2(US)GPM [8 L/MIN]
REQUIRED FOR MODELS
SUPPLIED WITH EXTERNAL
BRAKE RELEASE OPTION
FILTER
HYDRAULIC
PUMP
RESERVOIR
CONTROL VALVE
(MOTOR SPOOL)
4-WAY SPRING
RETURN TO CENTER
PRESSURE
RELIEF VALVE
CIRCULATION SUPPLY LINE
M8: 3 (US) GPM [11 LPM]
H8: 4 (US) GPM [15 LPM]
(EXTERNAL CIRCULATION
MODELS ONLY)
CIRCULATION RETURN LINE
DIRECT TO RESERVOIR
