PAGE 10
The initial installation or mounting of a PULLMASTER planetary winch is critically important for proper operation
and performance. If the winch is mounted to an uneven surface, the centre line of the unit can be distorted to a
point where the winch will not operate in either direction. It is therefore very important that the following instructions
are observed when a PULLMASTER planetary winch is installed:
1) Make certain that the mounting platform is sufficiently strong in order to avoid deflection when a load is lifted.

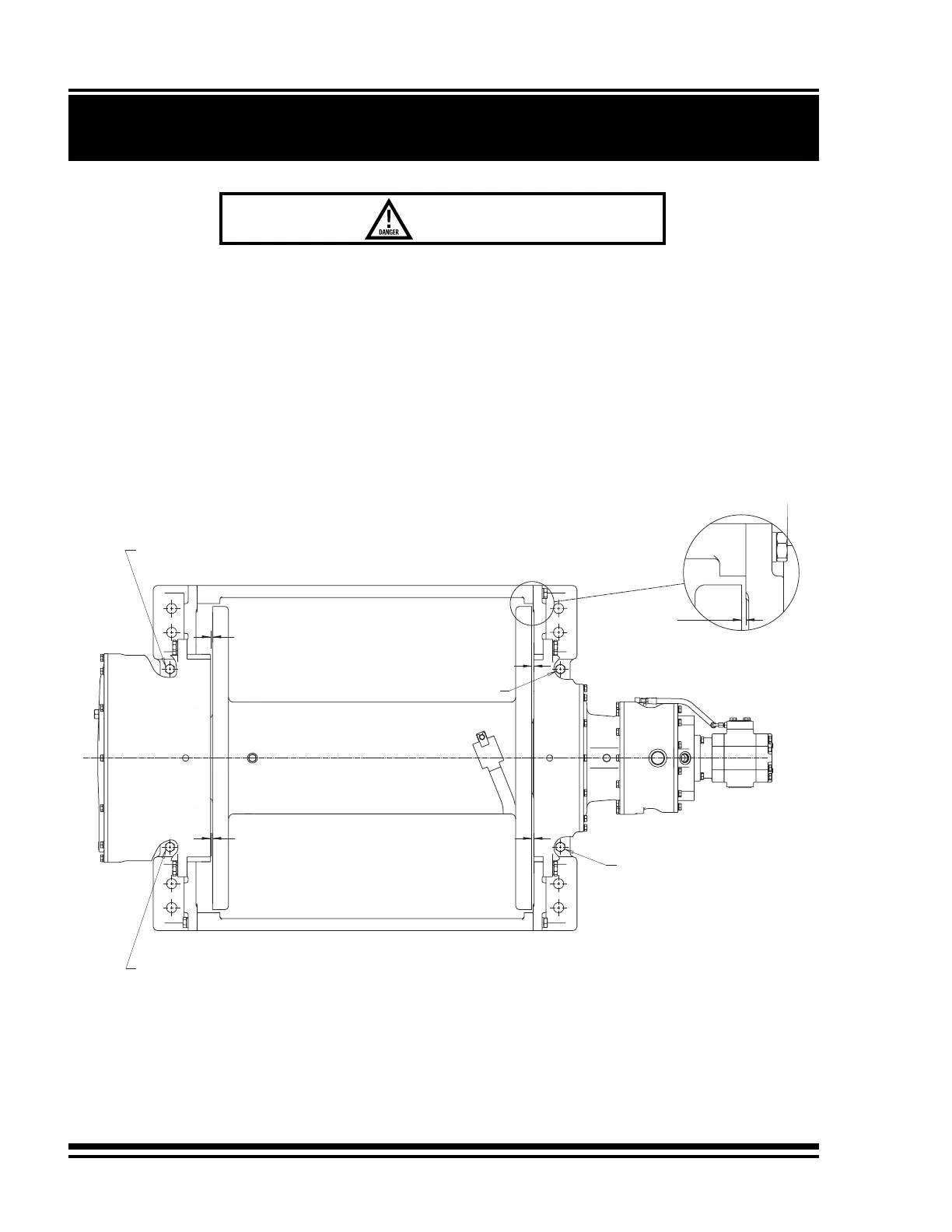

2) Set the winch on the mounting platform and check Gap “A”, “B”, “C” and “D”.
3) If Gap “A” is within 0.01” to Gap “B” and Gap “C” is within 0.01” to Gap “D”, proceed to step 5. If Gaps are outside
this limit, proceed to step 4.
Note: Difference between Gaps “A” and “B” and Gaps “C” and “D” may not be equal.
FAILURE TO FOLLOW INSTALLATION INSTRUCTIONS WILL
RESULT IN PROPERTY DAMAGE, SEVERE INJURY OR DEATH.
DANGER
INSTALLATION INSTRUCTIONS
SI1094-2
DRUM
CABLE
PLATE
BASE
GAP "B"
GAP "A"
GAP "D"
GAPS BETWEEN HOUSINGS AND DRUM FLANGES
NOTE: FOR ALL DRUMS EXCEPT -1 MEASURE
GAP "C"
TIE BAR
GAP
DETAIL FOR -1 DRUM
JACKING SCREW "A"
JACKING SCREW "B"
JACKING SCREW "C"
JACKING SCREW "D"
354 REV.030819
