PAGE 7

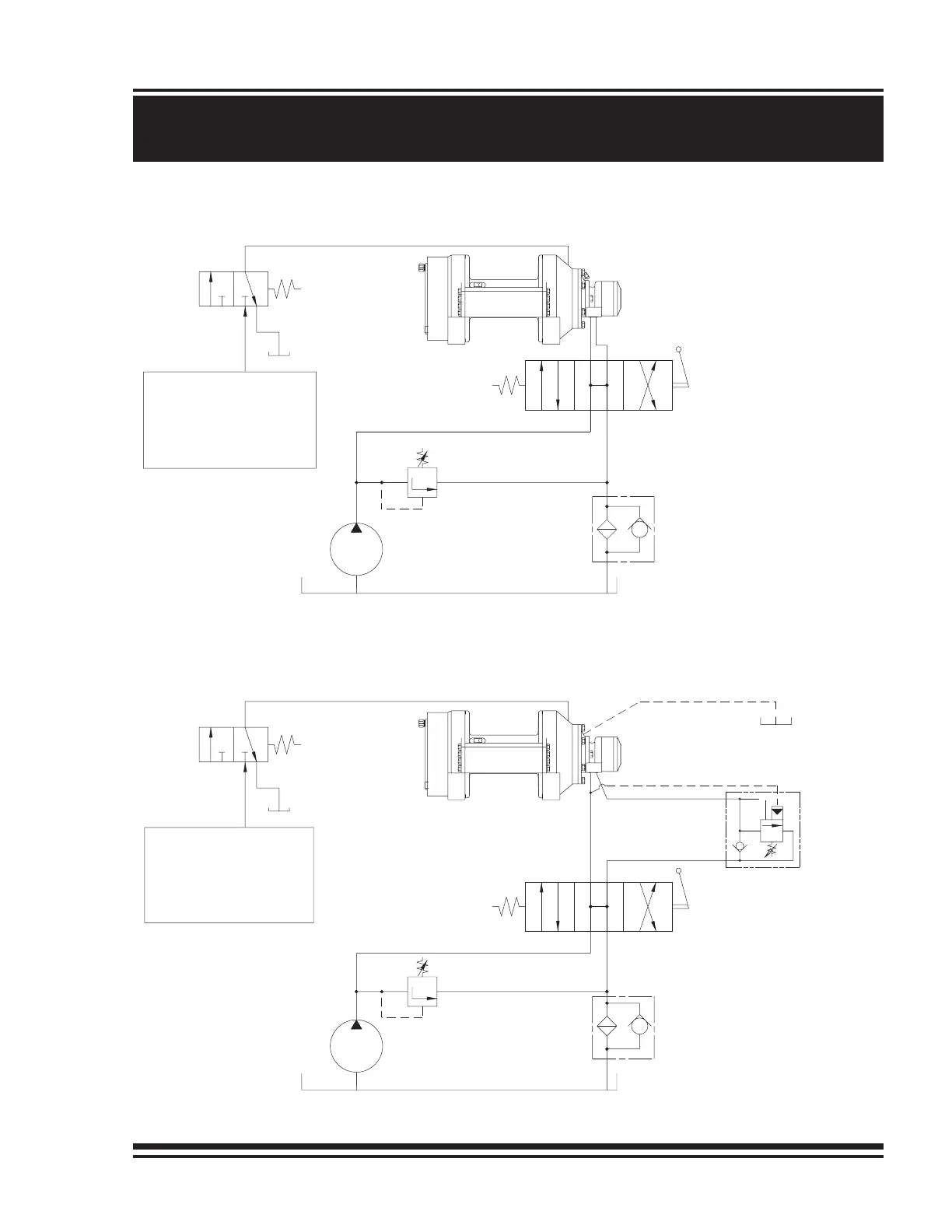

TYPICAL HYDRAULIC CIRCUITS
HC-M6-B
PULLING APPLICATIONS:
HOISTING APPLICATIONS:
184 REV.030402
COUNTER-
BALANCE
VALVE
LOWERING
HOISTING
PRESSURE
RELIEF VALVE
CONTROL VALVE
(MOTOR SPOOL)
4-WAY SPRING
RETURN TO CENTER
RESERVOIR
HYDRAULIC
PUMP
FILTER
800 PSI [55 BAR]
3 (US) GPM [12 L/MIN]
REQUIRED FOR MODELS
SUPPLIED WITH EXTERNAL
BRAKE RELEASE OPTION
800 PSI [55 BAR]
3 (US)GPM [12 L/MIN]
REQUIRED FOR MODELS
SUPPLIED WITH EXTERNAL
BRAKE RELEASE OPTION
FILTER
HYDRAULIC
PUMP
RESERVOIR
CONTROL VALVE
(MOTOR SPOOL)
4-WAY SPRING
RETURN TO CENTER
PRESSURE
RELIEF VALVE
