Pullmaster M8 Series - Page 188

PAGE 7
HC-M50-C
253 REV.030228

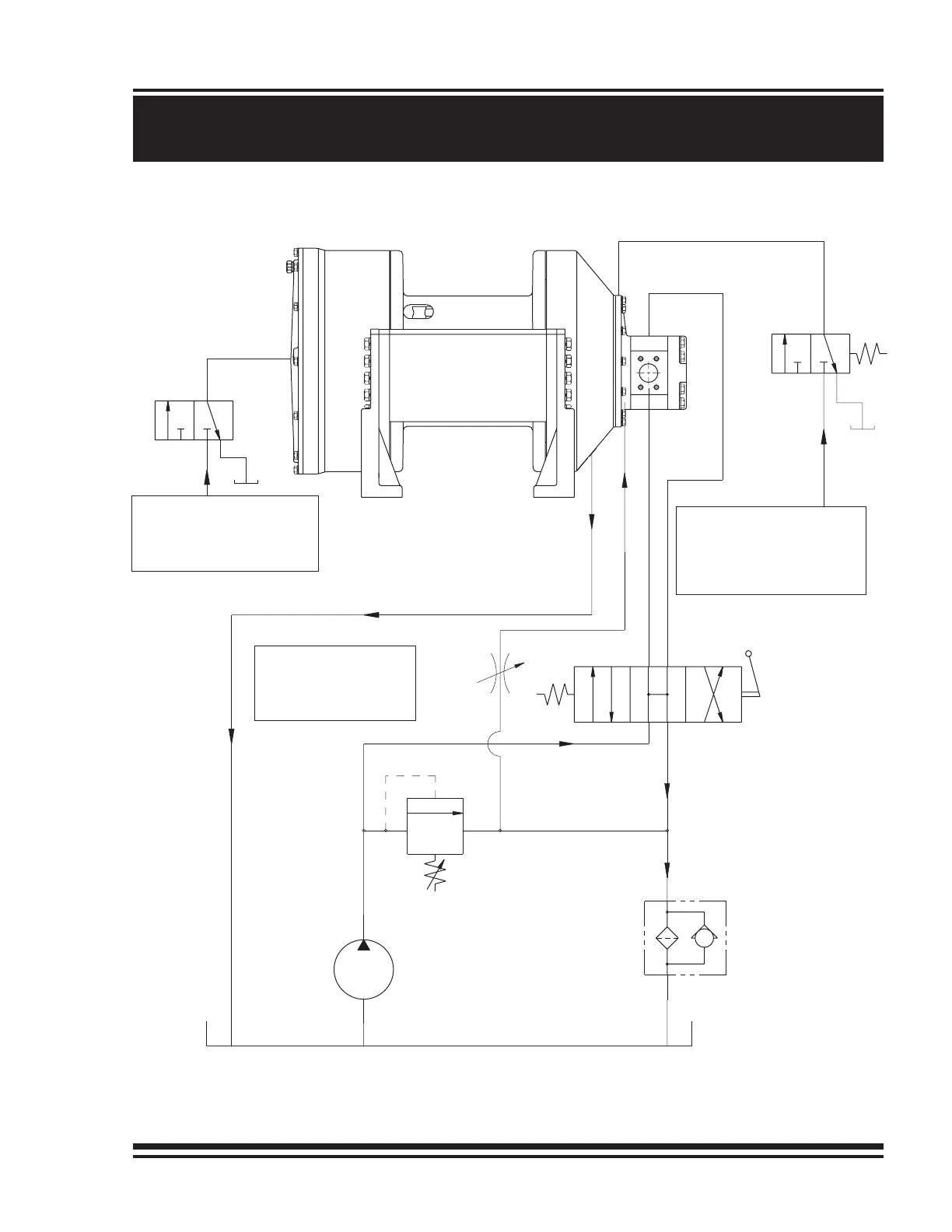

TYPICAL HYDRAULIC CIRCUIT
800 PSI [55 BAR]
2(US)GPM [8 L/MIN]
REQUIRED FOR MODELS
SUPPLIED WITH EXTERNAL
BRAKE RELEASE OPTION
FILTER
HYDRAULIC
PUMP
RESERVOIR
CONTROL VALVE
(MOTOR SPOOL)
4-WAY SPRING
RETURN TO CENTER
PRESSURE
RELIEF VALVE
CIRCULATION RETURN LINE
(MUST GO DIRECT TO RESERVOIR)
CIRCULATION SUPPLY LINE
M50: 5(US)GPM - 19 L/MIN
H50: 7(US)GPM - 26 L/MIN
(EXTERNAL CIRCULATION
MODELS ONLY)
400 PSI (28 BAR)
PRESSURE REQUIRED
FOR MODELS SUPPLIED
WITH FREESPOOL OPTION
