Pullmaster M8 Series - Service Instructions 6

PAGE 20
SERVICE INSTRUCTIONS CONTINUED

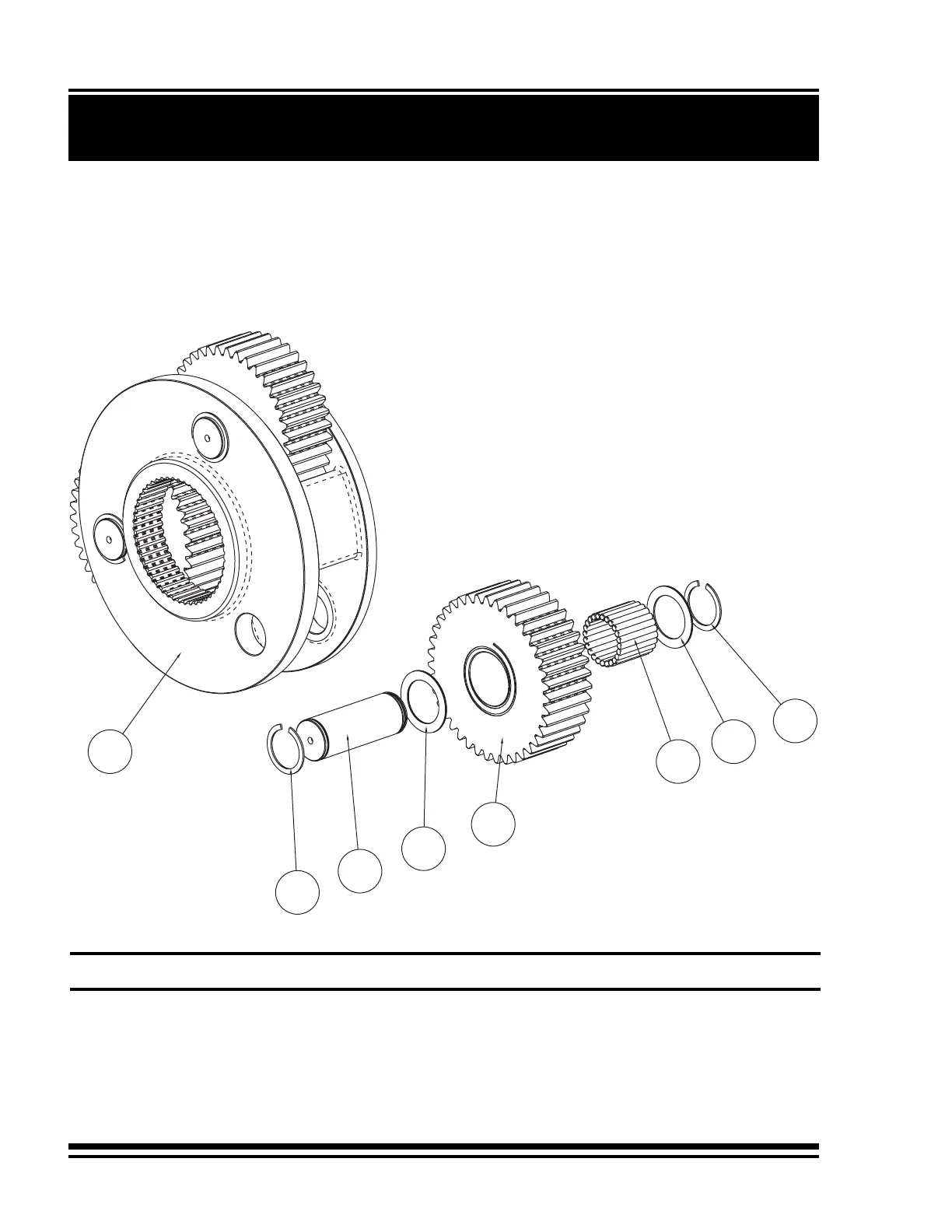

6) DISASSEMBLY OF SECONDARY PLANETARY DRIVE (item 299).
6.1 Remove Circlip item 311, from Planet Pin item 310 and press Planet Pin out of Primary Planet Hub
item 300. Remove Primary Planet Gear item 320, together with Loose Rollers item 323 and Thrust
Washers item 321.
6.2 Inspect Sungear Stopper item 344 for wear, replace if thickness is less than 0.44 inch.
299 23544 1 SECONDARY PLANETARY DRIVE SUB-ASSEMBLY
300 23538 1 PLANET HUB FINAL
310 20406 3 PLANET PIN M25 FINAL
311 25199 6 CIRCLIP ROTOR CLIP SH-168
320 23536 3 PLANET GEAR HLV30 FINAL
321 25167 6 THRUST WASHER TORRINGTON # TRB 2840
323 25297 72 LOOSE ROLLER TORRINGTON # 024054
300
311
321
323
320
321
311
310
354 REV.030819
