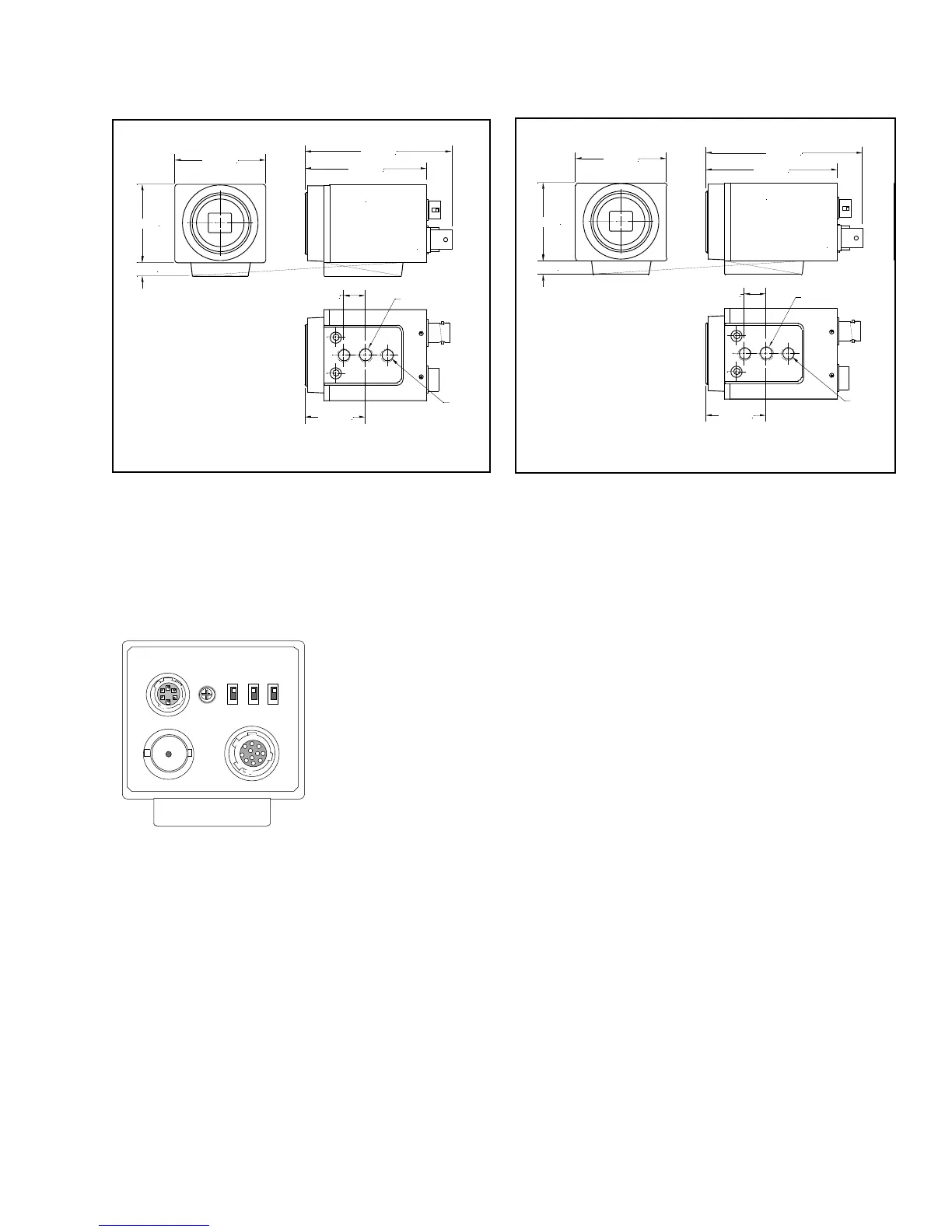

SECTION 3 PHYSICAL DIMENSIONS
TM-7CN/TM-6CN TM-7EX/6EX
SECTION 4 CAMERA SYSTEM ACCESSORIES
4.1 12-PIN CONNECTOR
12-PIN # TM-7CN TM-7EX
1 GND GND
2 +12VDC +12V DC
3 GND GND
4 Video VIDEO
5 N/C N/C
6 SYNC OUT VINIT
7 CLK OUT VD IN
8 GND GND
9 VINIT HD IN
10 N/C N/C
11 N/C INT CONT
12 N/C N/C
6-PIN CONNECTOR PINOUT
PIN # FUNCTION
1D2
2 GND
3 IRIS
4 +12V (5V OPTION)
5D0
6D1
6
PPUULLNNiiXX
45.8 mm
39.4 mm
73.9 mm
1/4-20 UNC-2B
2x M3x1
TTMM--77 CCNN
7.0 mm
30.4 mm
2X 11.0 mm
61.3 mm
PPUULLNNiiXX
45.8 mm
39.4 mm
78.9 mm
1/4-20 UNC-2B
2x M6x1
TTMM--77 EEXX
7.0 mm
30.4 mm
2X 11.0 mm
66.3 mm
