1-4-5. Power Transportation part
[1] Features
• Transportation part work by single MOTOR and power for Bill separation
part is transferred & controlled by CLUTCH

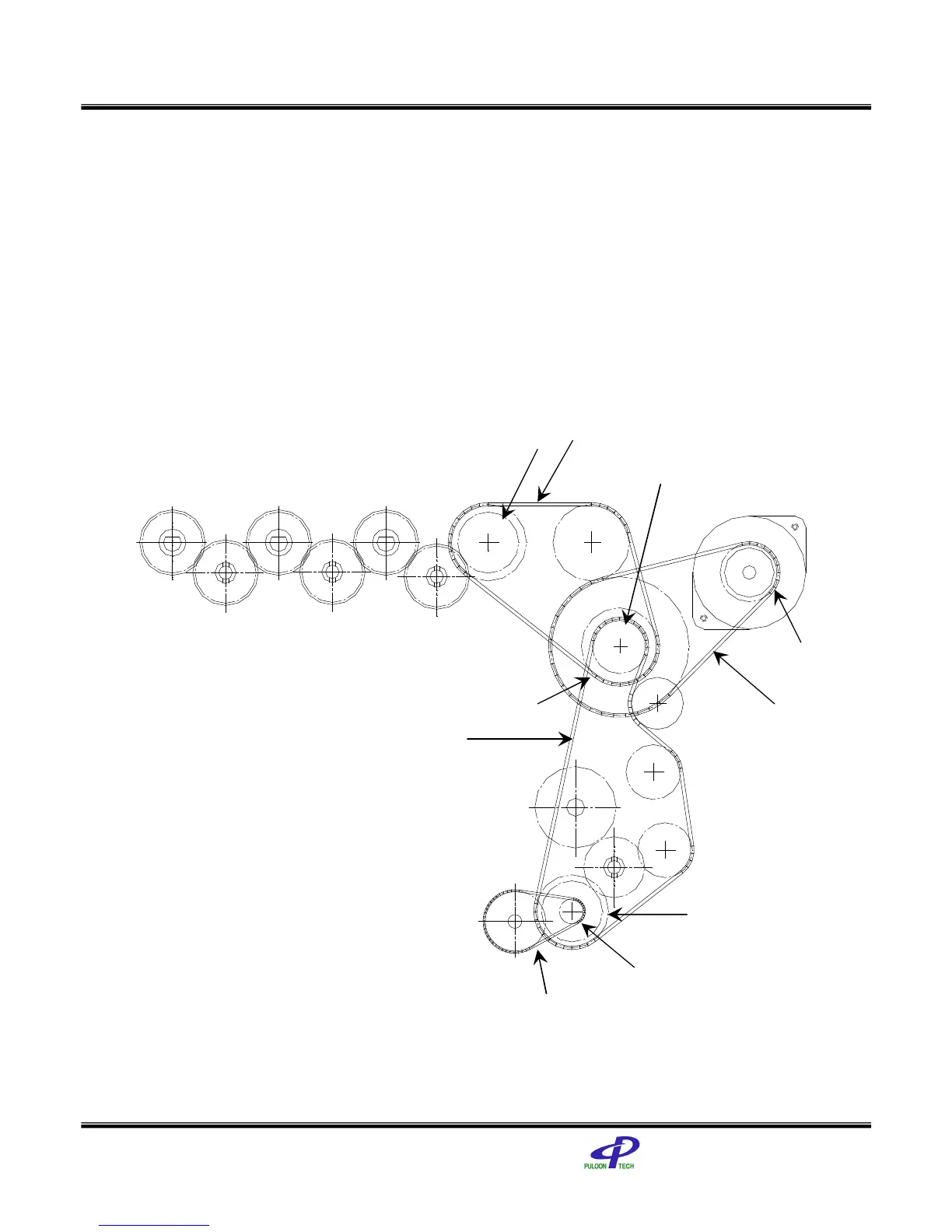

[2] Constitution
G1 G1 G1
G1
P3
G2
P4
P1
P4
P4
P3
P2
P5
MOTOR
G2 G2
P3
T3
T1
T2
T4
CLUTCH
P7
P6
